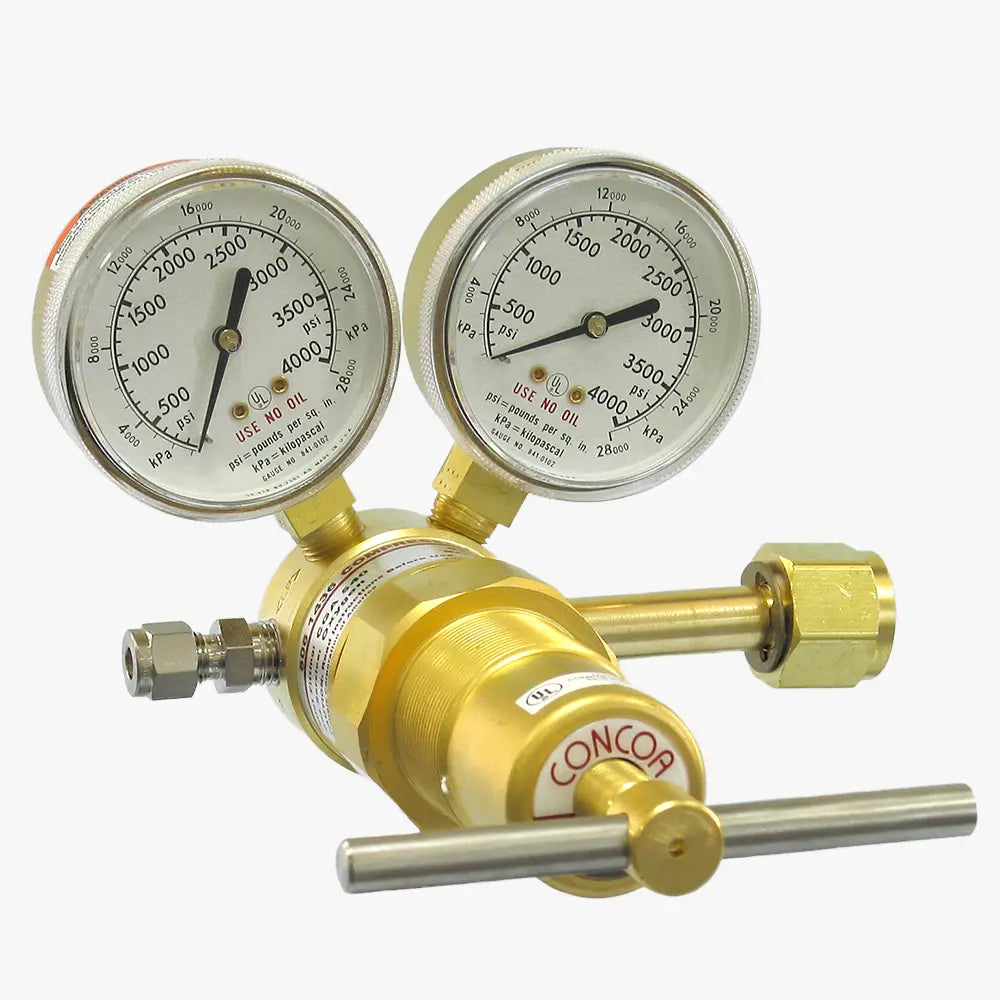

CONCOA 8061461-01-1 | 1400 Series Ultra-High Pressure Regulator | Inert Gas, CGA 677, 1500 PSIG Outlet
Part Number : 8061461-01-1
CONCOA 8061461-01-1 is a 1400 Series ultra-high pressure regulator configured for inert gas service, with a CGA 677 inlet rated to 6000 PSIG (415 BAR) and delivery up to 1500 PSIG (100 BAR). The CGA 677, 1500 PSIG build uses a PEEK seat and gauges reading 0-4000 PSIG and 0-10,000 PSIG.
- Brass barstock body, bonnet and piston
- CAPSULE® seat design with a positive seat stop
- FKM piston seals for accurate pressure control
- 1/4 in 316L stainless steel outlet tube
For pricing, please contact our experts.
