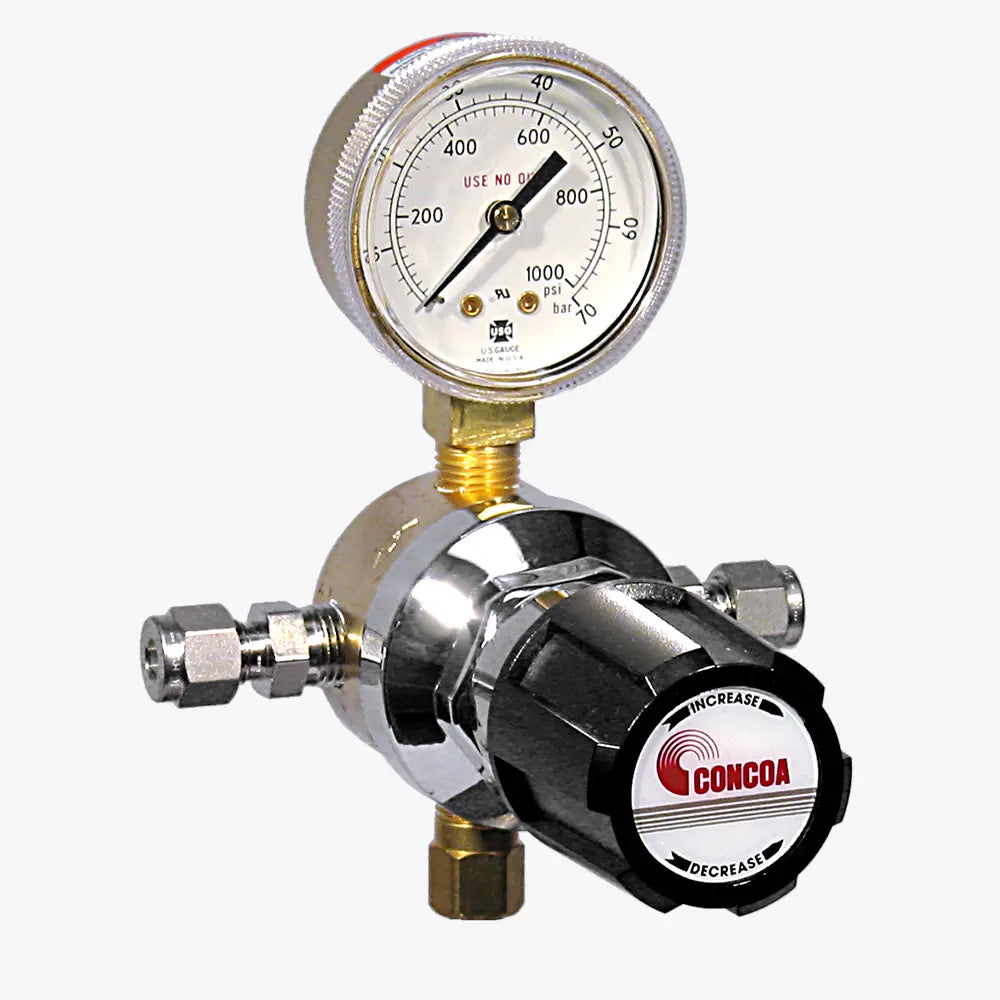

CONCOA 8065232-01-1 | 5230 Series Resonator Regulator | 250 PSIG Max Delivery, Laser Gases
Delivering up to 250 PSIG (17 BAR), the 8065232-01-1 resonator regulator carries a 0-400 PSIG/0-27 BAR outlet gauge. CONCOA designed the 5230 Series for primary pressure control of laser gases from liquid cylinders where some fluctuation is acceptable.
Key features
- CAPSULE seat design for reliability and easy maintenance
- Inboard diffusion blocked by a 316L stainless steel diaphragm
- 1/4 in stainless steel compression tube inlet and outlet
- Mounts through a rear panel
- Specifications
- Downloads
| Part Number | 8065232-01-1 |
| Brand | CONCOA |
| Series | 5230 Series Resonator Regulator |
| Body | Brass barstock |
| Seat | PTFE |
| Gas Service | Non-corrosive laser gases |
| Max Inlet Pressure | 3000 PSIG (210 BAR) |
| Max Delivery Pressure | 250 PSIG (17 BAR) |
| Diaphragm | 316L stainless steel |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cv | 0.2 |
| Outlet Gauge | 0-400 PSIG/0-27 BAR |
| Inlet/Outlet Connections | 1/4 in stainless steel compression tube fittings |
| Weight | 2.8 lbs (2.16 kg) |
