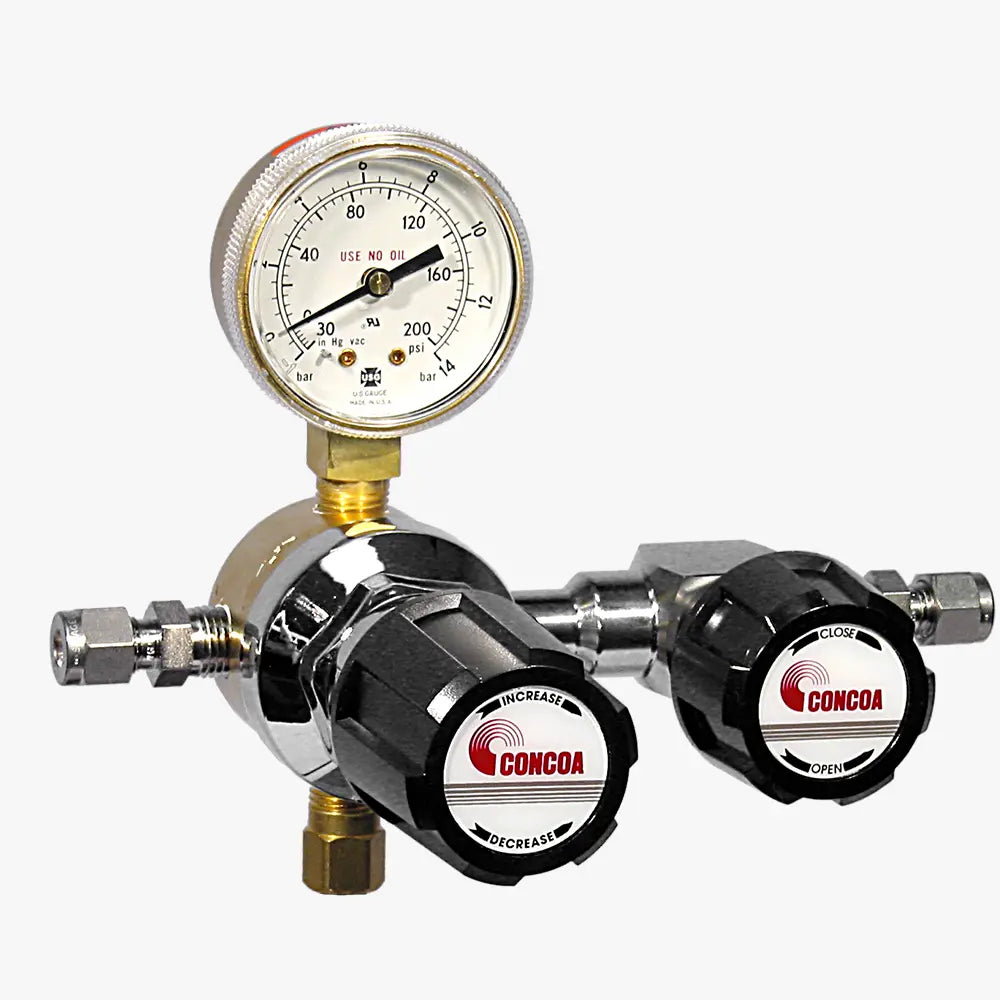

CONCOA 8065239-01-1 | 5239 Series Beam Purge Regulator | Nitrogen, Regulator and Diaphragm Valve
Part Number : 8065239-01-1
CONCOA 8065239-01-1 is a 5239 Series beam purge assembly for nitrogen, combining a regulator and an integral diaphragm valve. It taps the low pressure port of a 623 laser assist gas system, or any high flow nitrogen source, to purge the beam path of a CO2 industrial laser. Its gauge reads 30VAC-0-200 PSIG/-1VAC-0-14 BAR.
Key features
- 316L stainless steel diaphragm guards against inboard diffusion
- Helium leak checked by spectrometer
- Stainless steel compression tube outlet for leak-tight joints
- 10-micron internal filter limits contamination
- Delivery up to 100 PSIG (7 BAR)
For pricing, please contact our experts.
