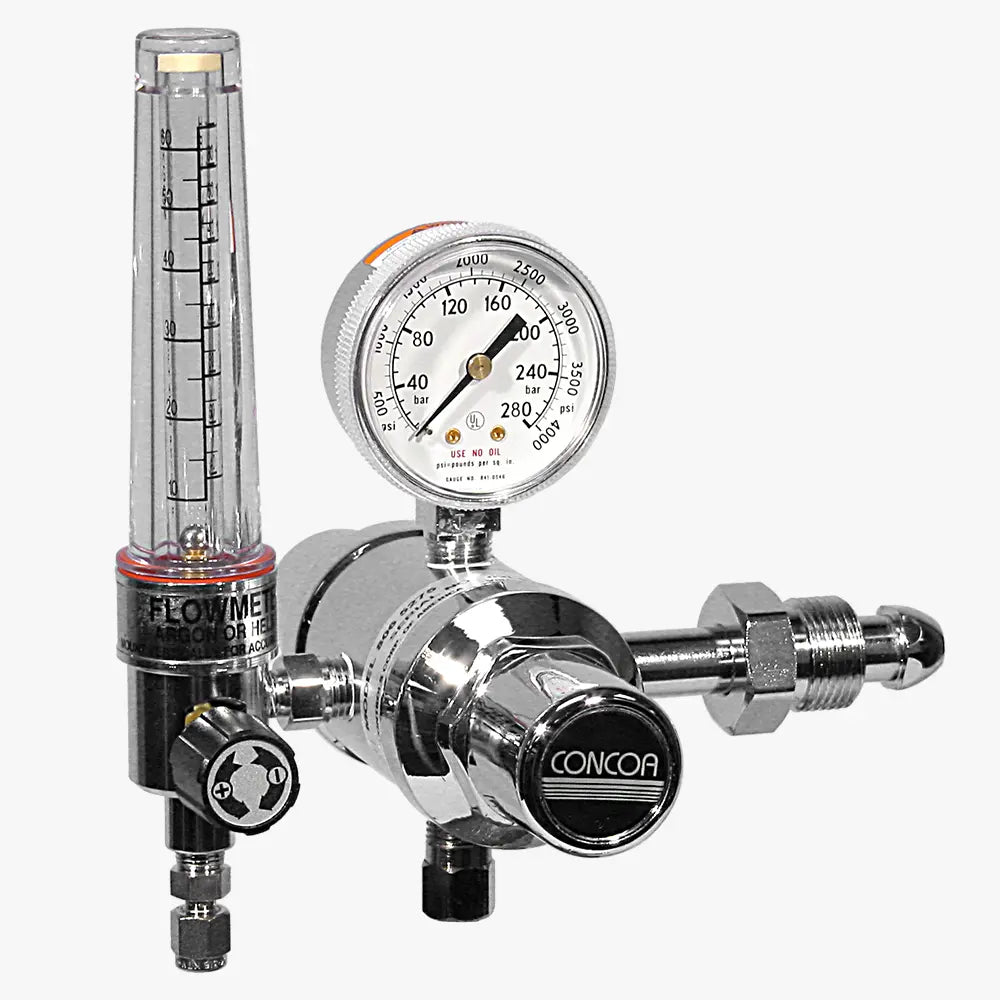

CONCOA 8065275-01-1 | 5270 Series Laser Cylinder Regulator | CGA 580, 3000 PSIG, Single Flowmeter
CONCOA 8065275-01-1 is a 5270 Series cylinder regulator with a CGA 580 inlet, PTFE seat and 3000 PSIG (210 BAR) inlet rating. A single 10-60 SCFH argon/30-200 SCFH helium flowmeter and a 0-4000 PSIG/0-280 BAR inlet gauge set and monitor laser welding gas flow.
Key features
- Preset 30 PSIG (2 BAR) delivery pressure
- Serves both CO2 and fibre laser welding
- 316L stainless steel diaphragm prevents inboard diffusion
- Stainless steel 1/8 in compression tube outlet
- Specifications
- Downloads
| Part Number | 8065275-01-1 |
| Brand | CONCOA |
| Series | 5270 Series Cylinder Regulator |
| Body | Chrome-plated brass barstock |
| Seat | PTFE |
| Gas Service | Argon, helium |
| Inlet Connection | CGA 580 |
| Max Inlet Pressure | 3000 PSIG (210 BAR) |
| Outlet Connection | 1/8 in stainless steel compression tube fitting |
| Diaphragm | 316L stainless steel |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Preset Delivery Pressure | 30 PSIG (2 BAR) |
| Flowmeter/Pressure Gauge | 10-60 SCFH Argon/30-200 SCFH Helium Flowmeter and 0-4000 PSIG/0-280 BAR Inlet Gauge |
