CONCOA 8065681-01-1 | 5600 Series Cylinder Regulator | Hydrogen, CGA 350, 40 PSIG Outlet
Part Number : 8065681-01-1

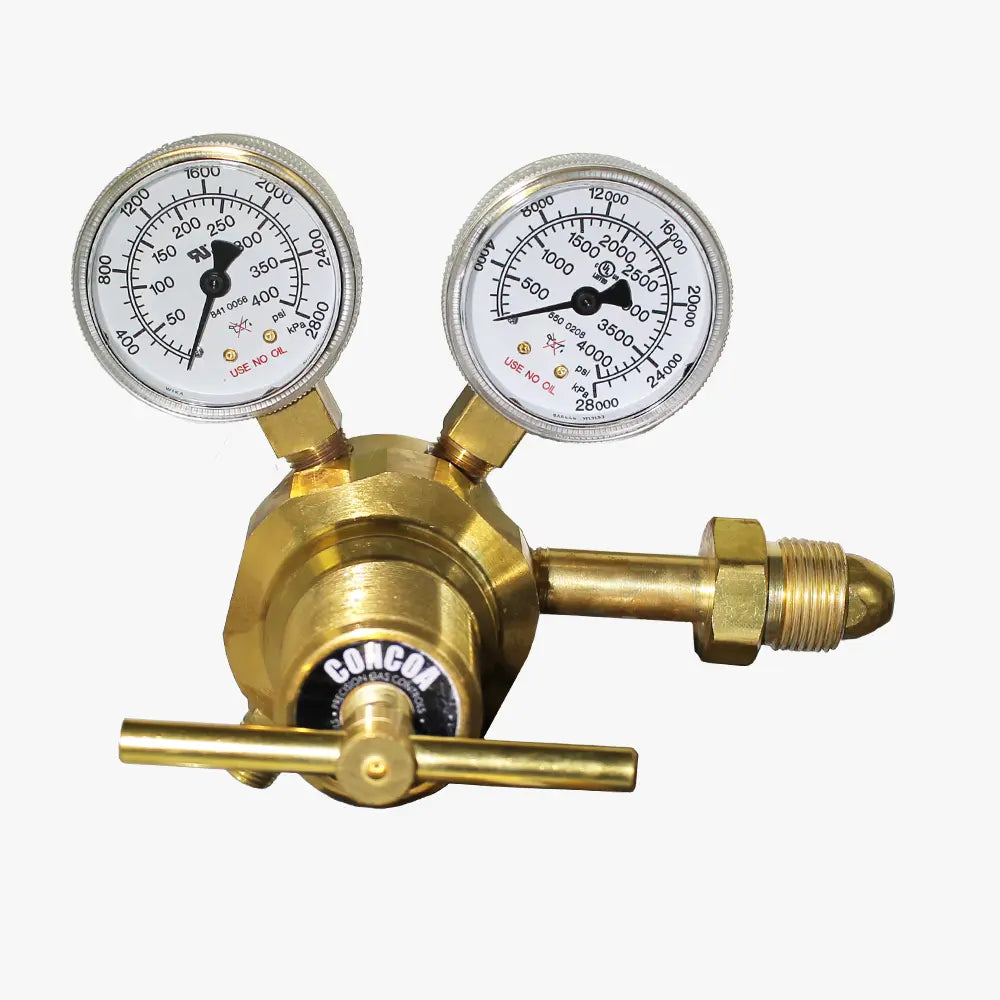

The CONCOA 8065681-01-1 cylinder regulator from the 5600 Series handles hydrogen at up to 3000 PSIG (210 BAR) inlet, set by a CGA 350 connection. Its outlet is 9/16 in -18 (B) LH Ext, with maximum delivery 40 PSIG (3 BAR) and 0-60 PSIG/0-400 kPa and 0-4000 PSIG/0-28,000 kPa gauges on 8065681-01-1. Typical use for 8065681-01-1 is cylinder pressure control in general welding, heating and cutting applications.
Key features
- Chloroprene diaphragm with PTFE seat on 8065681-01-1
- Medium-large seat displacement gives 8065681-01-1 high flow capacity
- Easy-service CAPSULE® seat on 8065681-01-1
- Cv 0.15 and 25-micron sintered bronze filter on 8065681-01-1
For pricing, please contact our experts.
