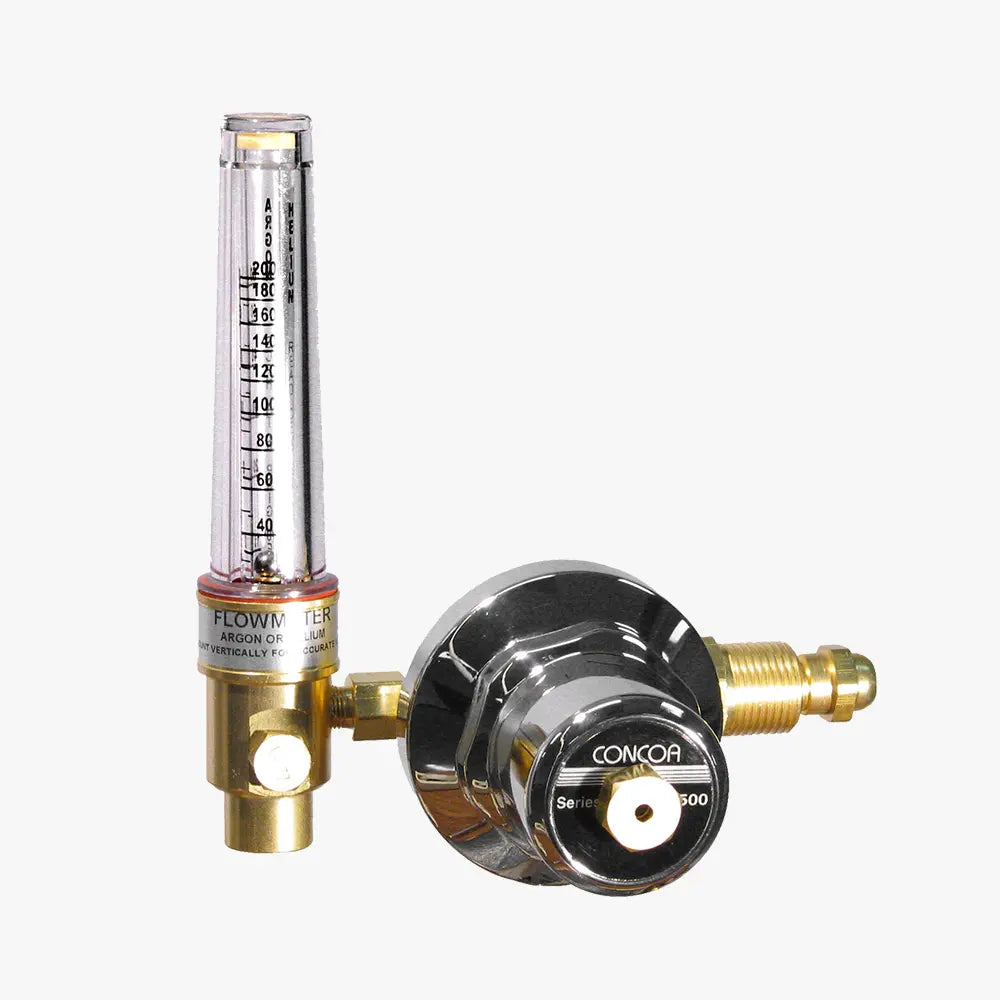

CONCOA 8066590-01-1 | 6590 Series Flowmeter Regulator | Gas-saver, Adjustable, Argon/Helium, Single Flowmeter
CONCOA 8066590-01-1 is a gas-saver, adjustable flowmeter regulator from the 6590 Series Flowmeter Regulator, set up for argon and helium. It is fitted with a 10-60 SCFH Argon/30-200 SCFH Helium flowmeter. Its gas-saver design keeps downstream pressure steady while welding to cut surges and wasted gas.
Key features
- A 200 PSIG (14 BAR) maximum inlet pressure, plus a CGA 034 inlet
- A 5/8 in -18 (B) RH Int outlet and a forged brass body
- A chrome-plated, die-cast zinc bonnet with a chloroprene diaphragm for steady pressure control
- A CAPSULE® seat design for easy maintenance, plus a 25-micron sintered bronze inlet filter
- Specifications
- Downloads
| Part Number | 8066590-01-1 |
| Brand | CONCOA |
| Series | 6590 Series Flowmeter Regulator |
| Body | Forged brass |
| Seat | PTFE |
| Gas Service | Argon, Helium |
| Max Inlet Pressure | 200 PSIG (14 BAR) |
| Bonnet | Chrome-plated, die-cast zinc |
| Diaphragm | Chloroprene |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Cv | 0.1 |
| Description | Gas-saver, Adjustable Flowmeter Regulator |
| Flowmeter | 10-60 SCFH Argon/ 30-200 SCFH Helium Flowmeter |
| Inlet Filter | 25-micron sintered bronze |
