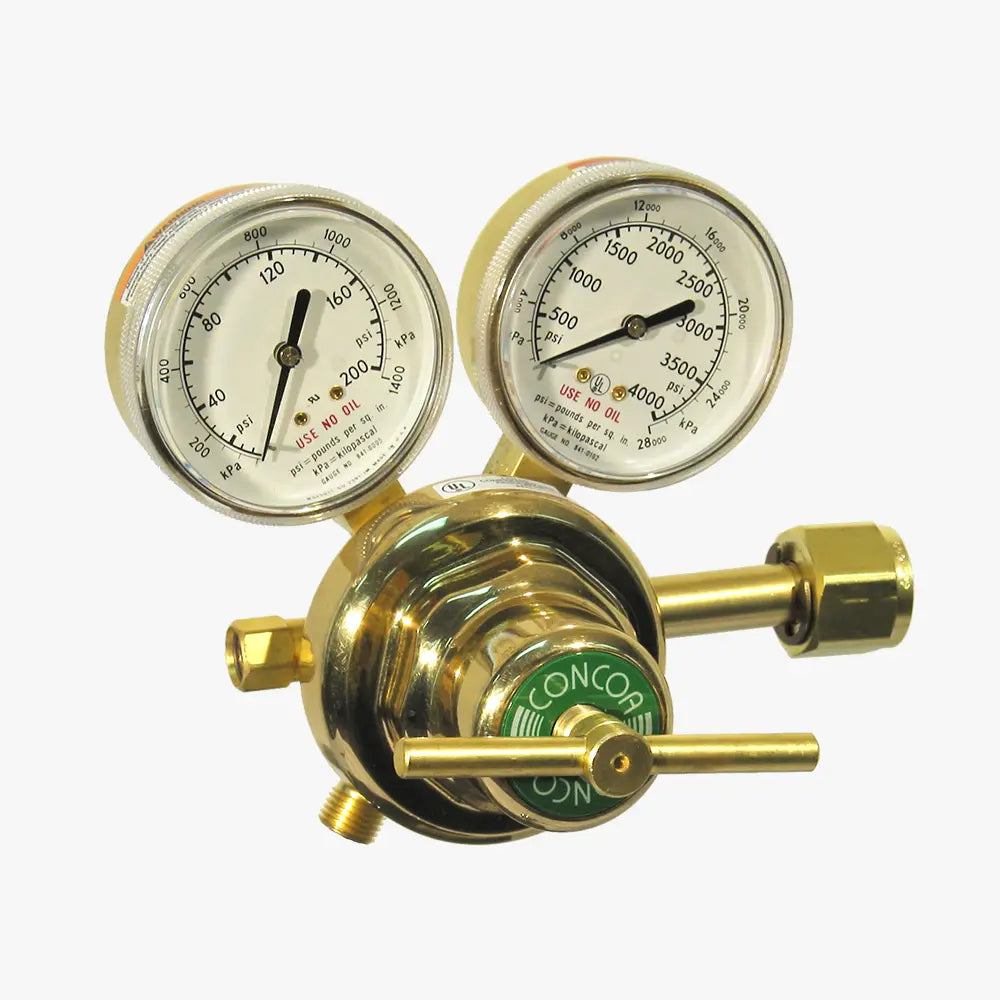

CONCOA 8066609-01-1 | 6600 Series Cylinder Regulator | Acetylene, CGA 510, 15 PSIG Delivery
Part Number : 8066609-01-1
Part 8066609-01-1 sets up the 6600 Series Cylinder Regulator for acetylene service, pairing a CGA 510 inlet with a 9/16 in -18 (B) LH Ext outlet connection. With a PTFE seat, this model accepts up to 300 PSIG (21 BAR) at the inlet and supplies up to 15 PSIG (1 BAR) downstream. Gauge scales: 0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- Medium-large seat displacement for high flow capacity and a 25-micron sintered bronze filter
- A CAPSULE® seat design for easy maintenance with a forged brass body and bonnet
- 2 1/2 in (63 mm) brass gauges and a heavy-duty machined brass bonnet
For pricing, please contact our experts.
