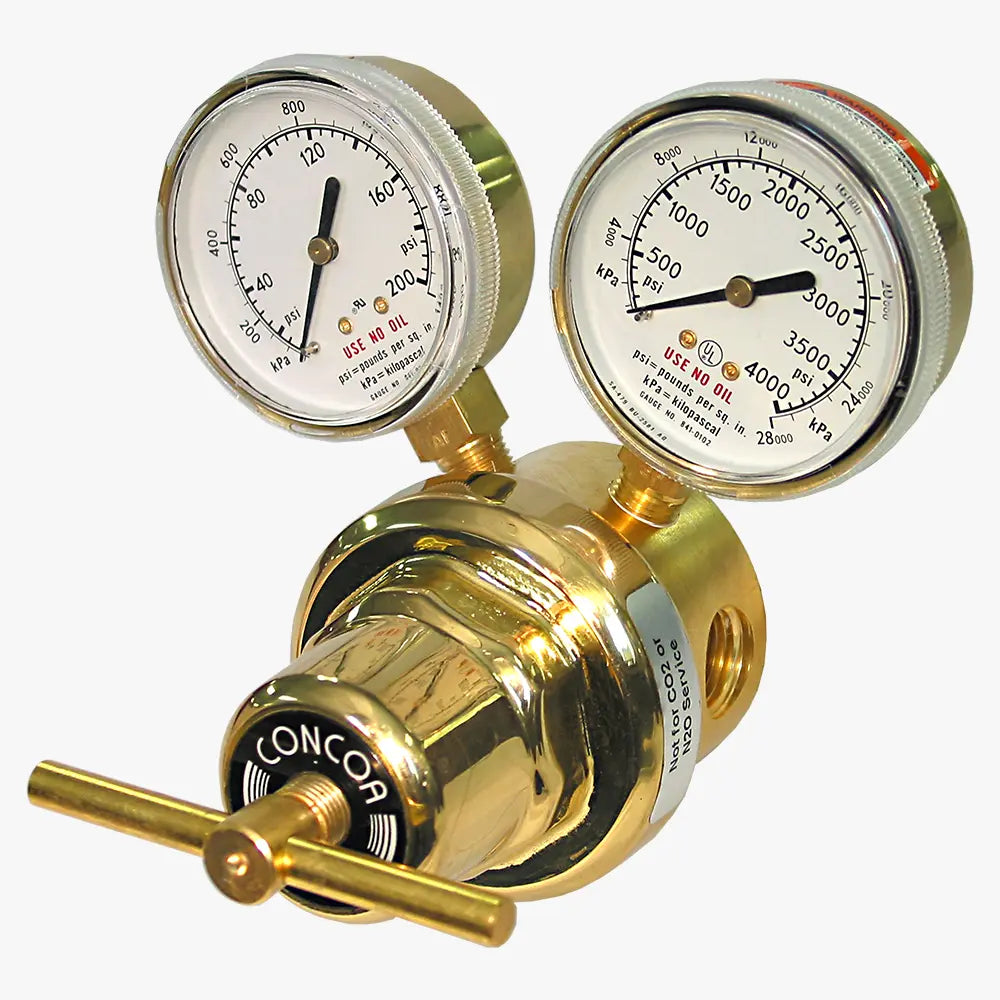

CONCOA 8066725-01-1 | 6700 Series Manifold Regulator | Inert Gas, 120 PSIG Delivery, RH Inlet
Part Number : 8066725-01-1
Part 8066725-01-1 is the RH-inlet 6700 Series manifold regulator set up for inert gas. Maximum delivery is 120 PSIG (8 BAR); the seat is FKM and the gauges read 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A balanced stem seat that steadies output as inlet pressure decays with 2 1/2 in (63 mm) brass gauges
- 1/2 in FNPT inlet and outlet ports, plus 1/4 in FNPT gauge and relief ports
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals, plus a body of brass barstock
- A rugged forged brass bonnet with a 40-micron 316L stainless steel filter
For pricing, please contact our experts.
