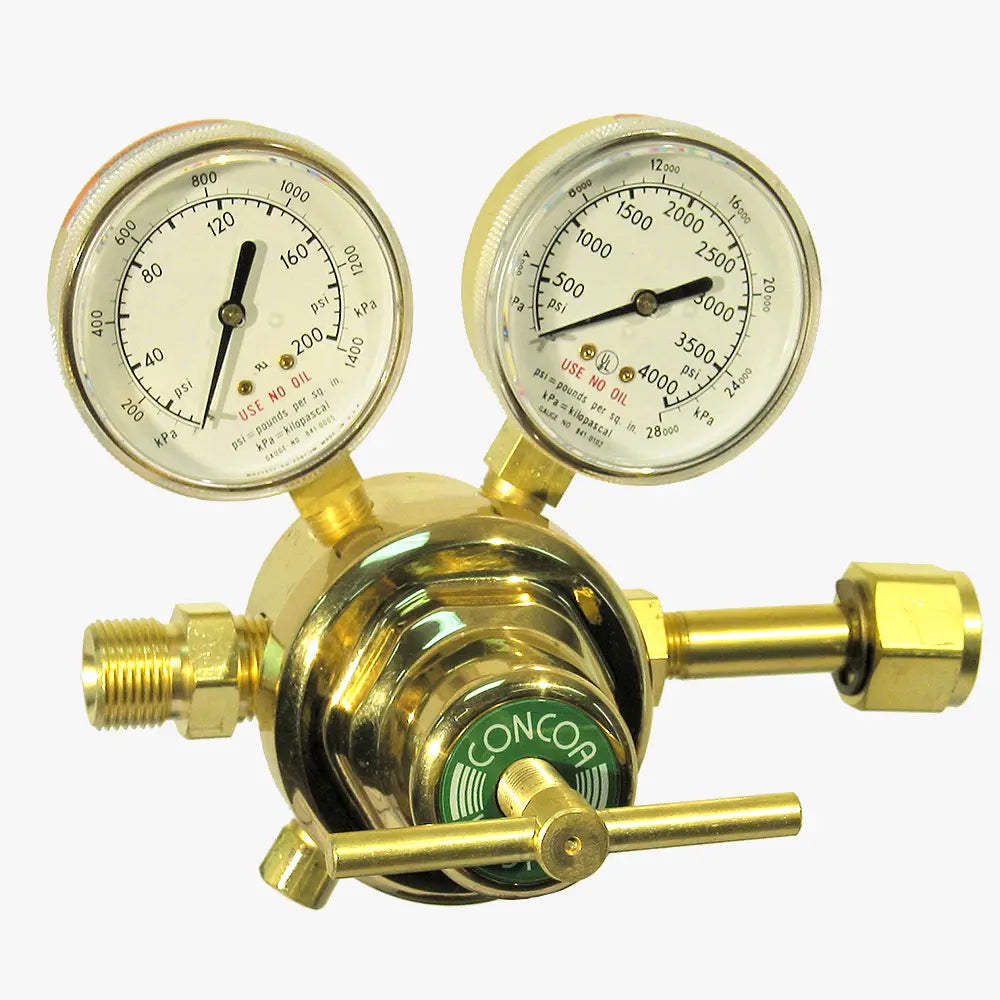

CONCOA 8066732-01-1 | 6700 Series Cylinder Regulator | Fuel Gas, CGA 510, 40 PSIG Delivery
Part Number : 8066732-01-1
Intended for fuel gas, CONCOA 8066732-01-1 connects to the cylinder through a CGA 510 inlet and passes gas on through a 7/8 in -14 (C) LH Ext outlet. Outlet pressure is adjustable up to 40 PSIG (3 BAR), with chloroprene as the seat material. On the 8066732-01-1 version, gauge scales are 0-60 PSIG/0-415 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- 2 1/2 in (63 mm) brass gauges and a Cv of 2.0
- An operating range of -40°F to 140°F (-40°C to 60°C) and a balanced stem seat that limits static increment
- CRN OF11809.2 registration, plus 1/2 in seat and inlet ports for very high flow
For pricing, please contact our experts.
