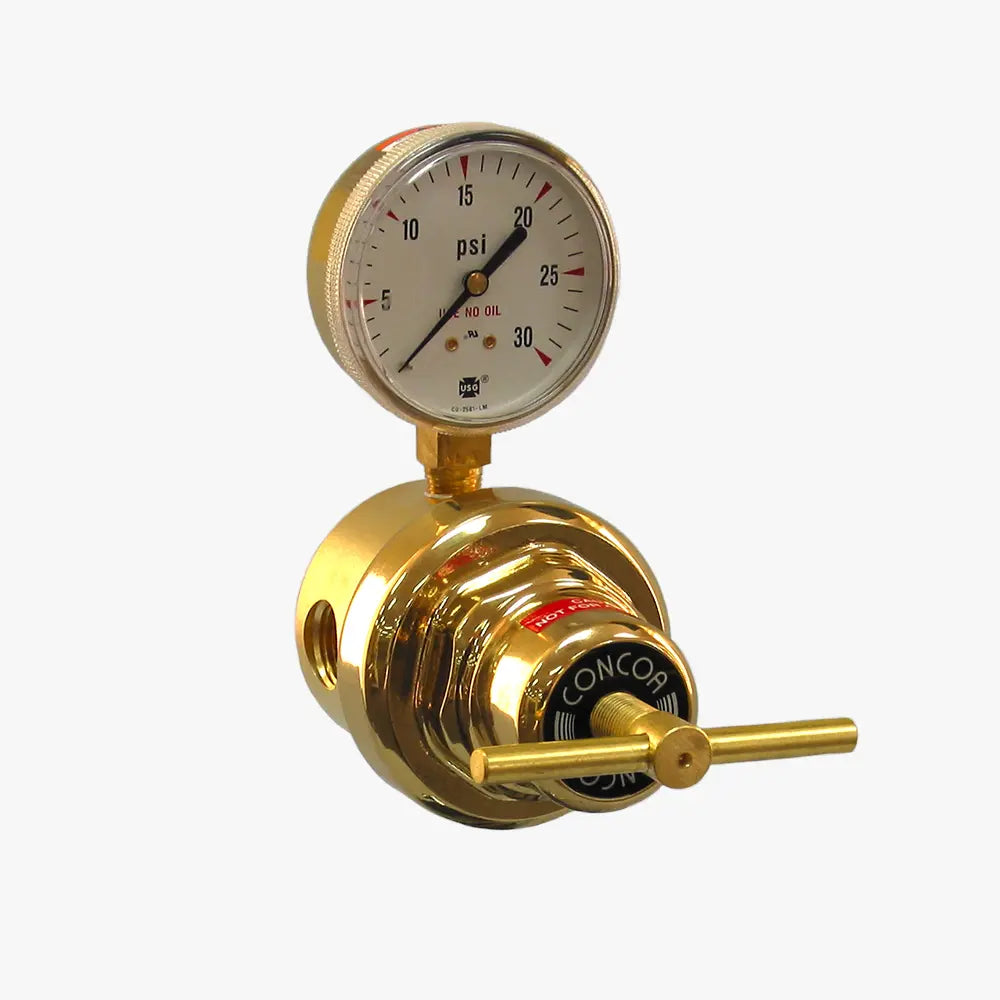

CONCOA 8066792-01-1 | 6790 Series Pipeline Regulator | chloroprene Seat, 40 PSIG Delivery, 1500 SCFH
CONCOA 8066792-01-1 | 6790 Series Pipeline Regulator | chloroprene Seat, 40 PSIG Delivery, 1500 SCFH
Part Number : 8066792-01-1
The CONCOA 8066792-01-1 pairs the 6790 Series high flow body with a chloroprene seat (not for use with oxygen). Rated for 1500 SCFH at up to 40 PSIG (3 BAR) delivery, it carries a 0-60 PSIG/0-400 kPa outlet gauge.
Key features
- 1/2 in FNPT inlet and outlet connections and a chloroprene diaphragm for steady pressure control
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals, plus a balanced stem seat that limits outlet swings from variable inlet pressure
- A brass barstock body and a forged brass bonnet built for durability
- A 40-micron 316L stainless steel filter with 2 1/2 in (63 mm) brass gauges
For pricing, please contact our experts.
