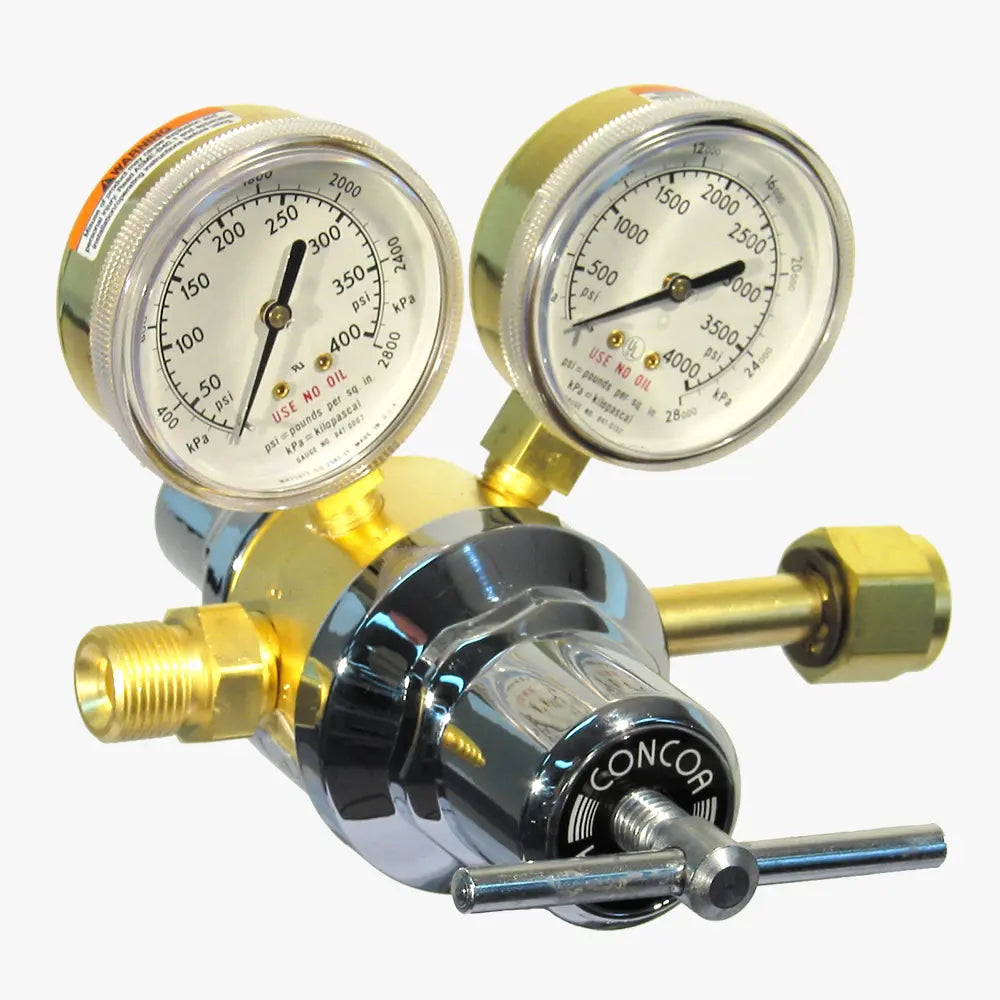

CONCOA 8066800-01-1 | 6800 Series Two Stage Manifold Regulator | Oxygen, CGA 540, 250 PSIG Delivery
Part Number : 8066800-01-1
Set up for oxygen, CONCOA 8066800-01-1 delivers up to 250 PSIG (17 BAR) and connects through a CGA 540 inlet and a 7/8 in -14 (C) RH Ext outlet. It uses a PTFE seat and a chloroprene diaphragm. Gauges read 0-400 PSIG (0-2800 kPa) and 0-4000 PSIG (0-28,000 kPa). The 8066800-01-1 is aimed at high-flow, heavy-duty heating and cutting set-ups fed from industrial gas cylinders.
Key features
- 1/2 in seat and outlet port for very high flow; brass barstock body
- Chrome-plated, die-cast zinc bonnet against corrosion, plus service temperature of -40°F to 140°F (-40°C to 60°C)
- 2 1/2 in (63 mm) brass gauges, alongside cleanliness to CGA G-4.1 or better
For pricing, please contact our experts.
