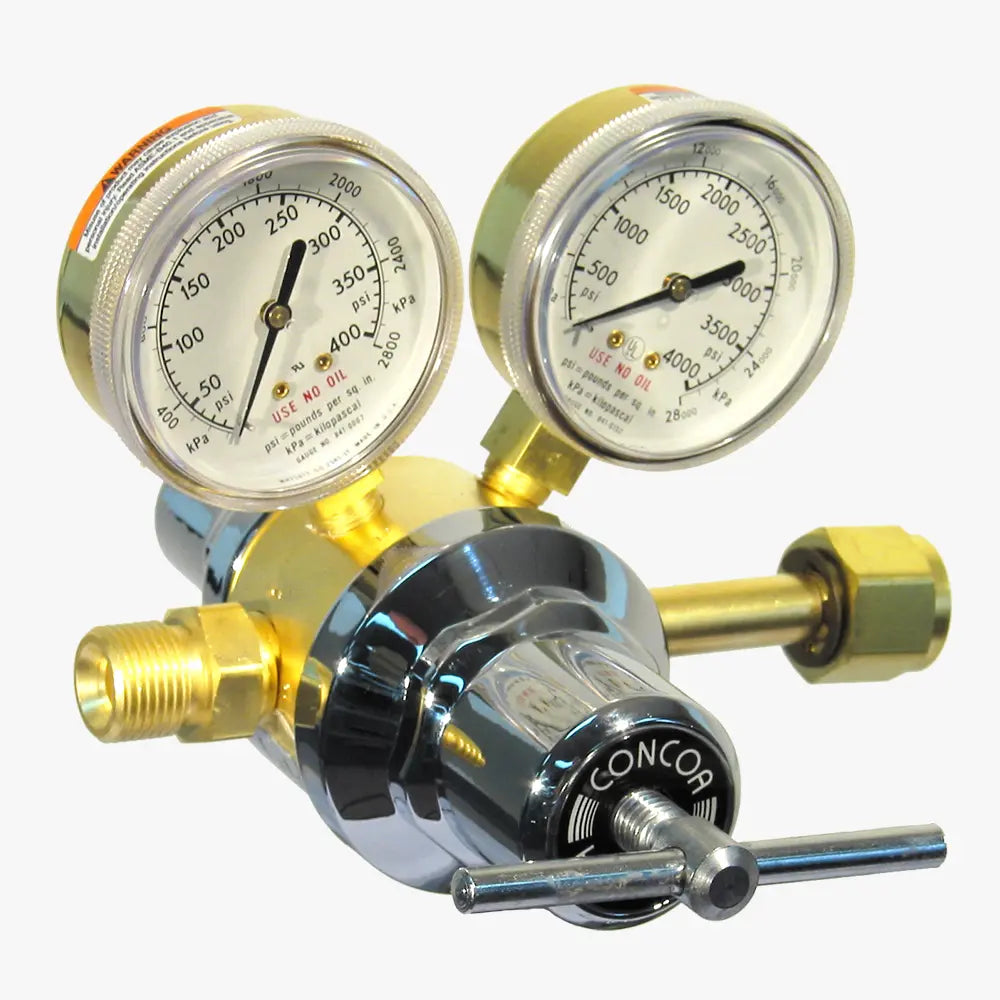

CONCOA 8066807-01-1 | 6800 Series Two Stage Manifold Regulator | Hydrogen/Methane, CGA 350, 250 PSIG Delivery
Part Number : 8066807-01-1
Set up for hydrogen and methane, CONCOA 8066807-01-1 delivers up to 250 PSIG (17 BAR) and connects through a CGA 350 inlet and a 7/8 in -14 (C) LH Ext outlet. For hydrogen and methane duty it is fitted with a PTFE seat and chloroprene diaphragm. For monitoring, the gauges span 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa. Typical duty for the 8066807-01-1 is primary pressure control in high-flow heating and cutting.
Key features
- 25-micron sintered bronze filter, plus 2 1/2 in (63 mm) brass gauges
- Service temperature of -40°F to 140°F (-40°C to 60°C), alongside 1/2 in seat and outlet port for very high flow
- Cv of 0.28 and chrome-plated, die-cast zinc bonnet against corrosion
For pricing, please contact our experts.
