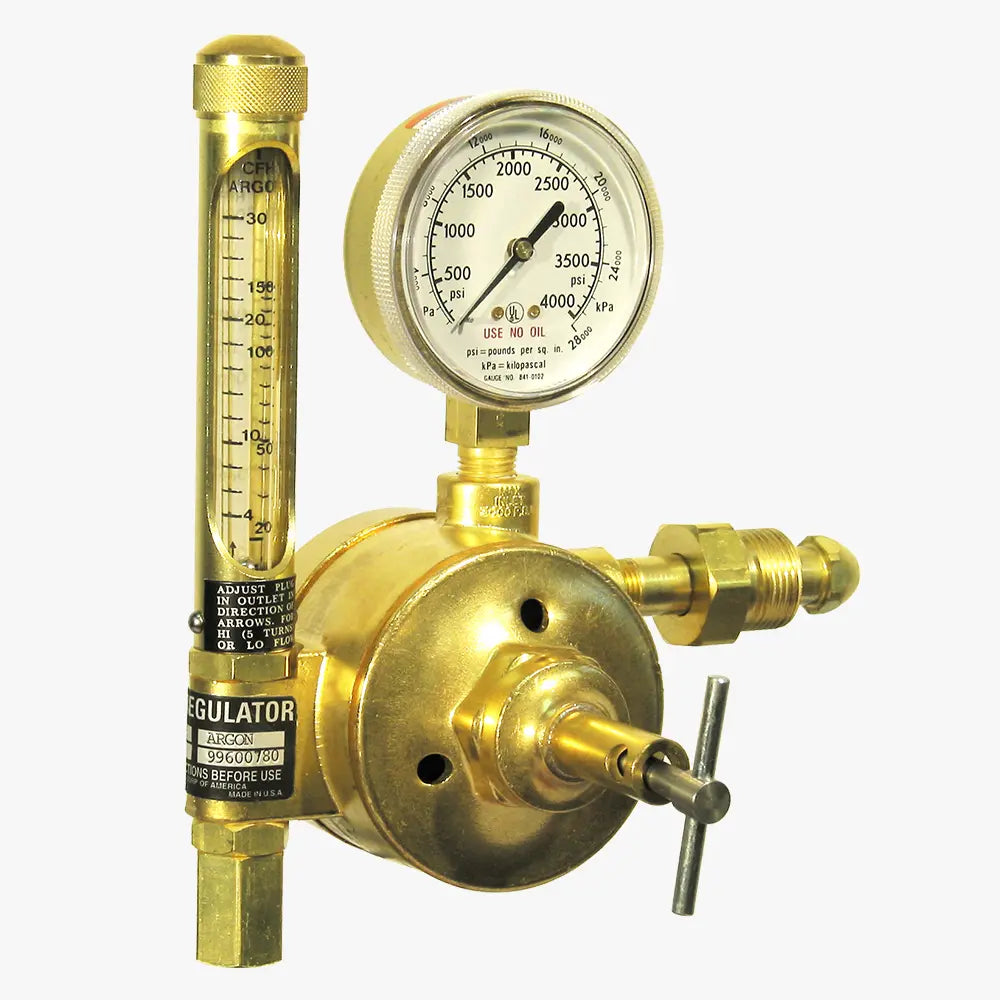

CONCOA 8069474-01-1 | 9400 Series Flowmeter Regulator | Argon, 4-30 SCFH and 20-150 SCFH
Calibrated for argon, CONCOA 8069474-01-1 combines a regulator with a Lower 4-30 SCFH/Upper 20-150 SCFH dual scale flowmeter; a 0-4000 PSIG/0-28,000 kPa gauge shows cylinder contents. Heavy-duty welding and blanketing are typical uses; it connects via CGA 580 in and 5/8 in -18 (B) RH Int out.
Key features
- Dual stage design for full use of the cylinder, plus forged brass body and bonnets
- Chloroprene diaphragm, alongside 3000 PSIG (210 BAR) maximum inlet
- Specifications
- Downloads
| Part Number | 8069474-01-1 |
| Brand | CONCOA |
| Series | 9400 Series Flowmeter Regulator |
| Body | Forged brass |
| Gas Service | Argon |
| Inlet Connection | CGA 580 |
| Max Inlet Pressure | 3000 PSIG (210 BAR) |
| Outlet Connection | 5/8 in -18 (B) RH Int |
| Filter | 25-micron sintered bronze |
| Diaphragm | Chloroprene |
| Temperature Range | -40 °F to 140 °F (-40 °C to 60 °C) |
| Flowmeter Scales | Lower 4-30 SCFH/Upper 20-150 SCFH |
| Cylinder Gauge | 0-4000 PSIG/0-28,000 kPa |
