CONCOA 9086000-01-100 | Laser Assist Gas Hose | 100 ft, 37° Female Flare Ends

Name: CONCOA 9086000-01-100 | Laser Assist Gas Hose | 100 ft, 37° Female Flare Ends
Brand: CONCOA
SKU: 9086000-01-100
Availability: InStock

Part Number : 9086000-01-100

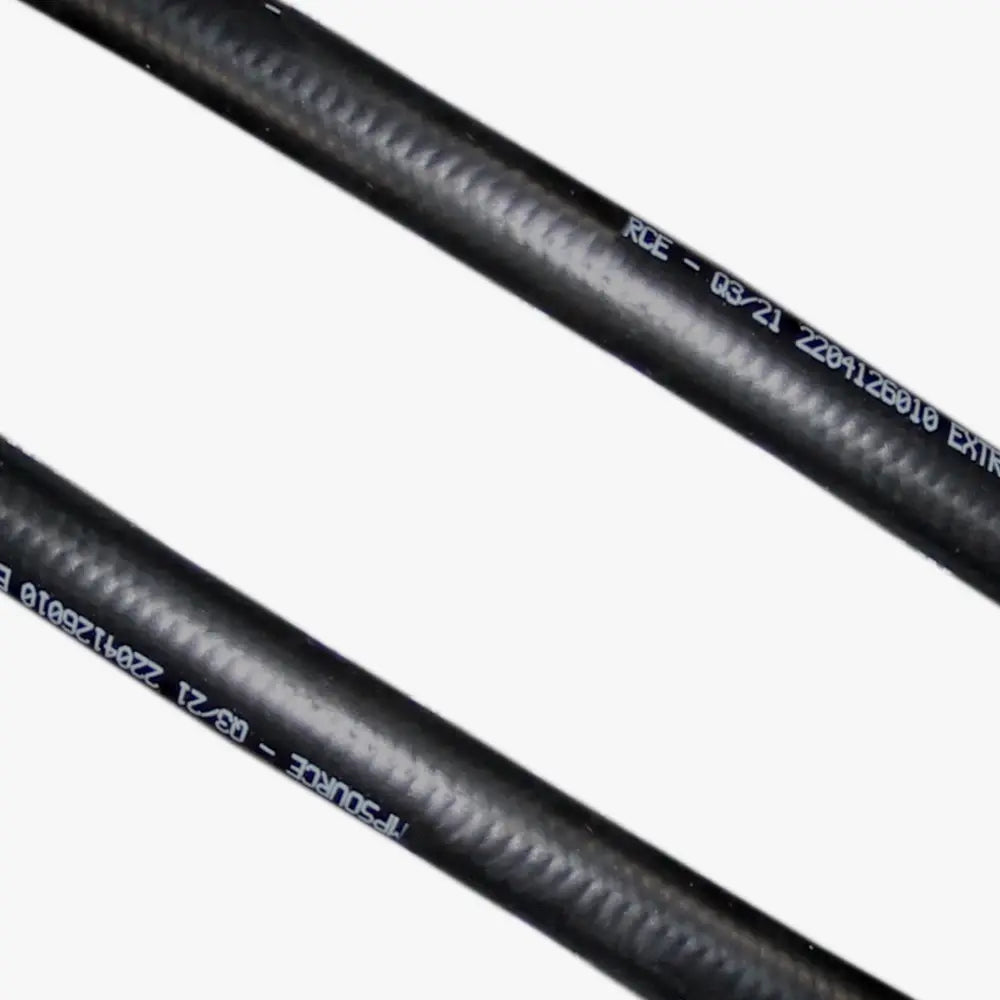

CONCOA 9086000-01-100 gives 100 ft (30.5 m) of laser assist gas hose, with a 37° female flare connection on both ends, 0.5 in bore and 0.81 in outside diameter.

A fibre-reinforced sleeve for longer impulse life without losing flexibility, plus a matte polyurethane cover with a low coefficient of friction
A 2000 PSIG (140 BAR) maximum working pressure, plus a 3 in (76 mm) minimum bend radius
A maximum operating temperature of 212°F (100°C), plus a nylon core for chemical resistance and a cleaner core tube
A fibre-reinforced sleeve for longer impulse life without losing flexibility, plus a 2000 PSIG (140 BAR) maximum working pressure

Availability: in stock

Specifications

Part Number	9086000-01-100
Brand	CONCOA
Series	Assist Gas Hose
Length	100 ft (30.5 m)
End connections	37° female flare (both ends)
Inner diameter	0.5 in
Outer diameter	0.81 in
Max working pressure (hose)	2000 PSIG (140 BAR)
Max operating temperature	212°F (100°C)
Minimum bend radius	3 in (76 mm)
Hose material	Nylon core, fibre-reinforced sleeve, polyurethane cover
