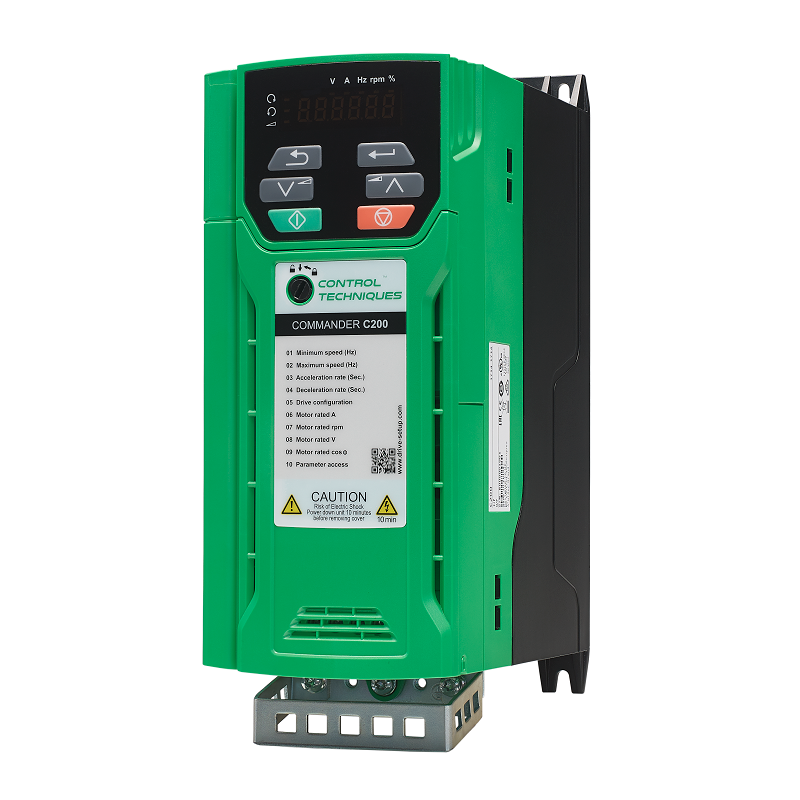

Control Techniques C200-05200250A | Commander C200 Variable Speed Drive | 5.5 kW, 3-Phase 200/240 V
C200-05200250A from Control Techniques is a 5.5 kW Commander C200 AC drive for three-phase 200/240 V AC installations, supplying up to 25 A continuously to the motor. As part of the Commander C series, the C200-05200250A is built for quick commissioning, with four parameters to set at start-up.
- 5.5 kW rating (7.5 hp) for 3-phase 200/240 V AC
- Maximum continuous output current: 25 A
- 0.5–590 Hz output frequency range on the 5.5 kW model
- IP21 enclosure, 365 x 143 x 192 mm, 7.4 kg
- Up to 180% overload for high-torque or heavy starting at 5.5 kW
- Plug-in options and an onboard PLC on C200-05200250A
- Specifications
- Features
- Downloads
| Part Number | C200-05200250A |
| Brand | Control Techniques |
| Series | Commander C200 |
| Max Continuous Current | 25 A |
| Supply | Three-phase 200/240 V AC |
| Supply Frequency | 50/60 Hz |
| Output Frequency Range | 0.5–590 Hz |
| Enclosure | IP21 |
| Dimensions | 365 x 143 x 192 mm (14.4 x 5.6 x 7.6 in) |
| Weight | 7.4 kg (16.3 lb) |
| Motor Shaft Power | 5.5 kW / 7.5 hp |
| Overload | Up to 180% |
| Commissioning | 4 parameters to start |
- Adaptable to your application
- Integrated functional safety
- On-board PLC
- Compact design
- Super quick start-up
- Flexible connectivity
- Worldwide availability and outstanding service
