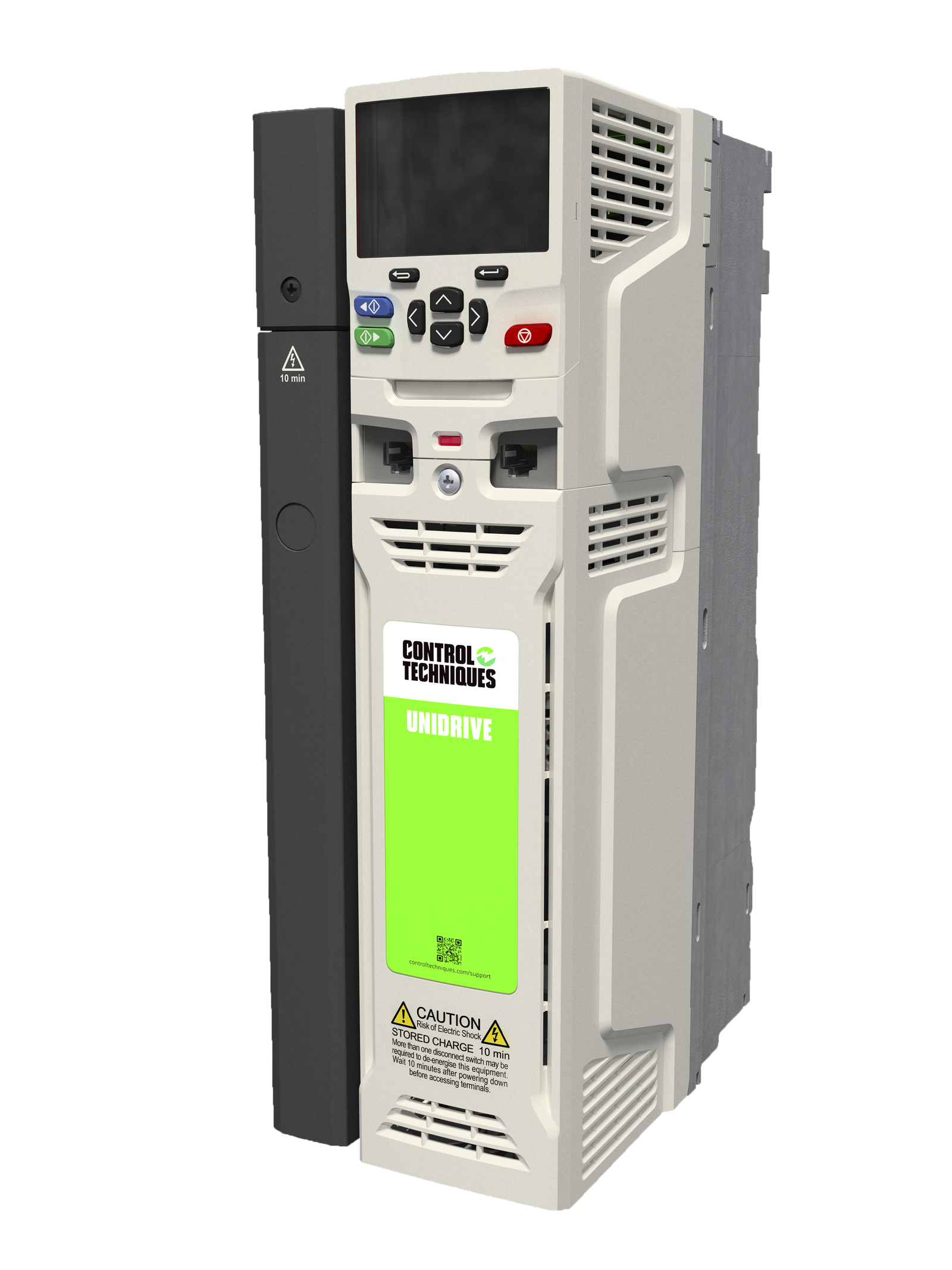

Control Techniques M000-12407200TU0100AB100 | HIGH POWER MODULAR DRIVES
Genuine Control Techniques M000-12407200TU0100AB100 High Power Modular Drive, in stock at General Tech Services LLC, UAE. Module Rating: 500 kW / 700 hp (Frame 12); Max Continuous Output Current: 903 A; Parallel System Capacity: Up to 2.8 MW / 4,200 hp. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
Part No. M000-12407200TU0100AB100 | 500 kW / 700 hp (Frame 12)
Control Techniques' modular drive offering provides system integrators with a flexible solution for building compact, dependable high-power drive systems. Individual modules can be connected in parallel to control permanent-magnet and asynchronous motors in systems up to 2.8 MW (4,200 hp).
This 500 kW (700 hp) Frame 12 module allows system builders to develop high-power solutions with fewer components, helping minimise panel footprint and overall system complexity. Modules can be paralleled into Active Front End or multi-pulse rectifier configurations and are driven by M700, M701, M702, M600, Pump Drive F600 or HVAC Drive H300 controllers.
Key Benefits
- 500 kW (700 hp) Frame 12 module for high-power applications
- Supports parallel systems up to 2.8 MW (4,200 hp)
- Compatible with M700, M701, M702, M600, F600 and H300 controllers
- Supports Active Front End and multi-pulse rectifier configurations
- Suitable for demanding permanent-magnet and asynchronous motor applications
- Genuine Control Techniques build quality for industrial applications
Who This Product Is Best For
- System integrators designing multi-megawatt drive systems for large motors
- Panel builders developing Active Front End or multi-pulse rectifier configurations
- Industrial plants operating large permanent-magnet or asynchronous motors
- Engineering teams requiring scalable, modular high-power drive solutions
How to Specify & Commission It
- Confirm the M000-12407200TU0100AB100 module rating matches the motor's voltage, current and power requirements.
- Confirm the required controller and parallel configuration for the complete drive system.
- Mount the module in a suitably ventilated panel or enclosure according to the manufacturer's installation guide.
- Wire the supply, motor and control/communication connections, then configure the controller and complete system commissioning.
- Verify motor, protection and system settings before handing the installation over.
Frequently Asked Questions
What is the M000-12407200TU0100AB100?
It is a 500 kW (700 hp) Frame 12 high-power modular drive module designed for use within larger modular drive systems.
Is this a complete standalone drive?
No. This is a power module designed to operate with compatible Control Techniques controllers, including the M700, M701, M702, M600, F600 and H300.
How large a system can these modules support?
Multiple modules can be connected in parallel for systems supporting up to 2.8 MW (4,200 hp).
What is the maximum continuous output current?
The maximum continuous output current is 903 A.
What configurations can the modular system support?
The modules can be used in Active Front End and multi-pulse rectifier configurations, depending on the overall system design.
What type of motors can the system control?
The modular drive system can be used with permanent-magnet and asynchronous motors.
Who typically specifies this type of modular drive?
System integrators, panel builders and industrial engineering teams designing high-power drive systems where modular configuration and scalability are required.
For pricing or to place an order, contact General Tech Services LLC. Call +971 6 5436933.
