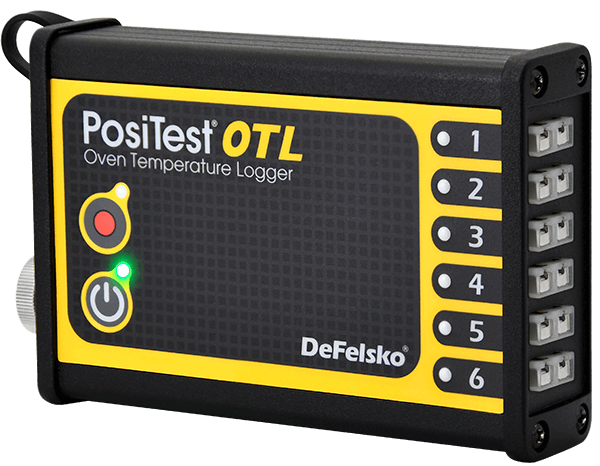

DeFelsko OTLKITXT | PosiTest OTL XT Oven Temperature Logger Kit | Holder XT, 100 min at 300 °C
The DeFelsko OTLKITXT is the PosiTest OTL XT kit, which adds the enhanced Holder XT with heatsink for longer endurance at high temperatures. With the barrier box it can stay in the oven for 300 minutes at 150 °C and 100 minutes at 300 °C, a temperature the standard kit does not cover. It records six K-type thermocouple channels for cure and oven profile analysis.
- Run time with Holder XT: 300 min at 150 °C, 200 min at 200 °C, 140 min at 250 °C, 100 min at 300 °C
- Six K-type channels, -100 to 1000 °C, ±0.5 °C logger accuracy
- Up to 40,000 datasets in 6 batches
- Kit weight 11 kg

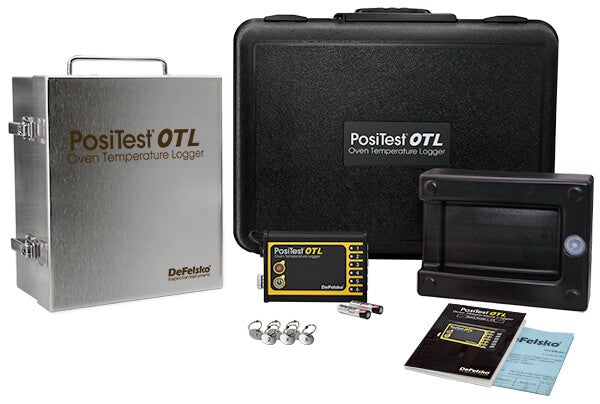

- Includes barrier box, probe ID tags, carrying case and PosiSoft Desktop; probes sold separately
- Specifications
- Downloads
| Part Number | OTLKITXT |
| Brand | DeFelsko |
| Kit | Logger + barrier box + Holder XT |
| Channels | 6 K-type non-grounded thermocouples |
| Measurement Range | -100 to 1000 °C (-148 to 1832 °F) |
| Logger Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Memory | 40,000 datasets (240,000 readings), 6 batches |
| Sample Interval | 2 s fixed; max 22 h |
| Power | 2 AAA batteries |
| Weight | 11 kg with Holder XT |
| Endurance | 300 min @150 °C; 100 min @300 °C |
| Probes | Sold separately |
