DeFelsko PRBN45S | PosiTector 6000 N45S Probe Only | Non-Ferrous, 0–625 µm, 45° Microprobe
Part Number : PRBN45S

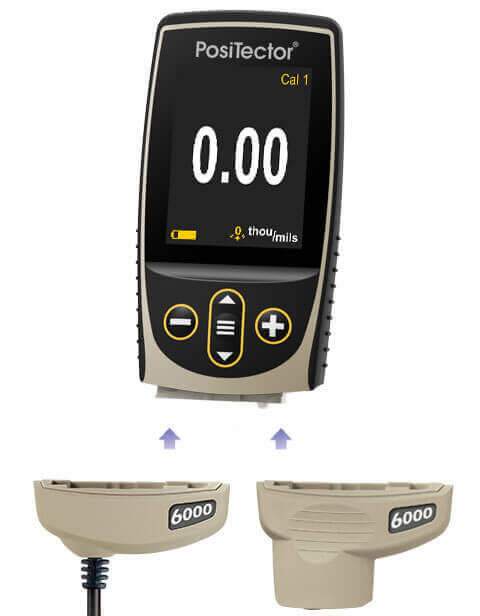

The DeFelsko PRBN45S is the PosiTector 6000 N45S probe, sold as the probe only, so a PosiTector gage body is required. It is a 45° cabled microprobe for thin coatings on small or angled non-ferrous parts, measuring coatings on aluminium, copper, titanium and other non-ferrous metals over a 0–625 µm (0–25 mils) range. Coating inspectors and QC staff fit it to an existing Standard or Advanced body, since every PosiTector body accepts every probe.
Key features
- Measuring range 0–625 µm (0–25 mils); accuracy ±(0.5 µm + 1%) 0–100 µm; ±(2 µm + 3%) >100 µm
- DeFelsko's smallest measuring tip, designed for thin films on small parts, near edges and in hard-to-reach areas
- 45° probe angle for awkward surfaces
- Certificate of Calibration traceable to NIST or PTB; the probe stores its own calibration for full interchangeability
For pricing, please contact our experts.
