DeFelsko PRBUTGCLF | PosiTector UTG CLF Probe Only | 2.25 MHz Low Frequency, 2 – 125 mm

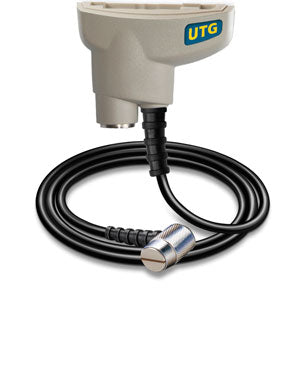

The DeFelsko PRBUTGCLF is the PosiTector UTG CLF ultrasonic probe (2.25 MHz dual element, cabled probe) supplied without a gage body. It is intended for thick or attenuative materials such as cast iron, cast aluminium and zinc, measuring wall thickness from one side on tanks, pipes and structures. Attach it to a PosiTector Standard or Advanced body to convert that body into an ultrasonic wall thickness gauge.
Key features
- Probe type: 2.25 MHz dual element
- Thru-paint capability: No
- Measuring Range: 2.00 – 125.00 mm (0.080 – 5.000 in)
- Accuracy ±0.03 mm (±0.001 in)
- Pre-programmed sound velocities for common materials; Min Scan mode records min/max thickness
- Sold as a probe only: requires a PosiTector Standard or Advanced gage body (not included)
- Specifications
- Downloads
| Part Number | PRBUTGCLF |
| Brand | DeFelsko |
| Transducer | 2.25 MHz dual element |
| Accuracy | ±0.03 mm (±0.001 in) |
| Probe Model | UTG CLF (Low Frequency) |
| Thru-Paint | No |
| Construction | Cabled probe |
| Standard | ASTM E797 |
| Measuring Range | 2.00 – 125.00 mm (0.080 – 5.000 in) |
| Supplied As | Probe only (gage body required) |
