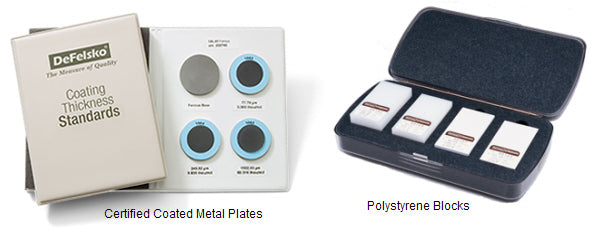

DeFelsko STDS2 | S2 Certified Coated Metal Plates | Steel, 0 to 1000 µm
Part Number : STDS2
Covering zero to 1000 µm (40 mils), the DeFelsko STDS2 is the S2 certified coated metal plate set on a steel (ferrous) substrate. DeFelsko lists it for PosiTector 6000 F0S, F45S, F90S and F90ES probes, plus PosiTest DFT Ferrous and Combo, giving inspectors a traceable way to check gauge accuracy as required by ISO and in-house quality procedures.
Key features
- Plate values (approx.): 0, 75 µm (3 mils), 250 µm (10 mils) and 1000 µm (40 mils)
- Coating/substrate: epoxy on steel (ferrous)
- Accuracy: ±0.43 µm (±0.017 mil)
- Four plates in a protective binder; plate diameter 38 mm (1.5 in), measurement area 25 mm (1 in)
- Individually serialised with a Certificate of Calibration traceable to NIST or PTB
- Labelled in metric and imperial units
For pricing, please contact our experts.
