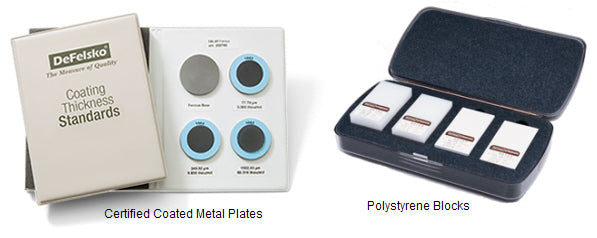

DeFelsko STDS3 | S3 Certified Coated Metal Plates | Steel, 0 to 100 µm
Part Number : STDS3
The DeFelsko STDS3 is the S3 certified coated metal plate set for thin coatings on steel, with plates from zero to 100 µm (4 mils). It is the set DeFelsko lists for PosiTest G and GM and the PosiPen, and because coated metal plates suit magnetic pull-off gauges, it can verify mechanical as well as electronic instruments.
Key features
- Plate values (approx.): 0, 15 µm (0.6 mils), 40 µm (1.6 mils) and 100 µm (4 mils)
- Coating/substrate: epoxy on steel (ferrous)
- Accuracy: ±0.43 µm (±0.017 mil)
- Four plates in a protective binder; plate diameter 38 mm (1.5 in), measurement area 25 mm (1 in)
- Individually serialised with a Certificate of Calibration traceable to NIST or PTB
- Labelled in metric and imperial units
For pricing, please contact our experts.
