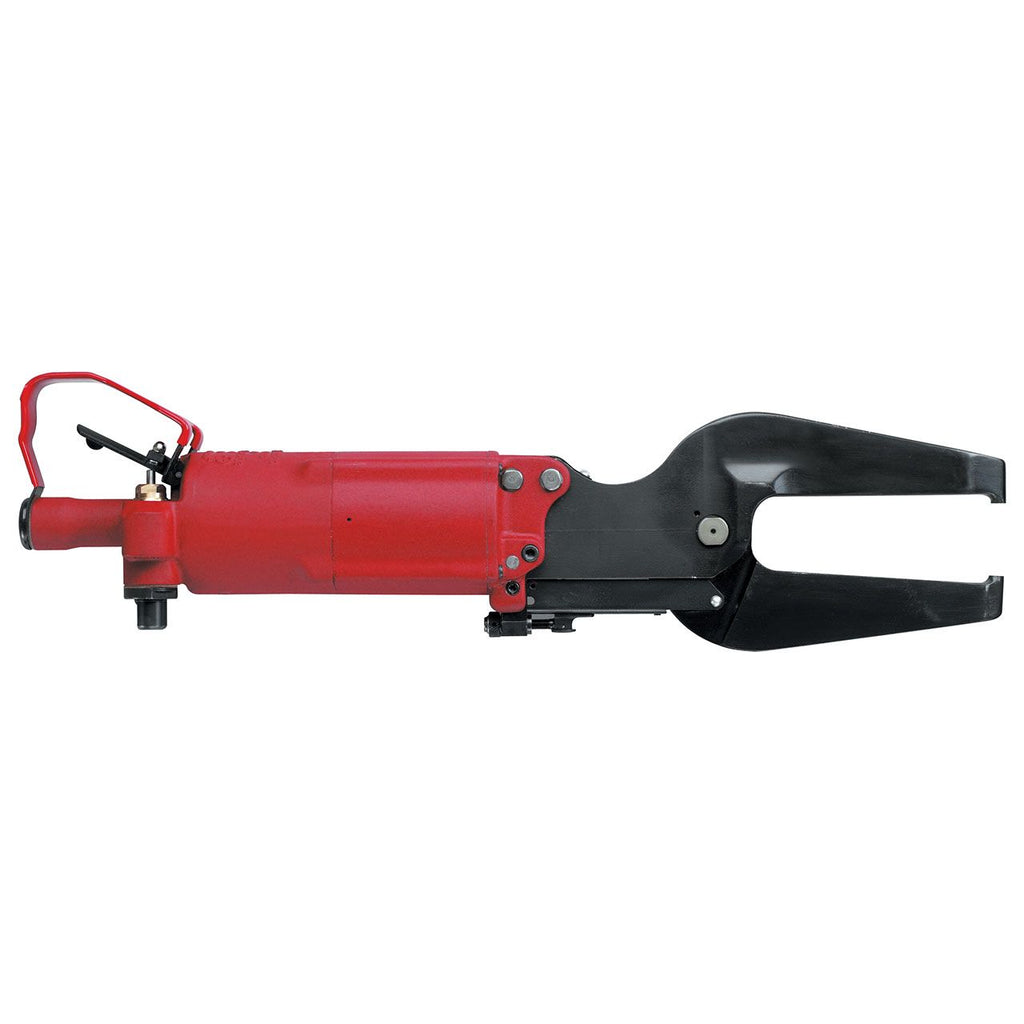

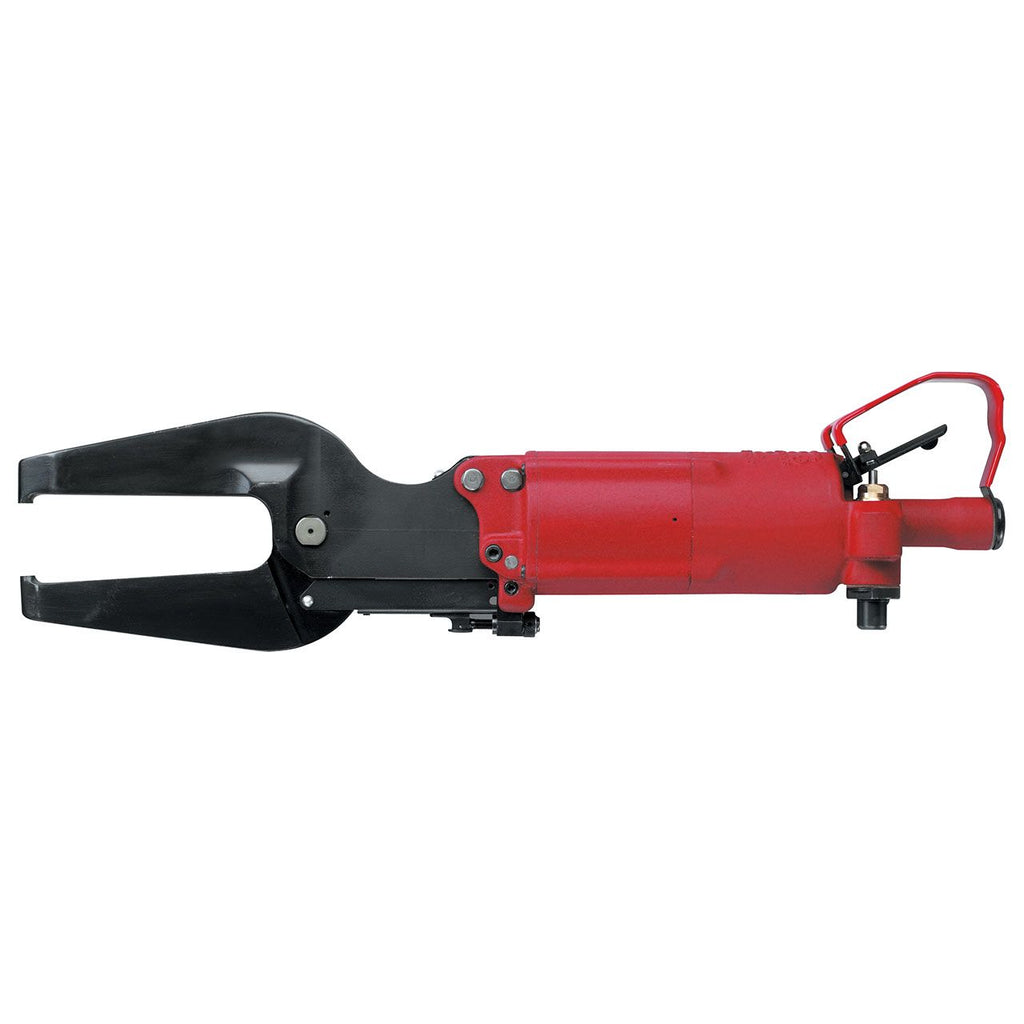

Desoutter CP0351ESVEL | Pneumatic Alligator Rivet Squeezer | 26.7 kN, 232 mm Reach, 4.8 mm Al Rivet
Desoutter's CP0351ESVEL (part T012605) combines a tandem cylinder with alligator-jaw geometry and delivers up to 26.7 kN (6000 lbf) at 90 psi. With 232 mm of reach and a 62 mm throat gap, the CP0351ESVEL closes aluminium rivets to 4.8 mm and steel rivets to 4 mm. Across the C-YOKE squeezer family that includes the CP0351ESVEL, adjustable rivet set holders and a choice of reach suit 3 mm to 6 mm riveting tasks.
Key features
- Closed height 19 mm, lower offset 5.5 mm and total yoke gap 56 mm on the CP0351ESVEL
- Weighs 13.2 kg (29.1 lb), overall length 762 mm (30 in) for the CP0351ESVEL
- Sound pressure 96 dB(A), sound power 107 dB(A), vibration below 2.5 m/s² with the CP0351ESVEL
- Adjustable rivet set shank with a fast and slow approach option to help reduce cycle time on the CP0351ESVEL
- Power-to-weight ratio designed to reduce operator fatigue (CP0351ESVEL)
- Specifications
- Downloads
| Part Number | T012605 |
| Brand | Desoutter |
| Model | CP0351ESVEL |
| Weight | 13.2 kg (29.1 lb) |
| Length (L) | 762 mm (30 in) |
| Jaw Type | Alligator Jaws |
| Cylinder | Tandem Cylinder |
| Max Compression Force (90psi/6.2bar) | 26.7 kN (6000 lbf) |
| Max Rivet Size Aluminium (mm) | 4.8 |
| Max Rivet Size Steel (mm) | 4 |
| Reach (R) (mm) | 232 |
| Throat Gap (A) (mm) | 62 |
| Total Yoke Gap (G) (mm) | 56 |
| Closed Height (H) (mm) | 19 |
