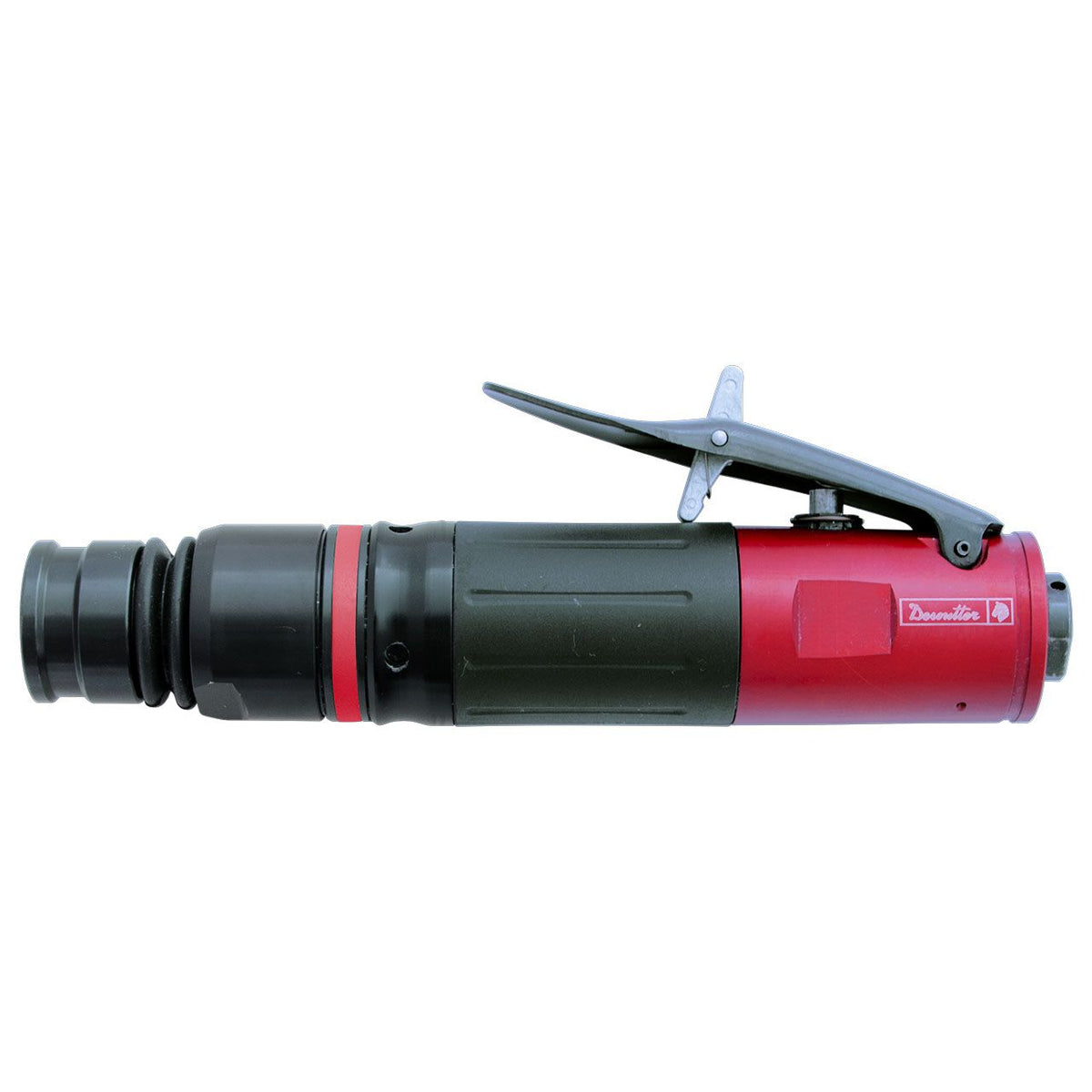

Desoutter DR300-T2000-QR | Pneumatic Straight Drill (Quick Release) | 2000 rpm, 5.4 Nm, QR Output
Desoutter part number 6151760680, the DR300-T2000-QR, is a pneumatic straight drill with quick release output with 2000 rpm free speed with 5.4 Nm (4 ft.lbf) max forward torque. The DR300-T2000-QR has a quick release pneumatic output, a length of 179 mm (7.05 in) and a weight of 0.52 kg (1.15 lb). Quick release accessories let the DR300-T2000-QR, like the rest of the DR300 QR family, move between drilling applications with one tool.
Key features
- Quick release output for one tool across multiple applications (DR300-T2000-QR)
- The DR300-T2000-QR combines a progressive trigger with a safety lever start
- DR300-T2000-QR: 5 blade air motor with long-life gears to keep maintenance low
- The DR300-T2000-QR has an aluminium body, composite over-sleeve and soft rubber grip
- 1/4 in air inlet on the DR300-T2000-QR
- Sound level 75 dB(A) with vibration <2.9 m/s² as published for the DR300-T2000-QR
- Specifications
- Downloads
| Part Number | 6151760680 |
| Model | DR300-T2000-QR |
| Brand | Desoutter |
| Tool type | Inline |
| Max free speed range | 2000 rpm |
| Max torque in forward | 5.4 Nm (4 ft.lbf) |
| Output type | QR Pneumatic |
| Length (L) | 179 mm (7.05 in) |
| Weight | 0.52 kg (1.15 lb) |
| Starting system | Safety lever |
| Air inlet thread size (in) | 1/4 |
| Sound Pressure | 75 dB(A) |
| Vibration (m/s²) | <2.9 |
