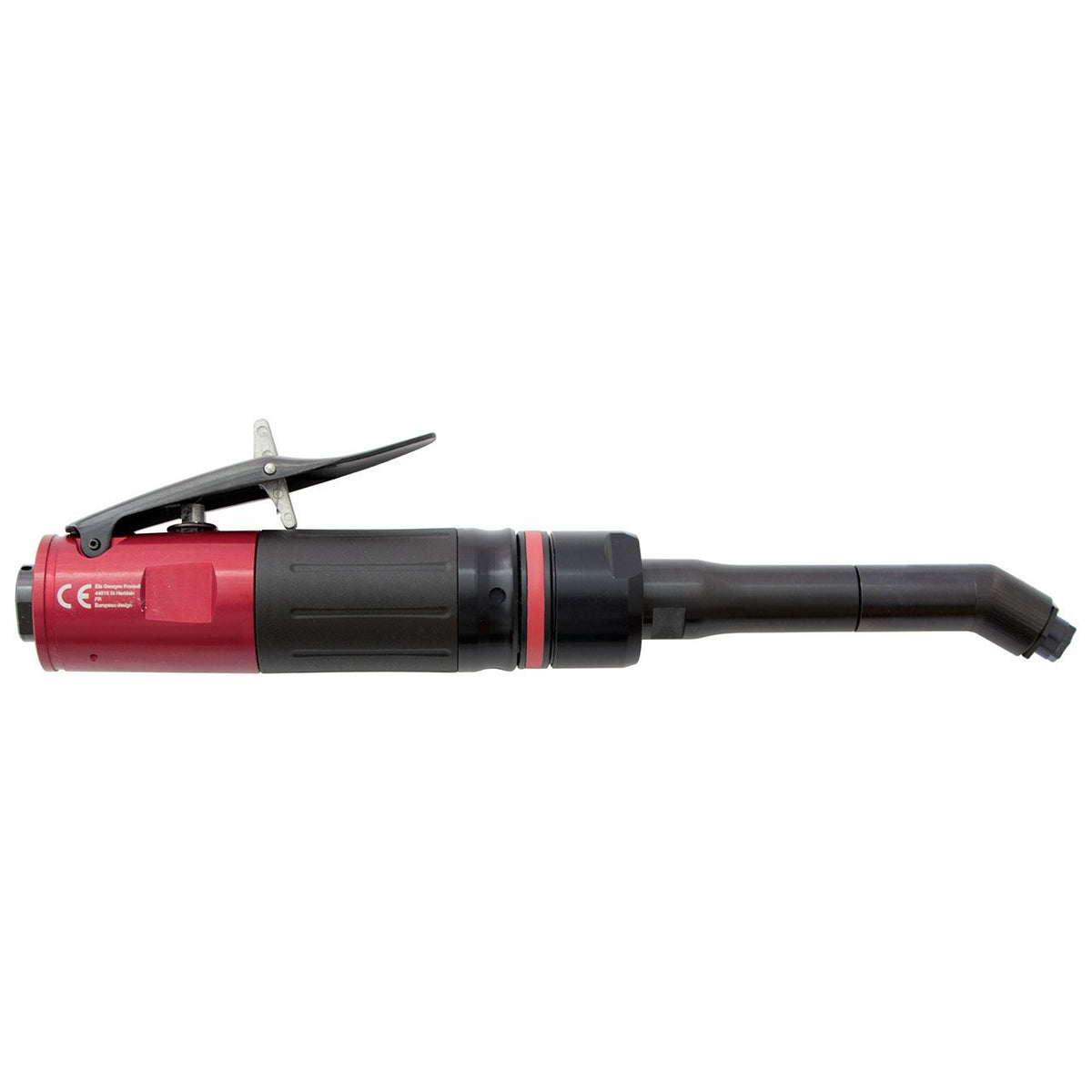

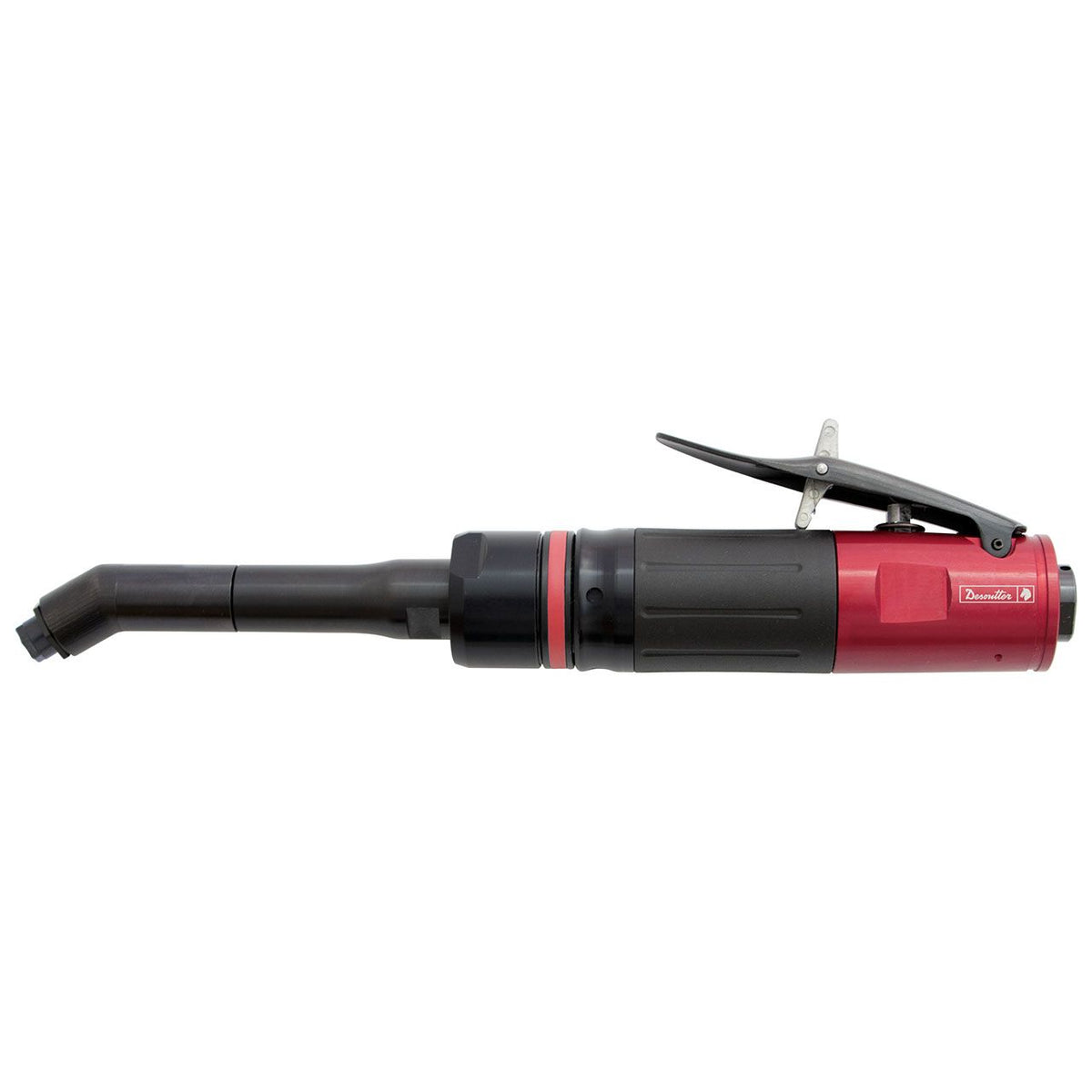

Desoutter DR300-T2000-S5-30 | Pneumatic Angle Head Drill | 2000 rpm, 5.4 Nm, 30° Compact Head
Desoutter part number 6151761310, the DR300-T2000-S5-30, is a pneumatic angle head drill with 2000 rpm free speed with 5.4 Nm (4 ft.lbf) stall torque. Its 30° compact head uses a 1/4-28 threaded output with 3/16 (5mm) collet max capacity, and the DR300-T2000-S5-30 measures 271.5 mm (10.69 in) long at 0.66 kg (1.46 lb). For standard drilling applications, the DR300-T2000-S5-30 brings the DR300 family traits of 300 W power, high repeatability and low maintenance.
Key features
- The DR300-T2000-S5-30 combines a progressive trigger with a safety lever start
- Long-life gears and a 5 blade air motor drive the DR300-T2000-S5-30
- The DR300-T2000-S5-30 has an aluminium body, composite over-sleeve and soft rubber grip
- 9.5 l/s (20 cfm) air consumption at free speed through a 1/4 in inlet; minimum hose 6 mm for 5 m (DR300-T2000-S5-30)
- Sound level 75 dba with vibration <2.5 m/s² as published for the DR300-T2000-S5-30
- Specifications
- Downloads
| Part Number | 6151761310 |
| Brand | Desoutter |
| Model | DR300-T2000-S5-30 |
| Free Speed | 2000 rpm |
| Stall Torque | 5.4 Nm (4 ft.lbf) |
| Weight | 0.66 kg (1.46 lb) |

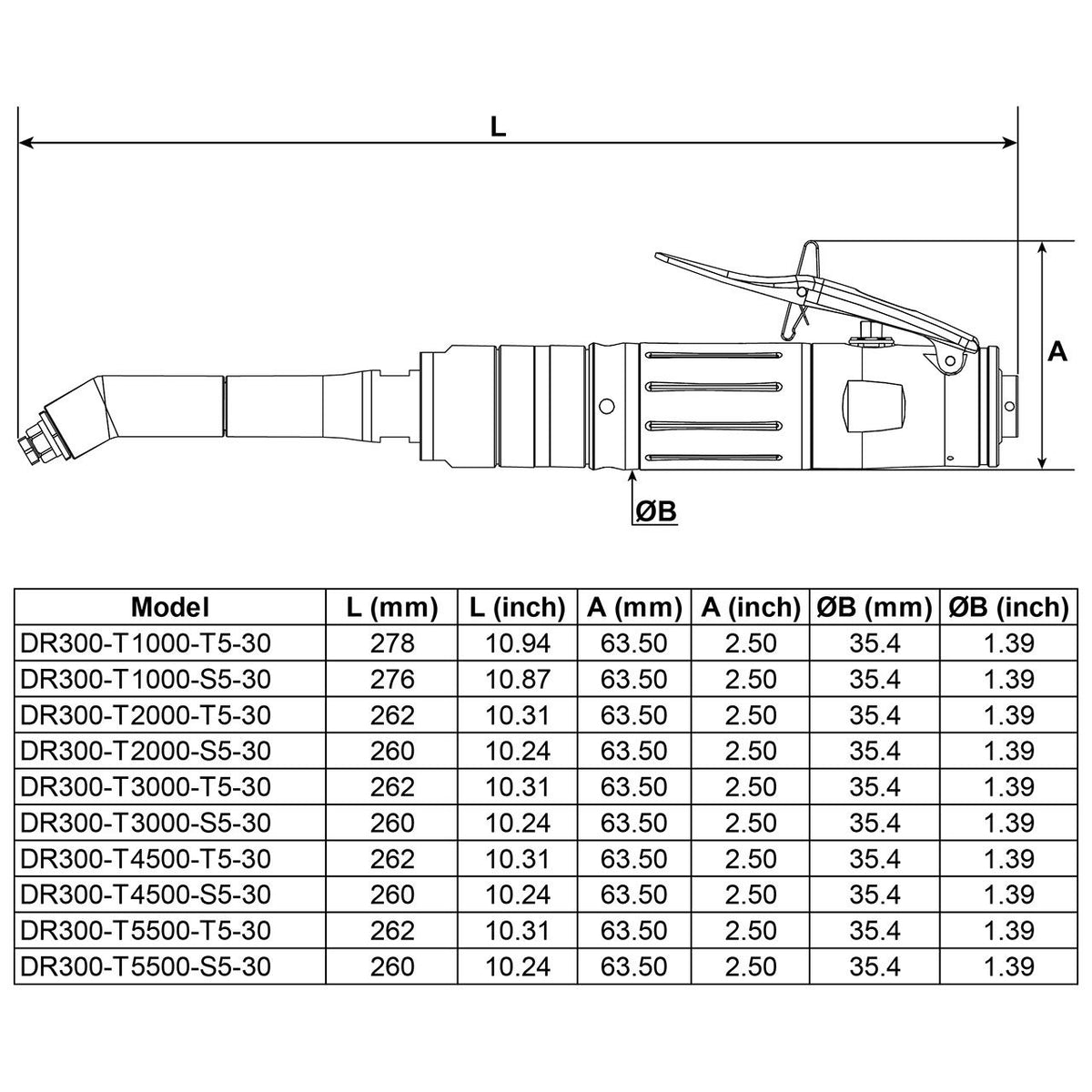

| Length (L) | 271.5 mm (10.69 in) |
| Air Consumption at Free Speed | 9.5 l/s (20 cfm) |
| Tool Type | Angle head |
| Head Angle Degree | 30 |
| Head Type | Compact |
| Angle Spindle Type | 1/4-28 Threaded output |
| Output Type | Angle |
| Collet Max Capacity | 3/16 (5 mm) |
