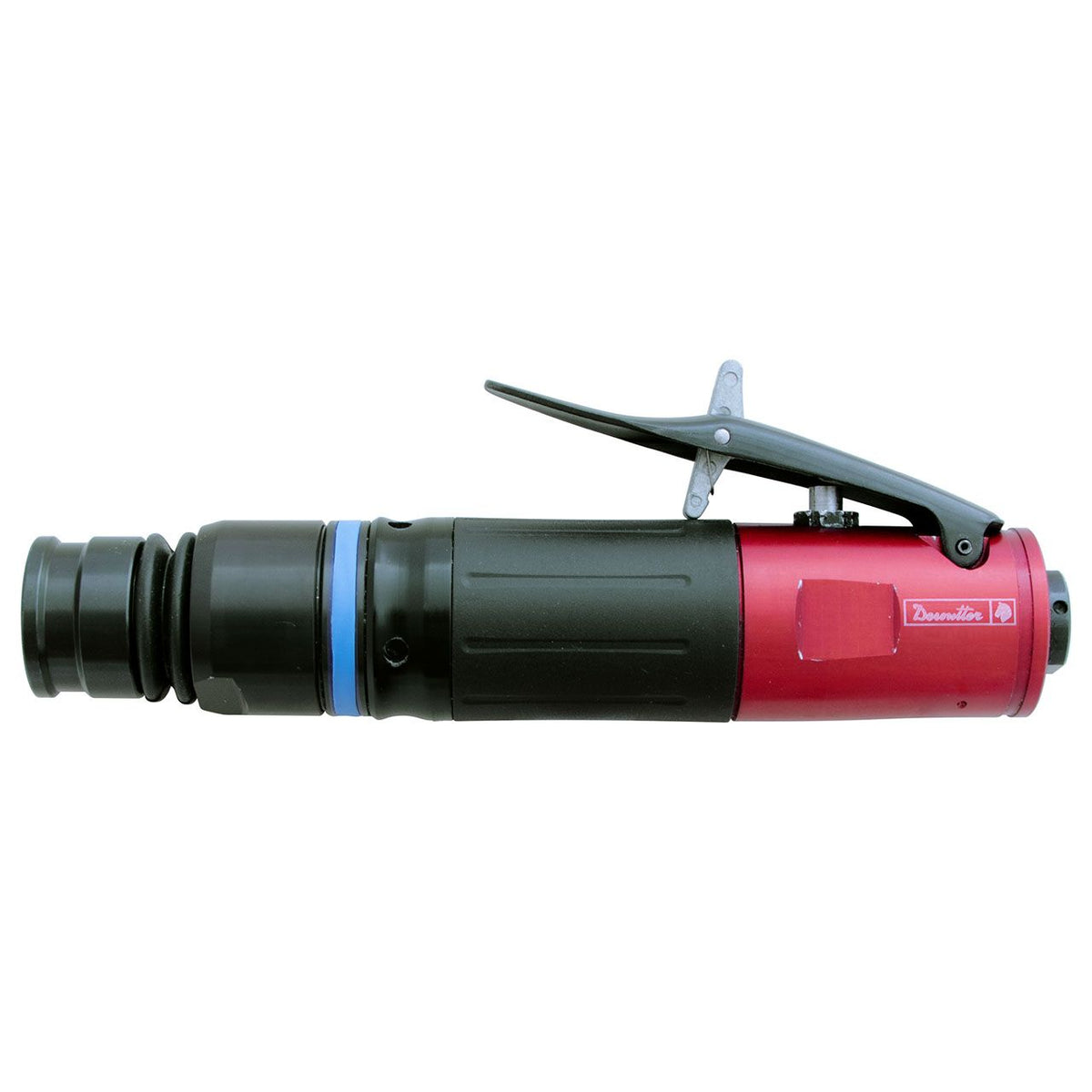

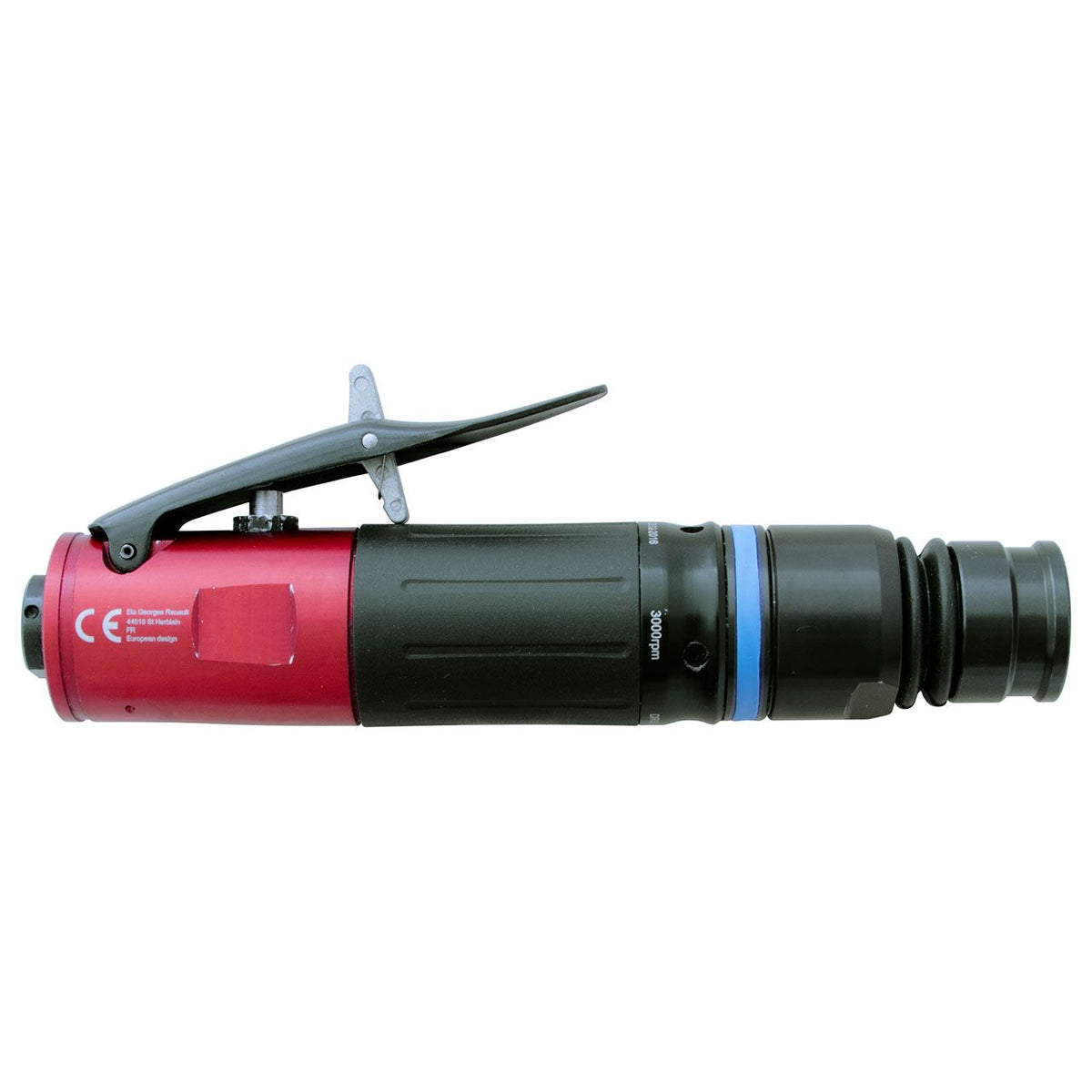

Desoutter DR300-T3000-QR | Pneumatic Straight Drill (Quick Release) | 3000 rpm, 4 Nm, QR Output
The Desoutter DR300-T3000-QR (part number 6151760690) is a pneumatic straight drill with quick release output running at 3000 rpm free speed with 4 Nm (3 ft.lbf) max forward torque. The DR300-T3000-QR has a quick release pneumatic output, a length of 179 mm (7.05 in) and a weight of 0.52 kg (1.15 lb). As part of the DR300 QR family, the DR300-T3000-QR works with a wide range of quick release accessories, so one tool can cover several drilling applications.
Key features
- Quick release output for one tool across multiple applications (DR300-T3000-QR)
- Progressive trigger with safety lever start on the DR300-T3000-QR
- Long-life gears and a 5 blade air motor drive the DR300-T3000-QR
- The DR300-T3000-QR has an aluminium body, composite over-sleeve and soft rubber grip
- 1/4 in air inlet on the DR300-T3000-QR
- Sound level 75 dB(A) with vibration <2.8 m/s² as published for the DR300-T3000-QR
- Specifications
- Downloads
| Part Number | 6151760690 |
| Model | DR300-T3000-QR |
| Brand | Desoutter |
| Tool type | Inline |
| Max free speed range | 3000 rpm |
| Max torque in forward | 4 Nm (3 ft.lbf) |
| Output type | QR Pneumatic |

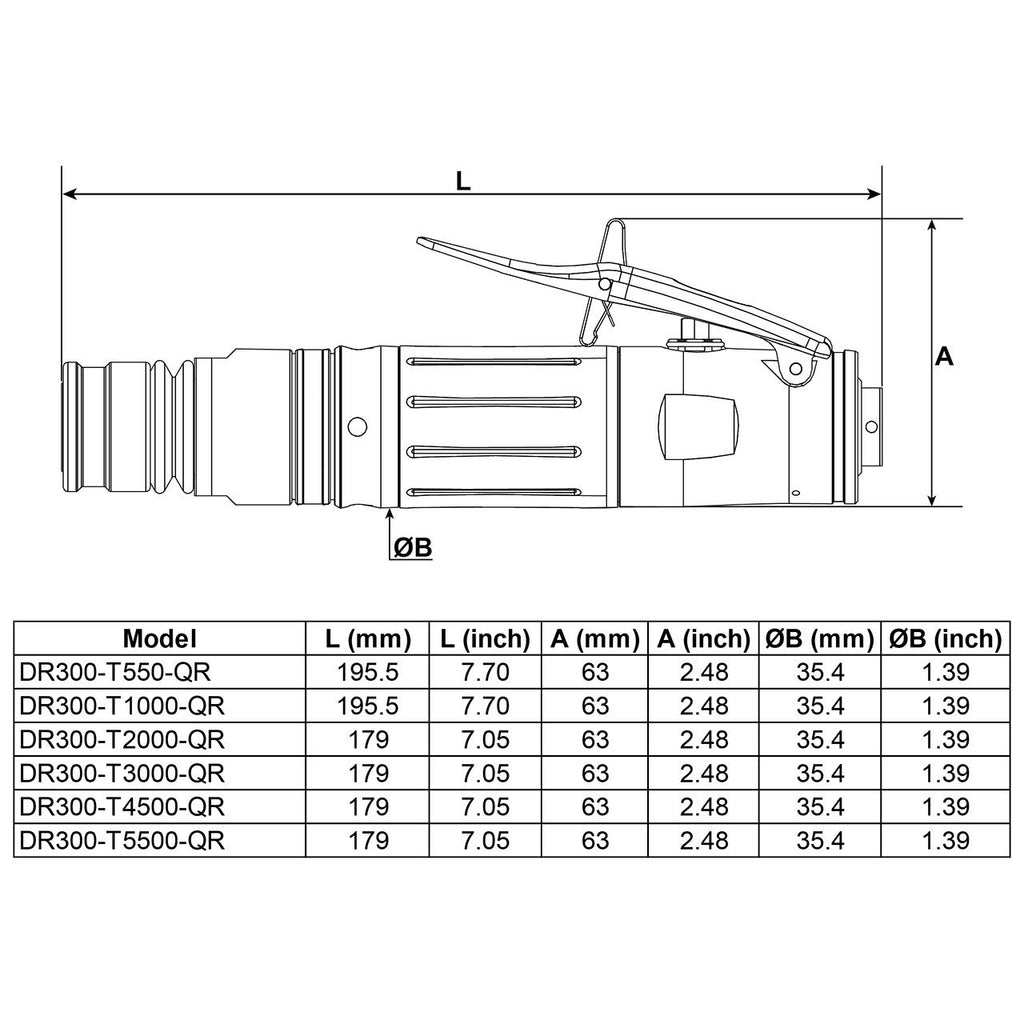

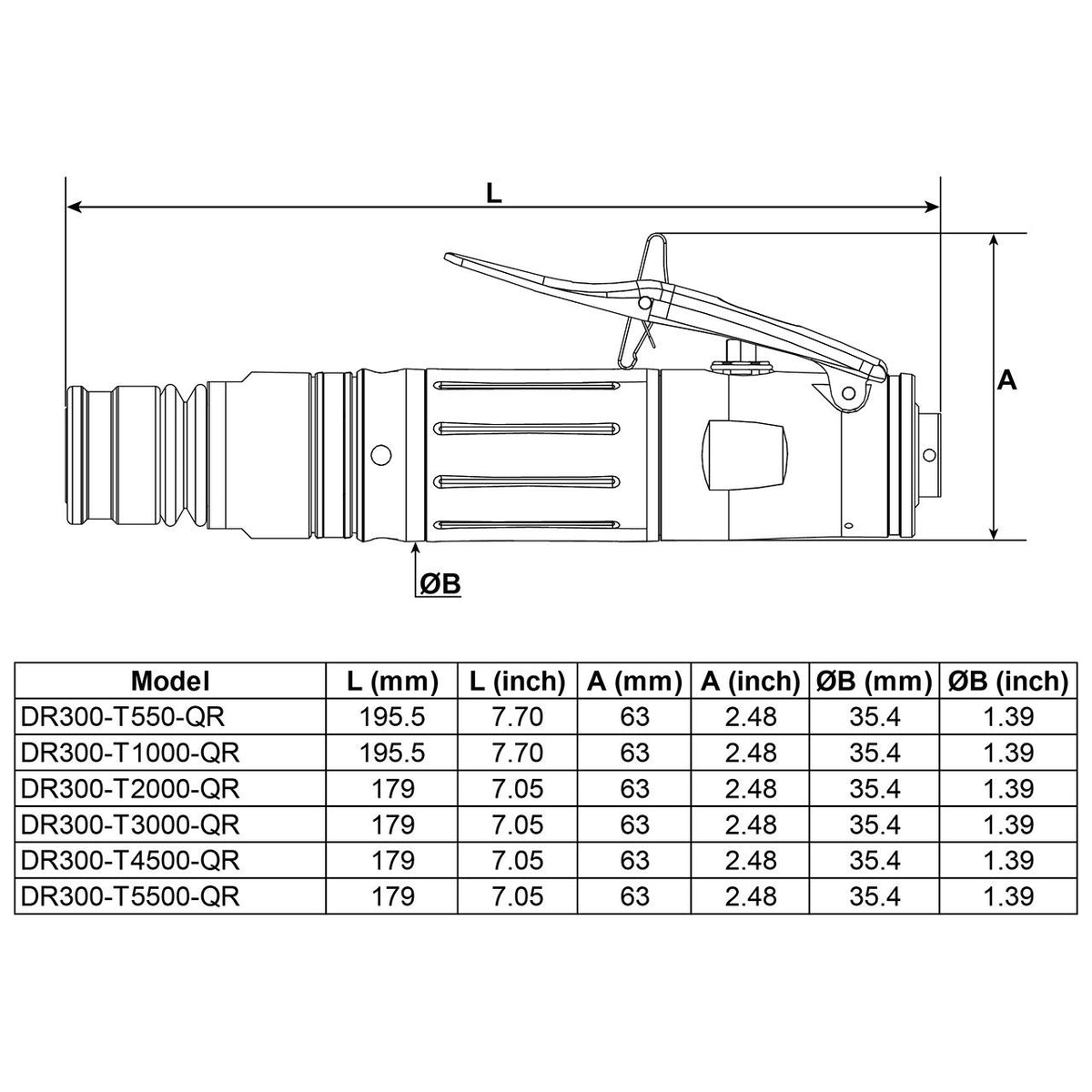

| Length (L) | 179 mm (7.05 in) |
| Weight | 0.52 kg (1.15 lb) |
| Starting system | Safety lever |
| Air inlet thread size (in) | 1/4 |
| Sound Pressure | 75 dB(A) |
| Vibration (m/s²) | <2.8 |
