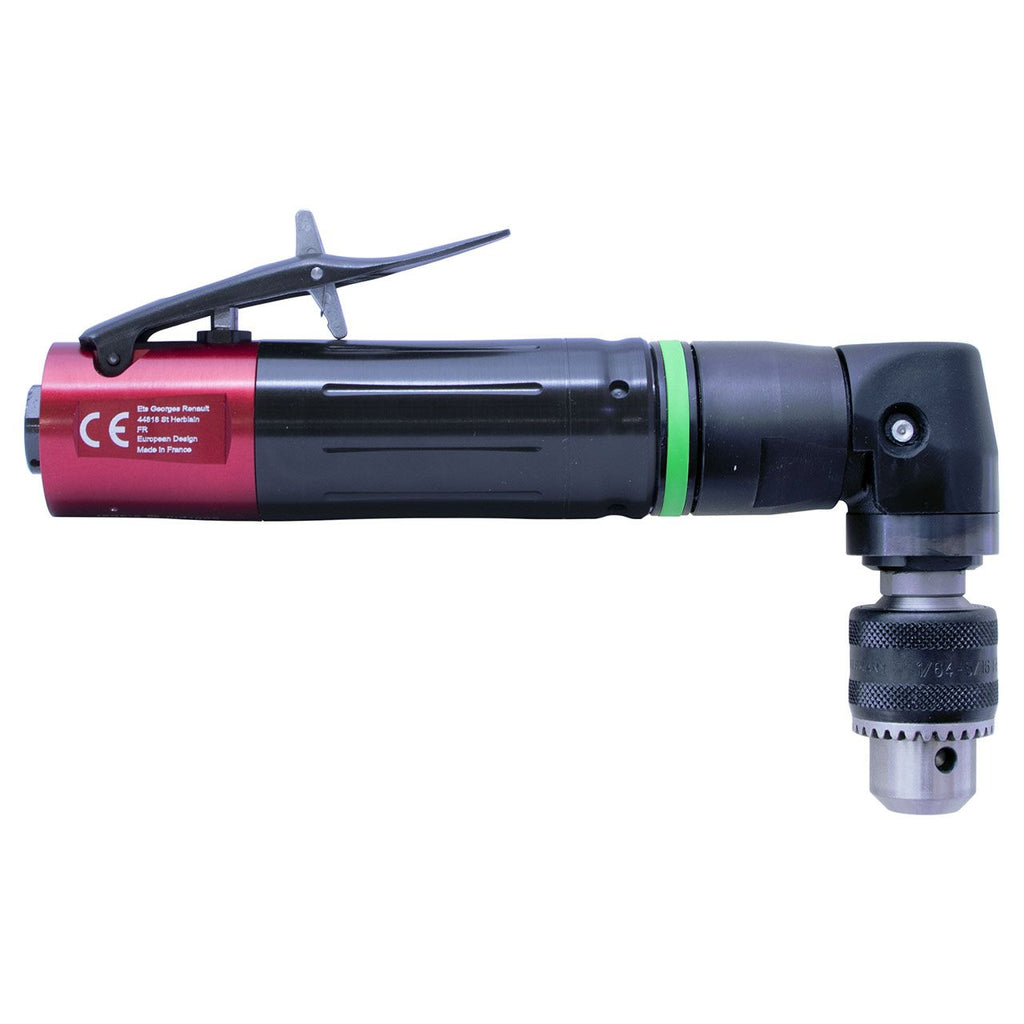

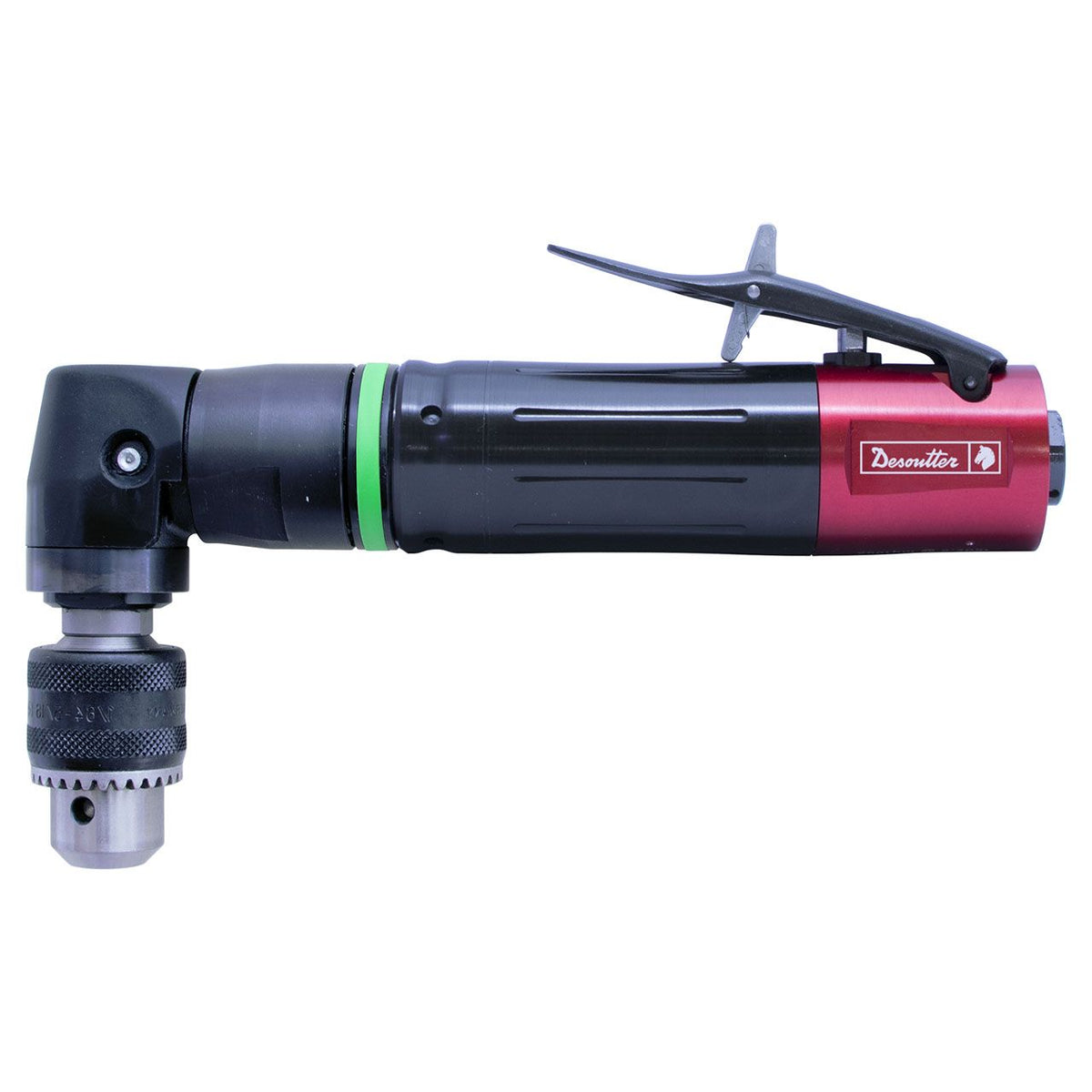

Desoutter DR450-T1800-SHD-90 | Pneumatic Angle Head Drill | 2700 rpm, 8 mm Keyed Chuck, 90° Heavy Duty Head
Desoutter part number 6151761790 is the DR450-T1800-SHD-90, a pneumatic angle head drill delivering 2700 rpm. On the DR450-T1800-SHD-90, a heavy duty 90 degree head carries a keyed chuck of 8 mm maximum capacity on a 3/8-24 mount. The DR450 range behind the DR450-T1800-SHD-90 offers 450 W of power, high repeatability and low maintenance for standard drilling applications.
Key features
- Uses 14 l/s (29 cfm) of air at free speed; the DR450-T1800-SHD-90 needs at least a 6 mm hose over a 5 m run
- Progressive trigger on the DR450-T1800-SHD-90, with safety lever start, vibration <2.5 m/s², sound level 75 dba
- The DR450-T1800-SHD-90 weighs 0.92 kg (2.03 lb) and is 191.5 mm (7.54 in) long, in aluminium, composite over-sleeve construction
- 5 blade air motor and long-life gears in the DR450-T1800-SHD-90 for reliability and low maintenance
- Soft rubber grip and long lever on the DR450-T1800-SHD-90 to reduce operator fatigue
- Specifications
- Downloads
| Part Number | 6151761790 |
| Model | DR450-T1800-SHD-90 |
| Brand | Desoutter |
| Tool type | Angle head |
| Free Speed | 2700 rpm |
| Chuck type | Keyed |
| Chuck max capacity (mm) | 8 |
| Chuck mount | 3/8-24 |
| Head type | Heavy duty |
| Head angle degree | 90 |
| Air consumption at free speed | 14 l/s (29 cfm) |
| Weight | 0.92 kg (2.03 lb) |

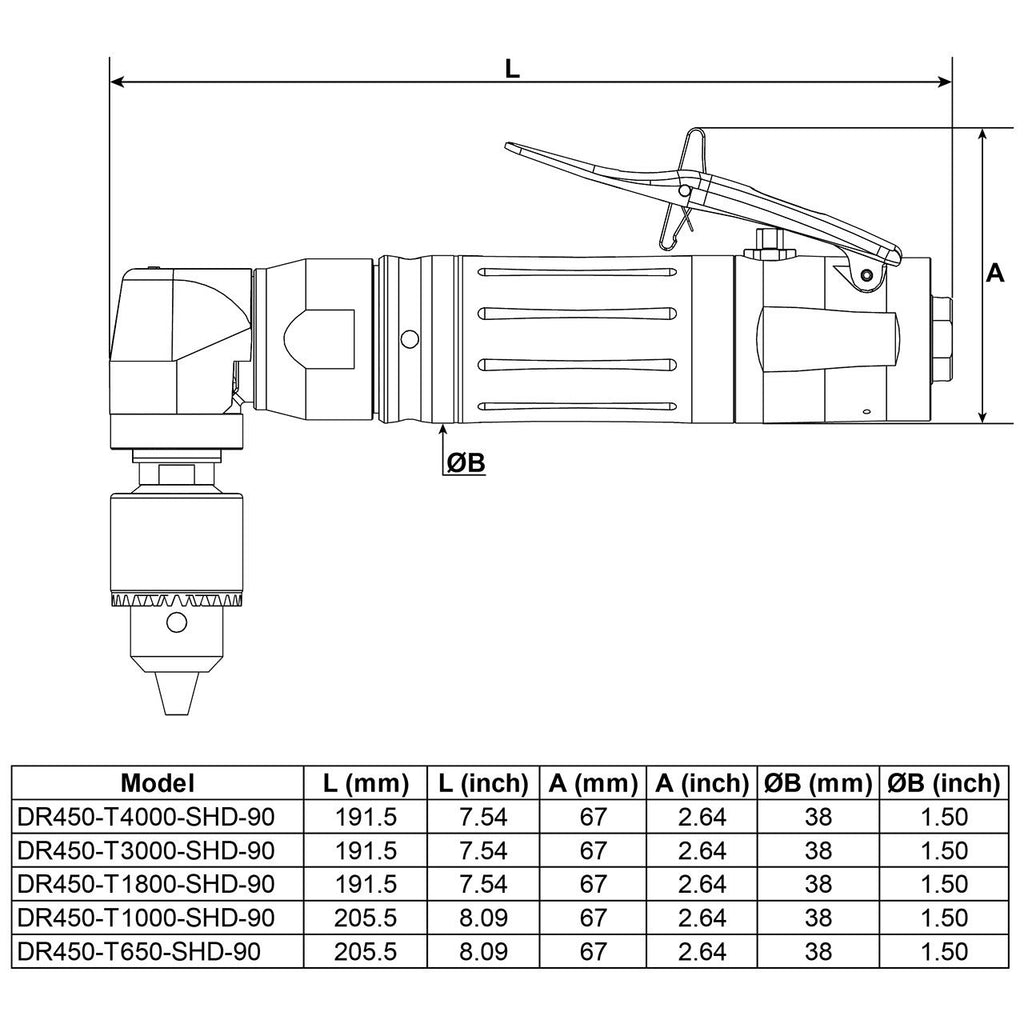

| Length (L) | 191.5 mm (7.54 in) |
| Vibration (m/s²) | <2.5 |
