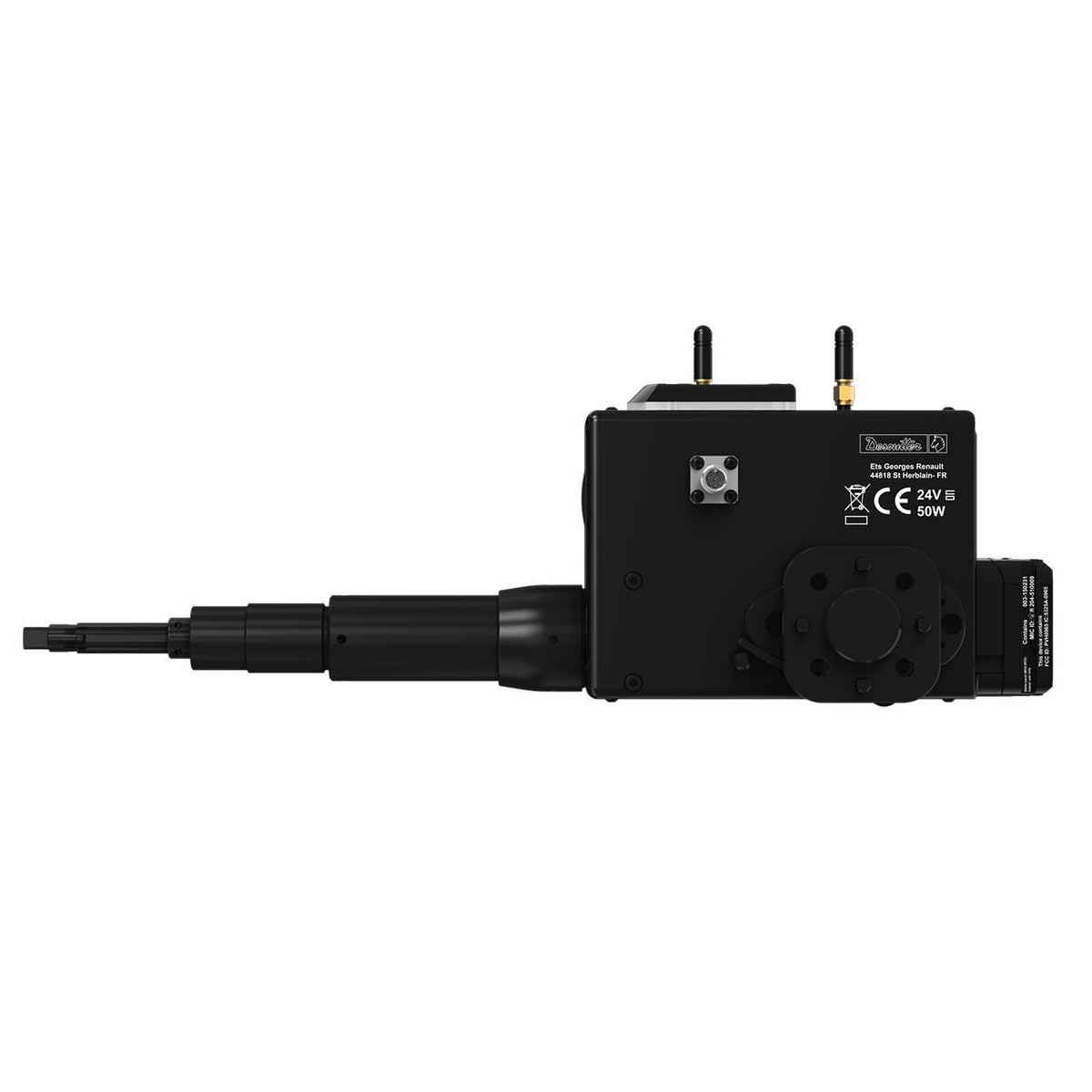

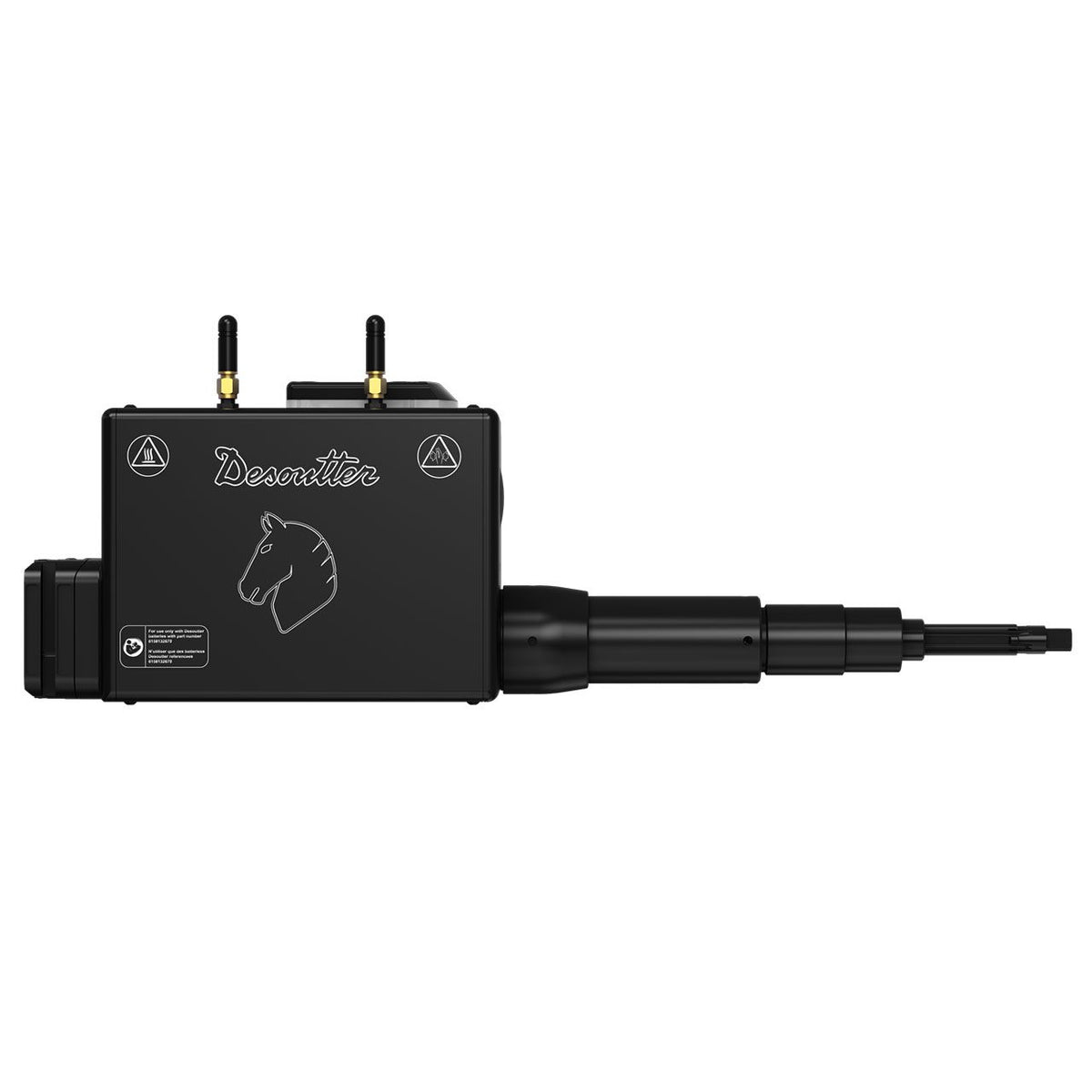

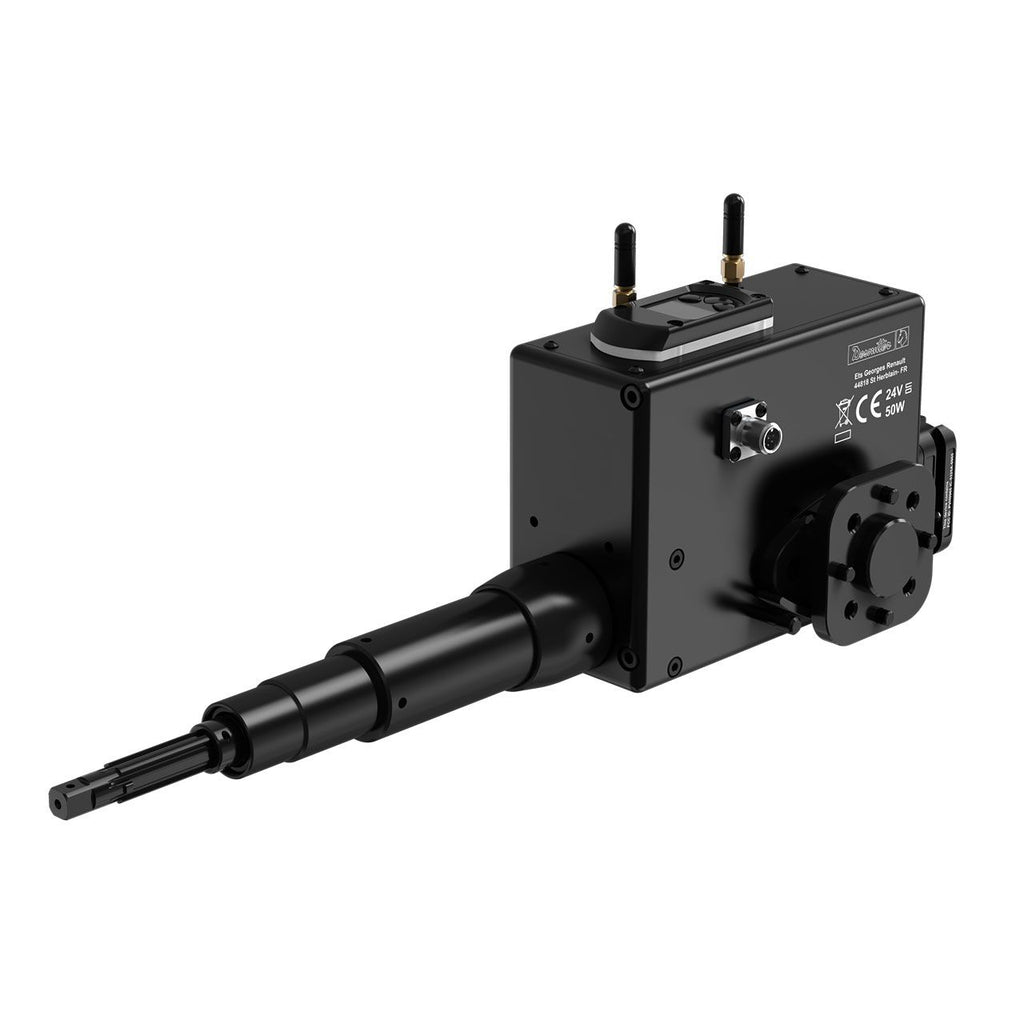

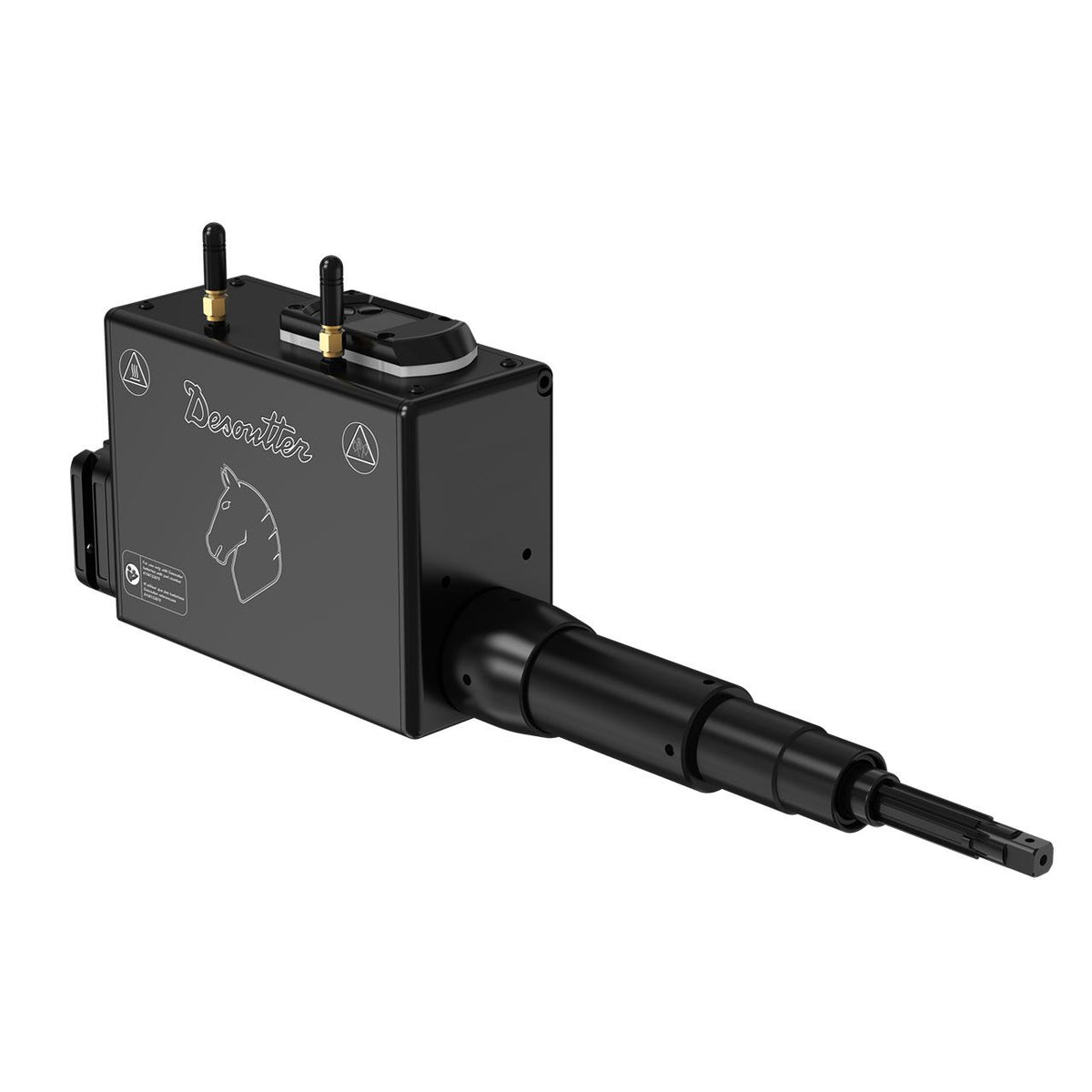

Desoutter EFBCIT20-770-10S | Straight Telescopic Fast Integration Spindle | 20 Nm, 770 rpm, 3/8 in Sq
Part Number : 8920904178
The Desoutter EFBCIT20-770-10S (part number 8920904178) is a straight telescopic fast integration spindle rated for 20 Nm maximum forward torque, 18 Nm recommended torque and 770 rpm free speed, with a 3/8 in square drive. The EFBCIT20-770-10S measures 460 mm (18.11 in) long, 100 mm (3.94 in) wide and 166 mm (6.54 in) high and weighs 3.7 kg (8.16 lb) and a 40 mm (1.57 in) telescopic stroke. Desoutter designed this range for end-of-arm tooling on robots and cobots of all brands, using battery tool technology for high tightening power, so the EFBCIT20-770-10S suits light automation stations.
Key features
- 20 Nm max torque, 770 rpm free speed and 3/8 in Sq output on the EFBCIT20-770-10S
- Reversible with shut-off transducer torque control (EFBCIT20-770-10S)
- Thin, small-section cable carries continuous charging and safety signals to the EFBCIT20-770-10S
- EFBCIT20-770-10S mounts with a fast clamping system that also eases maintenance
For pricing, please contact our experts.
