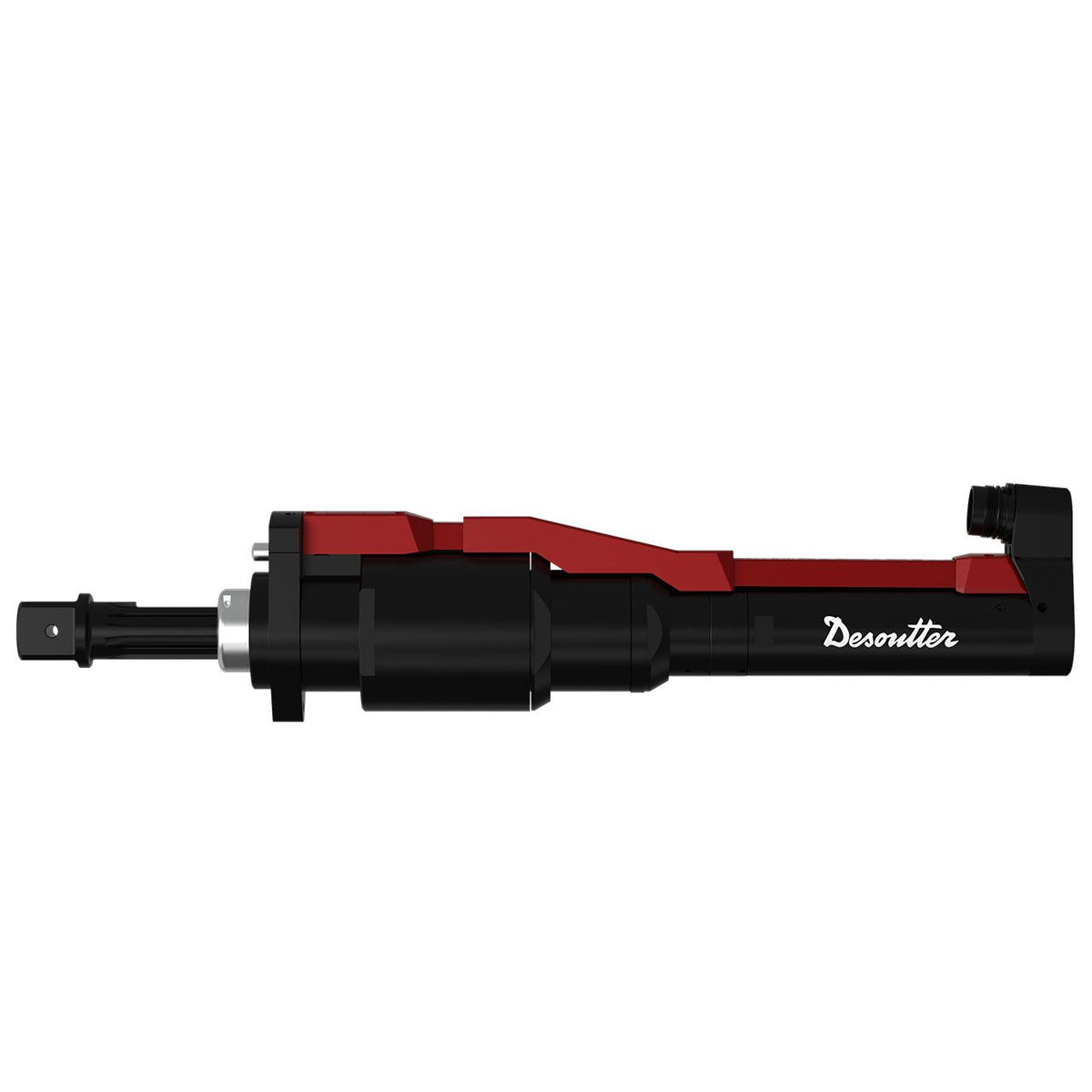

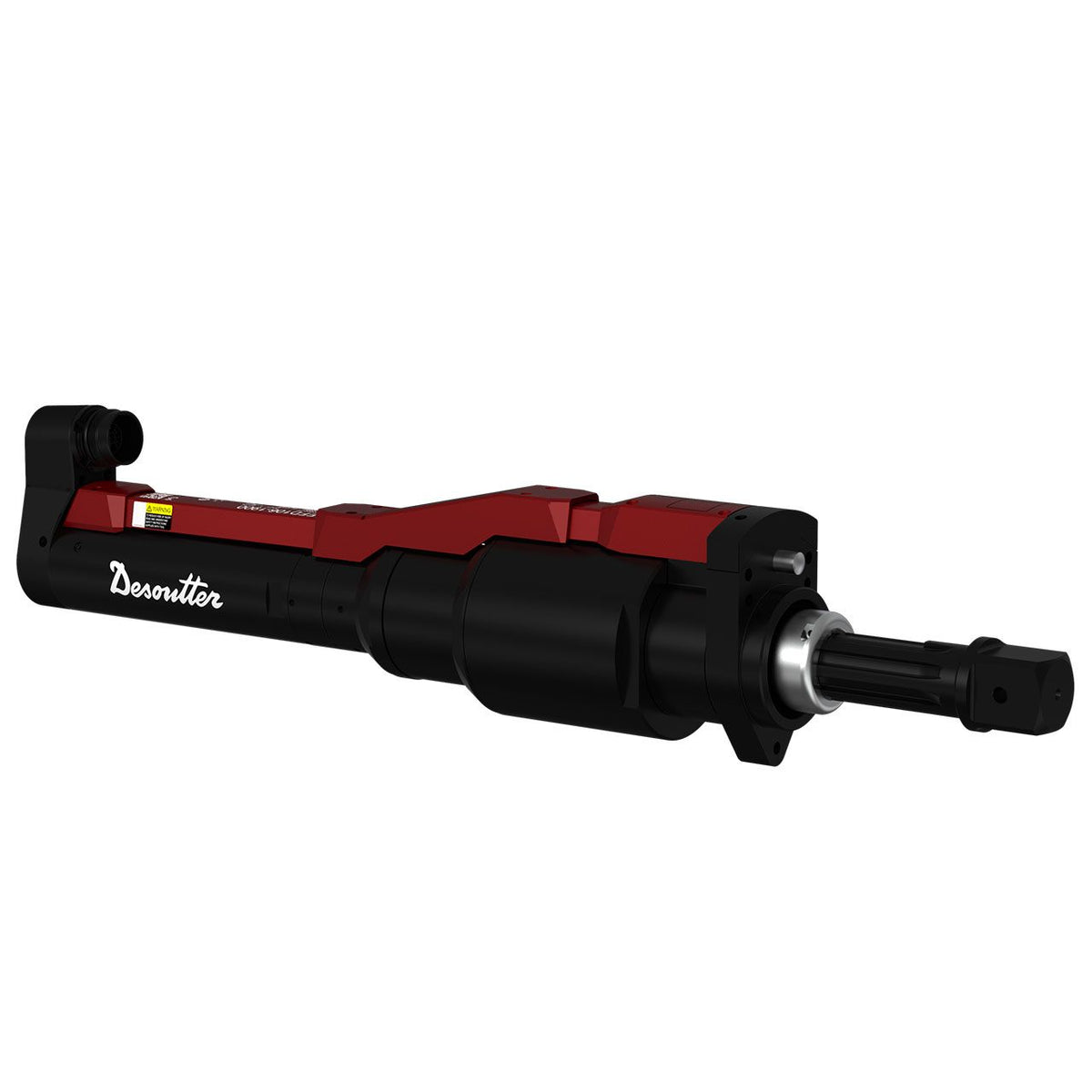

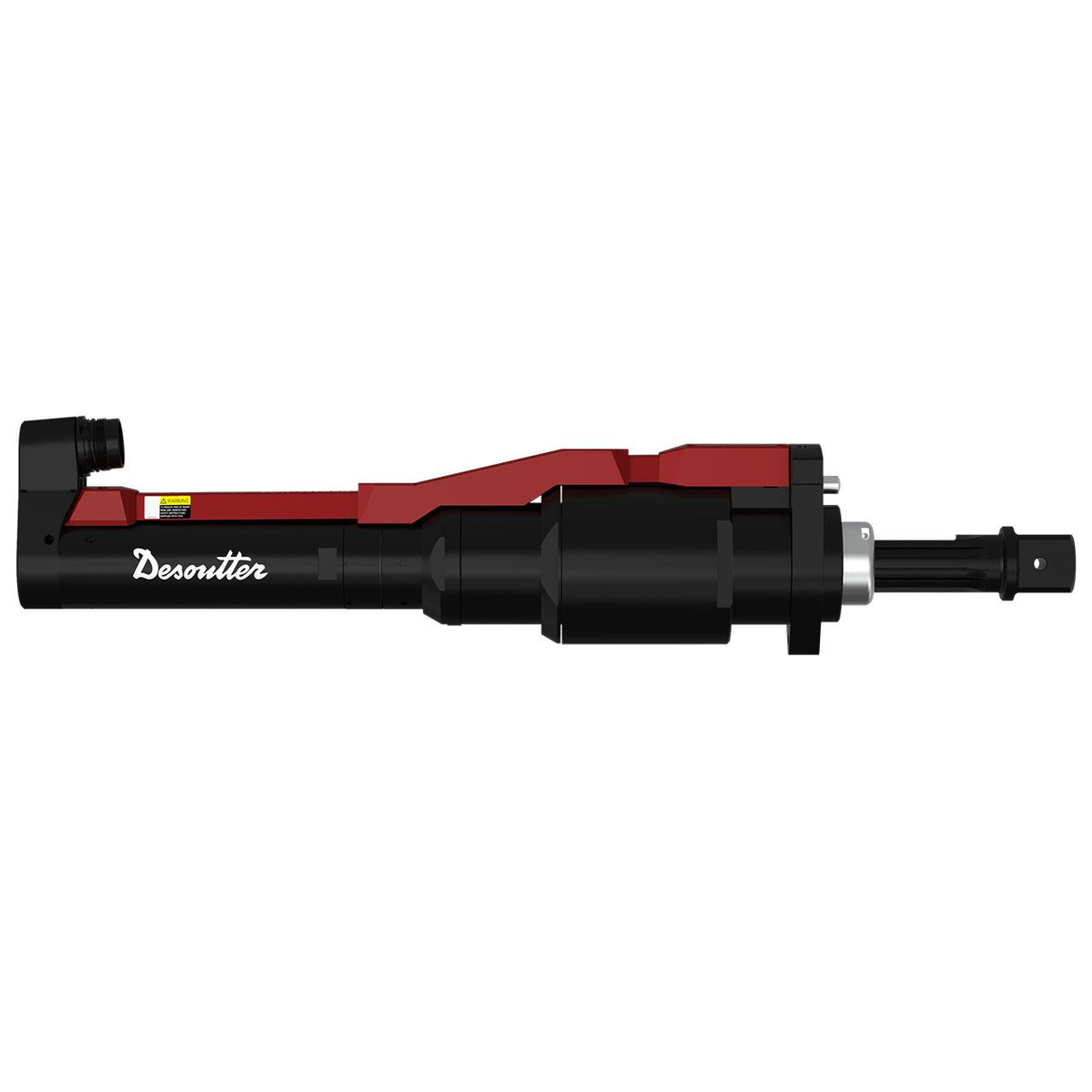

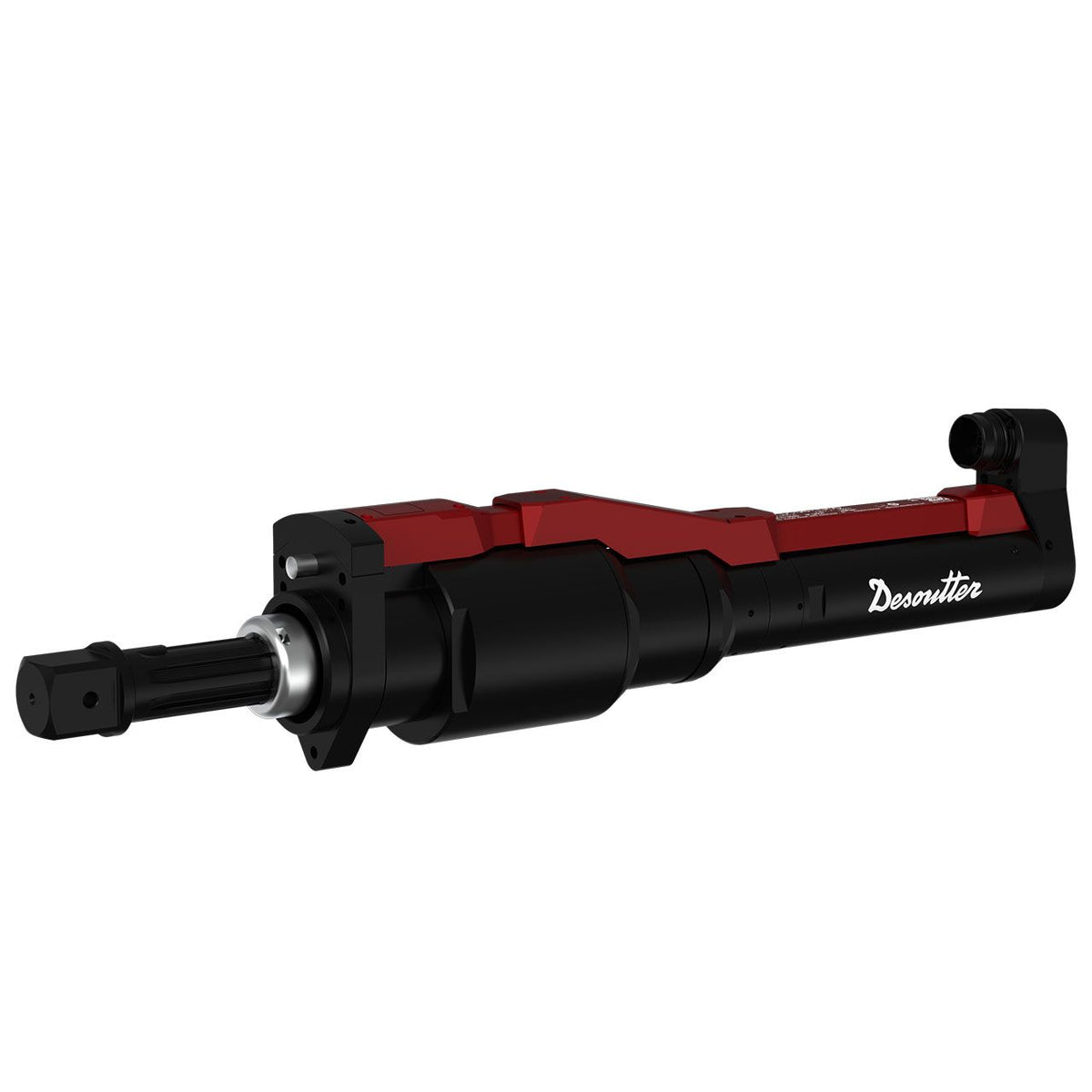

Desoutter EFD106-1900 | In-line Transducerized Fixtured Spindle | 2000 Nm, 47 rpm, 1-1/2 in Sq
Part Number : 6151662190
Desoutter part 6151662190, the EFD106-1900, is an in-line transducerized fixtured spindle that offers up to 2000 Nm (1480 ft.lbf) of forward torque and runs at 47 rpm free speed via a 1-1/2 in square drive. For the EFD106-1900, Desoutter quotes a recommended torque of 1900 Nm (1400 ft.lbf), 60 mm (2.36 in) telescopic stroke and weight of 15.7 kg (34.6 lb). Desoutter builds EFD spindles such as the EFD106-1900 for automated fixtured stations, whether one spindle or several synchronised spindles are used, with full Industry 4.0 tightening data.
Key features
- 2000 Nm forward torque and 47 rpm free speed on the EFD106-1900
- 1-1/2 in square drive output, reversible, with shut-off transducer torque control (EFD106-1900)
- Repeatable tightenings from accurate torque and angle control on the EFD106-1900
- IP54 protection lets the EFD106-1900 work in demanding applications
- Multiple tightening strategies available from one EFD106-1900 spindle
For pricing, please contact our experts.
