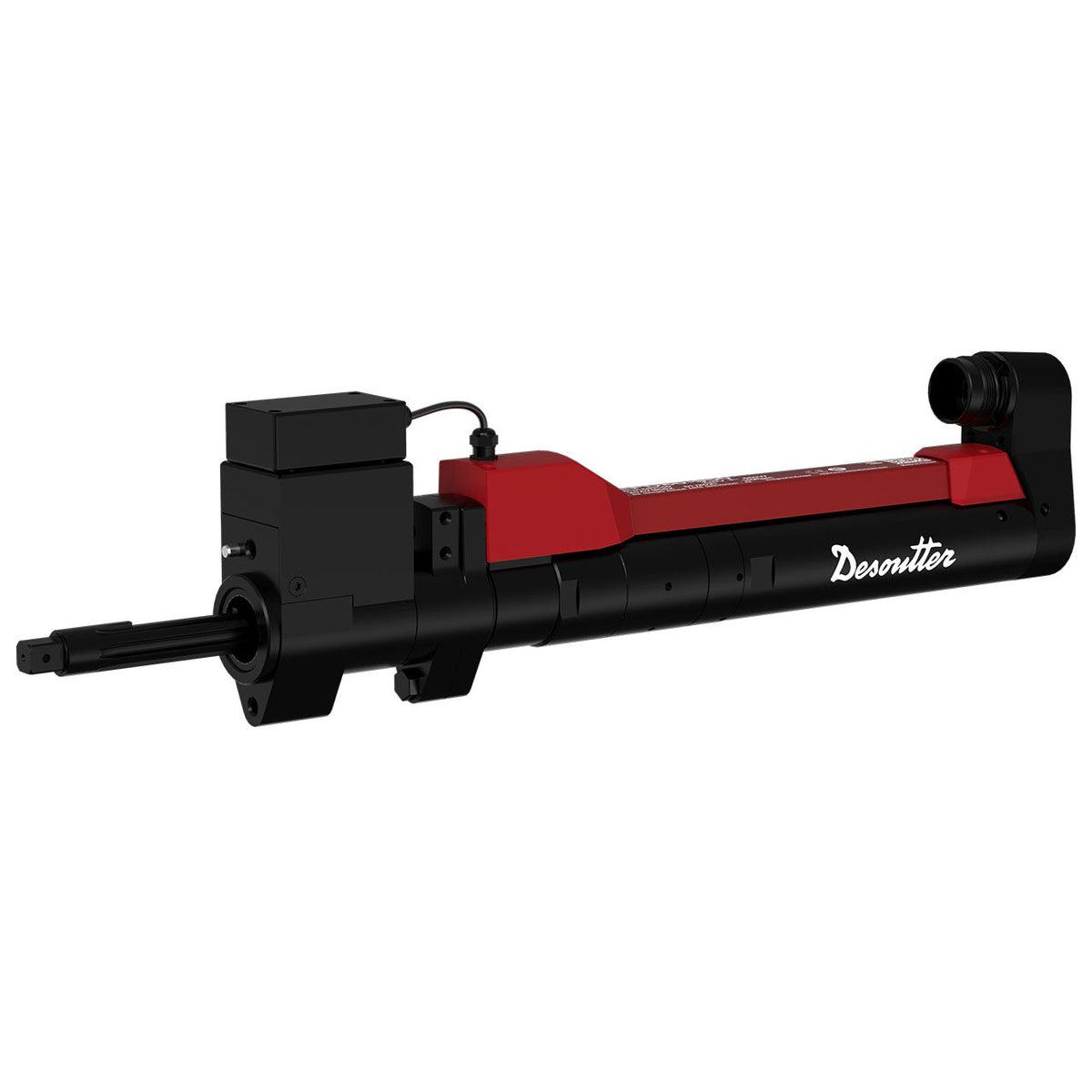

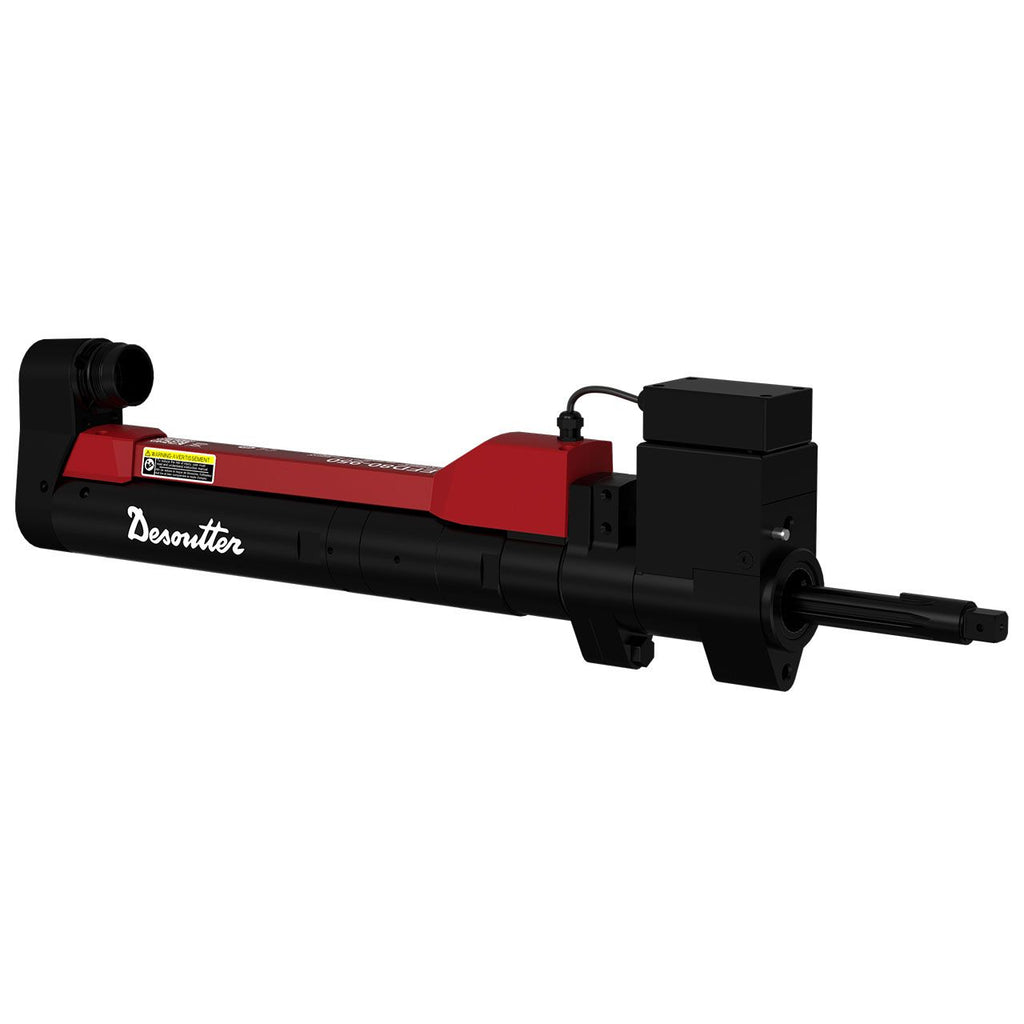

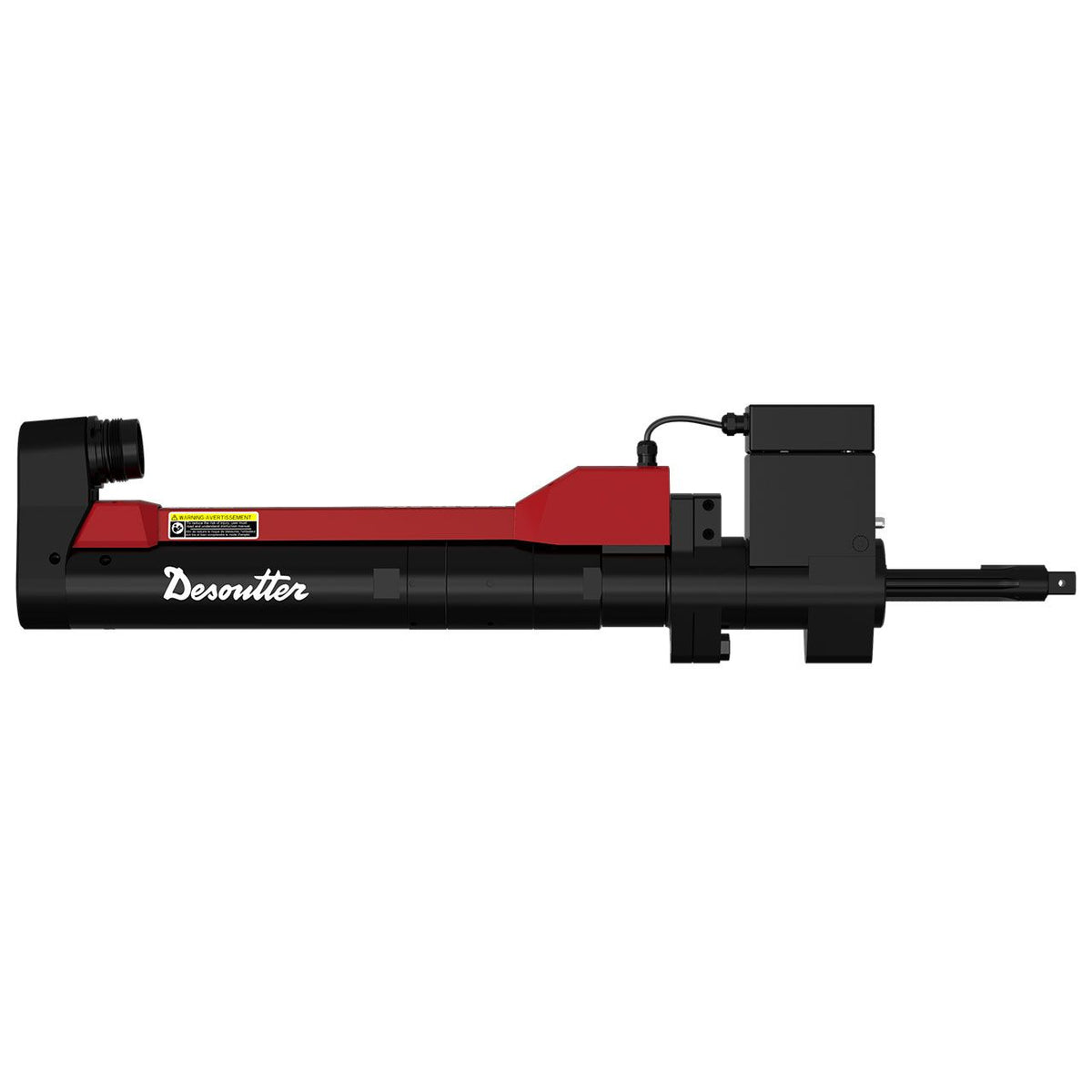

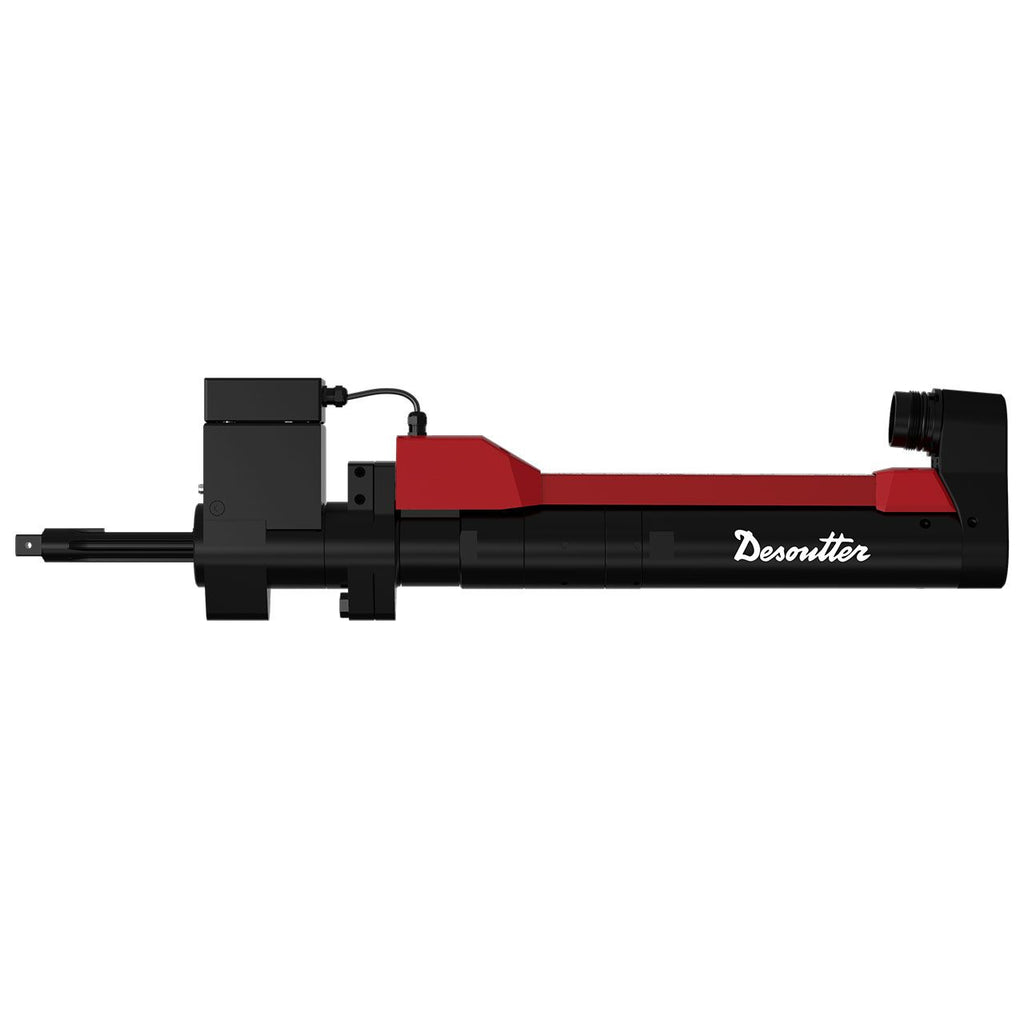

Desoutter EFD51-135-TA | Double Transducer In-line Fixtured Spindle | 150 Nm, 463 rpm, 1/2 in Sq
Part Number : 6151662570
The Desoutter EFD51-135-TA (part number 6151662570) is a double transducer in-line transducerized fixtured spindle delivering up to 150 Nm (111 ft.lbf) of forward torque at a free speed of 463 rpm, through a 1/2 in square drive. Desoutter lists the EFD51-135-TA with a recommended torque of 135 Nm (99.6 ft.lbf), 50 mm (1.97 in) telescopic stroke and weight of 5.7 kg (12.5 lb). The EFD family serves fixtured stations with one spindle or several synchronised spindles and supplies full Industry 4.0 tightening data, which makes the EFD51-135-TA a fit for automated machines.
Key features
- 150 Nm forward torque and 463 rpm free speed on the EFD51-135-TA
- 1/2 in square drive output, reversible, with shut-off transducer torque control (EFD51-135-TA)
- Double transducer fitted on the EFD51-135-TA
- Torque transducer and angle sensor in the EFD51-135-TA for accurate, repeatable tightenings
- EFD51-135-TA is IP54 rated for demanding applications
- One EFD51-135-TA covers multiple tightening strategies
For pricing, please contact our experts.
