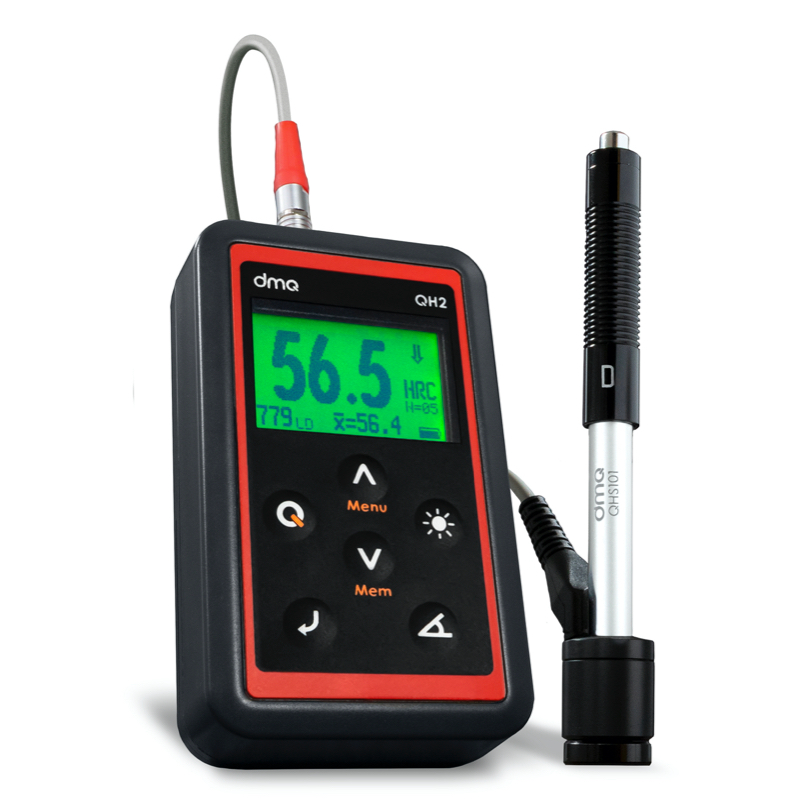

DMQ QH2 DLS | Leeb Hardness Tester with Datalogger | 1000-reading memory, USB
With the DMQ QH2 DLS you get the QH2 Leeb tester for steel plus a 1000-reading datalogger and USB link. Stored results can be transferred to a PC and managed in the free dmq DataCenter software. A Type D impact device is supplied; a reference test block is not part of this model.
Key features
- Stores up to 1000 readings in internal memory
- USB cable included for PC transfer via dmq DataCenter
- Type D impact device; also works with the Type DC device
- 150–960 HL range on steel, accuracy ±4 HL (0.5% at 800 HL)
- Displays HL, HV, HB, HRC, HRB, HS or N/mm²
- Two AA batteries, about 150 hours with display light off
The QH2 DLS ships in a high-impact carrying case containing the QH2 electronic unit, a Type D impact device, a USB cable, a printed quick guide and a certificate of conformity.
- Specifications
- Features
- Downloads
| Part Number | QH2 DLS |
| Brand | DMQ |
| Accuracy | ±4 HL (0.5% at 800 HL) |
| Method | Leeb (rebound) |
| Memory | 1000 readings |
| Power | 2 x AA |
| Battery Life | 150 h (display light off) |
| Dimensions | 69 x 115 x 28 mm (2.72×4.53×1.10 in) |
| Impact Devices | Type D / DC |
| Range | 150–960 HL |
| Data Output | USB |
| Material | Steel |
| Hardness Units | HL, HV, HB, HRC, HRB, HS, N/mm² |
| Reference Test Block | Not included |
- Key for angle selection
- Alarm
