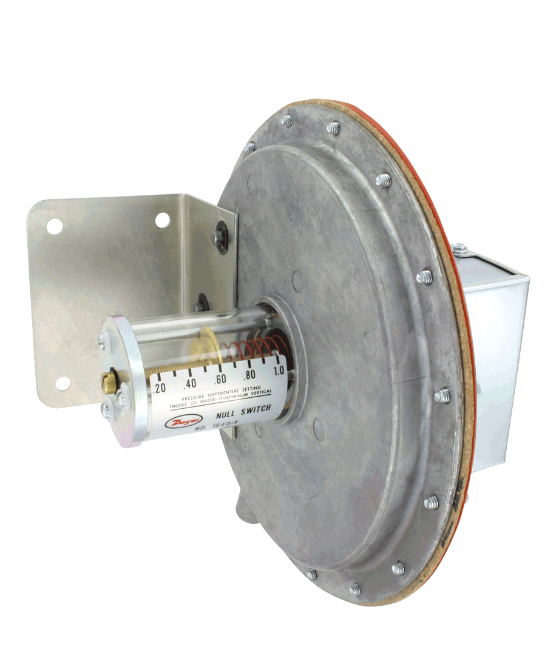

Dwyer 1640-1 | Floating Contact Null Switch | 0.2-1.0 in w.c., SPDT Floating Contact
The Dwyer 1640-1 is a differential pressure null switch with a 0.2-1.0 in w.c. range and an adjustable null set point. Its SPDT floating contact (not snap acting) closes a "high" circuit when rising pressure reaches one set point and a "low" circuit when falling pressure reaches the other, with no switching in between.
- Range of the 1640-1: 0.2-1.0 in w.c.
- Can drive motorised dampers to set maximum or minimum positions as duct static pressure changes
- With a Pitot tube sensing element, can regulate air velocity to keep supply duct air volume constant
- 1/8 in NPT female process ports and 1/2 in conduit opening
- Screw terminal wiring; ambient -30 to 110 °F
- Specifications
- Features
- Downloads
| Part Number | 1640-1 |
| Brand | Dwyer |
| Series | 1640 |
| Range | 0.2-1.0 in w.c. |
| Process Connection | 1/8 NPT female |
| Approvals | CE |
| Contact | SPDT floating (not snap acting) |
| Electrical Connection | Screw terminals |
| Net Weight | 4.81 lb |
| Ambient Temperature | -30 to 110 °F |
| Null Set Point | Adjustable |
| Conduit Connection | 1/2 in |
- Applications needing two set point actions, such open and close damper control, are supported via floating "null" switches.
- An easily observable set point indicator makes troubleshooting and operation simpler.
- Low range precision and precise control are provided by a large diaphragm.
