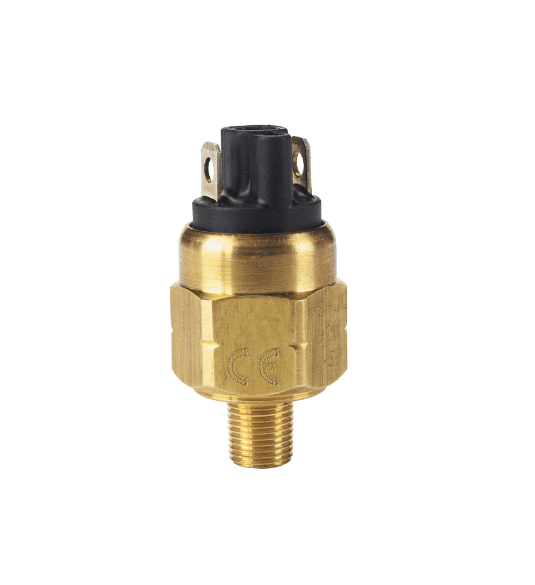

Dwyer A2-6801 | Subminiature Pressure Switch | 20-200 psi (1.4-6.89 bar), Brass, NO
Part Number : A2-6801
The Dwyer A2-6801 is a subminiature pressure switch in brass with a 20-200 psi (1.4-6.89 bar) range, a normally open contact and spade terminals. It works with liquids and gases, carries an IP69 enclosure rating and operates from -40 to 230 °F (-40 to 110 °C).
- 20-200 psi (1.4-6.89 bar) range; 350 psi (24 bar) pressure limit
- SPST switch rated 100 VA, 42 VDC; normally open
- Wetted parts: brass and polyimide film
- Male NPT process connection (1/8 in or 1/4 in)
- Deadband under 10%; repeatability ±3% of maximum set point at 70 °F (21 °C)
