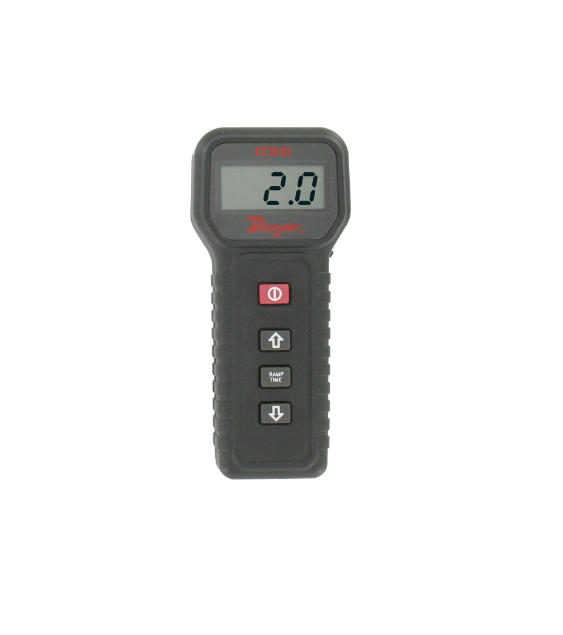

Dwyer CSG | Current/Voltage Signal Generator | 0-20 mA, 0-10 VDC
Part Number : CSG
The Dwyer CSG is a compact current and voltage signal generator that outputs 0 to 20 mA in 1 mA steps or 0 to 10 VDC in 1 V steps. It is intended for troubleshooting motors, actuators, transducers and transmitters, and can ramp its output continuously between user-set minimum and maximum values at a chosen interval.
- Large LCD with blue backlight for low-light use
- Powered by a 9 V alkaline battery (user replaceable) or the supplied 120 VAC plug-in adapter
- Auto shut-off adjustable from 1 to 20 min
- Operating temperature 32 to 122°F (0 to 50°C); weight 6 oz (170 g)
- Supplied with battery, carrying case, instructions, 6 ft (1.8 m) test leads with alligator clips and power supply
