Part Number : DA-31-2-9

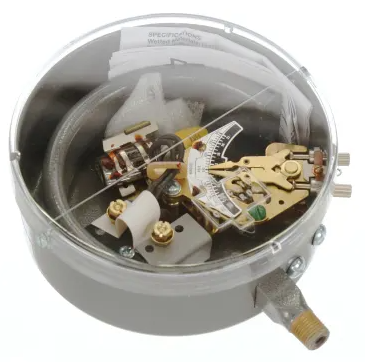

Rated for 10 to 300 psig, the Dwyer DA-31-2-9 is a brass Bourdon tube pressure switch for lower mounting, with a 120-240 V AC/DC rating and a 1/4 in male NPT port. The set point is adjusted with a thumbscrew. The deadband between high and low set points on the DA-31-2-9 can be changed over the whole range.

Repeatability ±1% of full operating range
Maximum operating temperature 180 °F (82 °C)
CSA, FM and UL approvals
Screw terminal electrical connection
Vertical installation

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	DA-31-2-9
Brand	Dwyer
Series	DA/DS (Mercoid)
Range	10-300 psig
Material	Brass
Mounting	Lower mount, vertical
Electrical Rating	120-240 V AC/DC
Process Connection	1/4 in NPT male
Set Point	Thumbscrew
Repeatability	±1% of full operating range
Max. Operating Temperature	180 °F (82 °C)
Approvals	CSA, FM, UL

A visible, calibrated dial allows for a quick and simple examination without opening the device, which puts operators in danger.
With the exception of hermetically sealed snap switch versions, the on/off signal clearly indicates to the operator the condition of any switched equipment that might be placed elsewhere.
Control applications benefit from adjustable or fixed deadbands because it minimizes equipment wear and tear by eliminating needless recycling.
Setup time is decreased by adjusting the external switch setpoint.
Application designers can specify standard equipment with pressure ranges from complete vacuum to 8000 psig, which makes installation and training easier and lowers servicing costs.
CSA approved, UL listed, and FM approved for numerous models to support strict process applications and regulations.
Enclosures that are multipurpose, weatherproof, or explosion-proof, suitable for a range of indoor and outdoor conditions, and uses.
