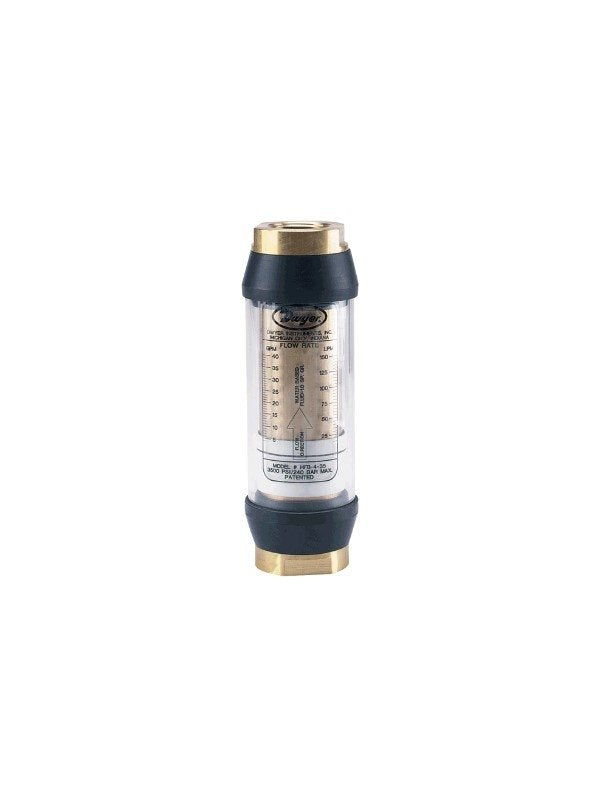

Dwyer HFB-3-20 | In-Line Flow Monitor | 2-20 GPM water, 3/4" female NPT, brass
Part Number : HFB-3-20
Dwyer HFB-3-20: an in-line monitor for water flow of 2-20 GPM (7.5-75 LPM), fitted with 3/4" female NPT ports. The HFB-3-20 works on the variable-area principle, using a floating orifice disk whose magnet drives an external follower over a direct-reading scale.
- ±2% FS accuracy with ±1% FS repeatability (HFB-3-20)
- Pressure rating of the HFB-3-20: 600 psig (41 bar) gas, 3500 psig (241 bar) liquid
- Maximum 240°F (116°C) and 500 SSU viscosity for the HFB-3-20
- Brass casing on the HFB-3-20, with Buna-N seals, a PTFE-coated Alnico magnet and SS disk
- HFB-3-20 shipping weight: 3.5 lb (1.59 kg)
Free UAE shipping available
For pricing, please contact our experts.
