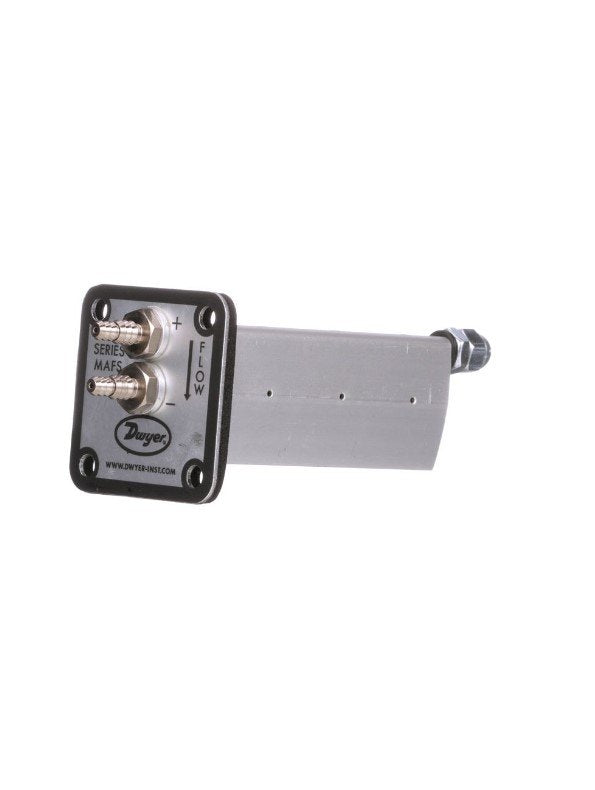

Dwyer MAFS-315MM | Metal Averaging Air Flow Sensor | 315 mm Probe, 400-12,000 fpm
The Dwyer MAFS-315MM is a 315 mm metal averaging flow sensor from the MAFS series, made for use with Dwyer air velocity gauges, transmitters and switches. Evenly spaced total and static pressure points along the MAFS-315MM probe measure the velocity pressure in a duct.
- 315 mm aluminium AA6063 probe
- K-factor 0.81 for the 315 mm length
- MAFS-315MM accuracy: ±2% FS from 400 to 9000 FPM (45.7 m/s)
- Design flow of the MAFS-315MM: 400 fpm (2 m/s) minimum, 12,000 fpm (60.91 m/s) maximum
- Dual barb fitting on the MAFS-315MM takes 3/16" or 1/4" ID tubing
- MAFS-315MM rated to 400°F (204°C); gasket -31 to 230°F (-35 to 110°C); RoHS II compliant
- Specifications
- Features
- Downloads
| Part Number | MAFS-315MM |
| Brand | Dwyer |
| Type | Metal Averaging Flow Sensor |
| Process Connection | Dual barb for 3/16" or 1/4" ID tubing |
| Max. Operating Temperature | 400 °F (204 °C) |
| Probe Length | 315 mm (12.4 in) |
| Material | Aluminium AA6063 |
| K-Factor | 0.81 |
| Accuracy | ±2% FS (400 to 9000 FPM) |
| Design Flow | 400 to 12,000 fpm (2 to 60.91 m/s) |
| Gasket Temperature | -31 to 230 °F (-35 to 110 °C) |
| Approvals | EU Directive 2011/65/EU (RoHS II) |
- The design of the blade minimizes airstream disturbance.
- Aluminum structure that is lightweight.
- Square or rectangular ducts with flange mount.
