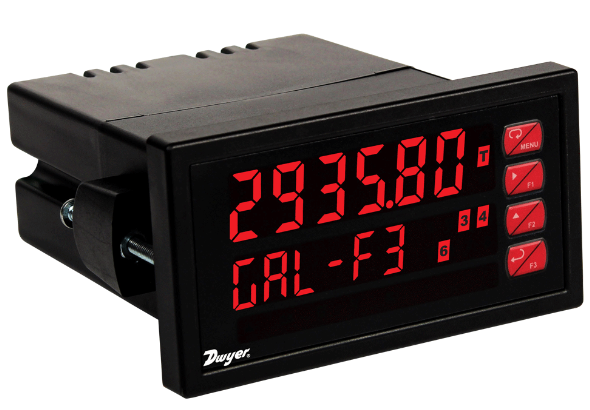

Dwyer MPM-220 | Process Panel Meter | 12-24 VDC, 2 Relays, No Analogue Output
Part Number : MPM-220
The Dwyer MPM-220 is a general purpose dual-line process meter with 12-24 VDC power, 2 alarm relays and no 4-20 mA output. Input on the MPM-220 is field-selectable for 0-10 V or 4-20 mA, and it provides 24 VDC to power the transmitter.
- MPM-220 configuration: 12-24 VDC, 2 alarm relays, no 4-20 mA output
- Top line shows the process variable, bottom line the engineering units (MPM-220)
- Dual scale mode on the MPM-220 shows one value in two units, e.g. height and volume
- 32-point linearisation and automated round horizontal tank function in the MPM-220
- MPM-220 front rated NEMA 4X, IP65; dual-line 6-digit display
- MPM-220 relays rated 3 A @ 30 VDC and 125/250 VAC resistive, 0-999.9 s on/off delays
Free UAE shipping available
For pricing, please contact our experts.
