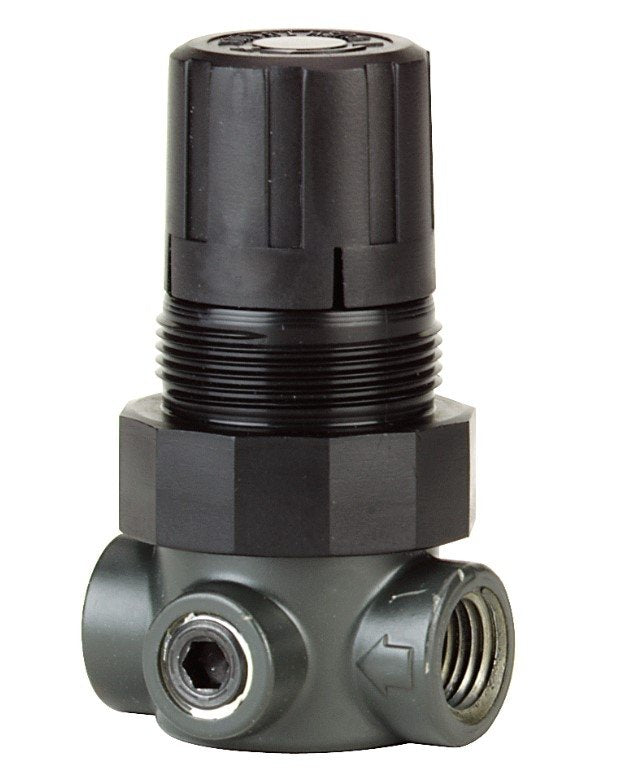

Dwyer MPR1-0 | Miniature Pressure Regulator | 0-5 psi, 1/4" NPT
Part Number : MPR1-0
The Dwyer MPR1-0 miniature pressure regulator has a 0-5 psi adjustment range and controls compressed air or air/water lines. The MPR1-0 low-torque, non-rising knob locks once the 0-5 psi setting is made.
- 0-5 psi output range (MPR1-0)
- MPR1-0 flow capacity: 24 SCFM (48 m³/hr) at 100 psig supply, 60 psig output
- Two 1/4" female NPT inlet/outlet ports and two 1/8" female NPT gauge ports on the MPR1-0
- Zinc body, acetal bonnet, nitrile diaphragm and seals (MPR1-0)
- MPR1-0 operating temperature 0 to 150°F (-18 to 60°C)
Free UAE shipping available
For pricing, please contact our experts.
