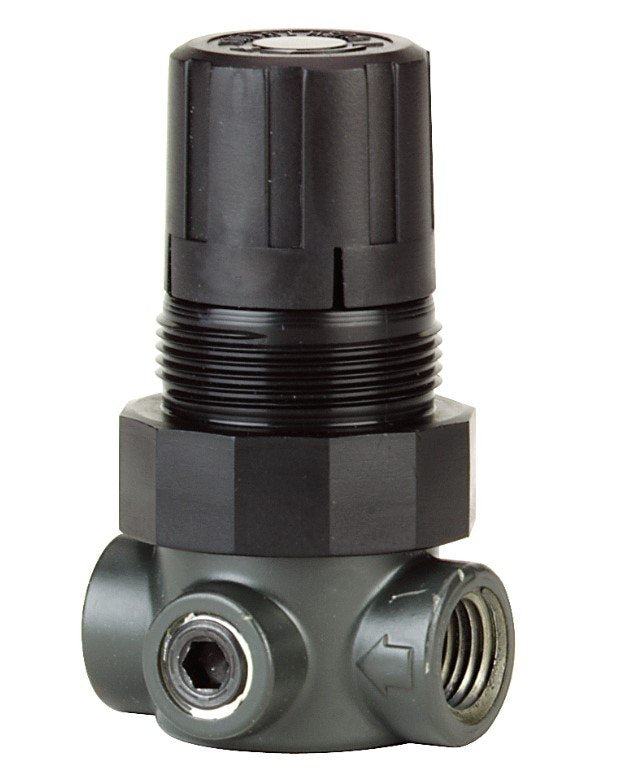

Dwyer MPR1-1 | Miniature Pressure Regulator | 0-15 psi, 1/4" NPT
Part Number : MPR1-1
The Dwyer MPR1-1 miniature pressure regulator has a 0-15 psi adjustment range and controls compressed air or air/water lines. The MPR1-1 low-torque, non-rising knob locks once the 0-15 psi setting is made.
- 0-15 psi output range (MPR1-1)
- MPR1-1 flow capacity: 24 SCFM (48 m³/hr) at 100 psig supply, 60 psig output
- Two 1/4" female NPT inlet/outlet ports and two 1/8" female NPT gauge ports on the MPR1-1
- Zinc body, acetal bonnet, nitrile diaphragm and seals (MPR1-1)
- MPR1-1 operating temperature 0 to 150°F (-18 to 60°C)
