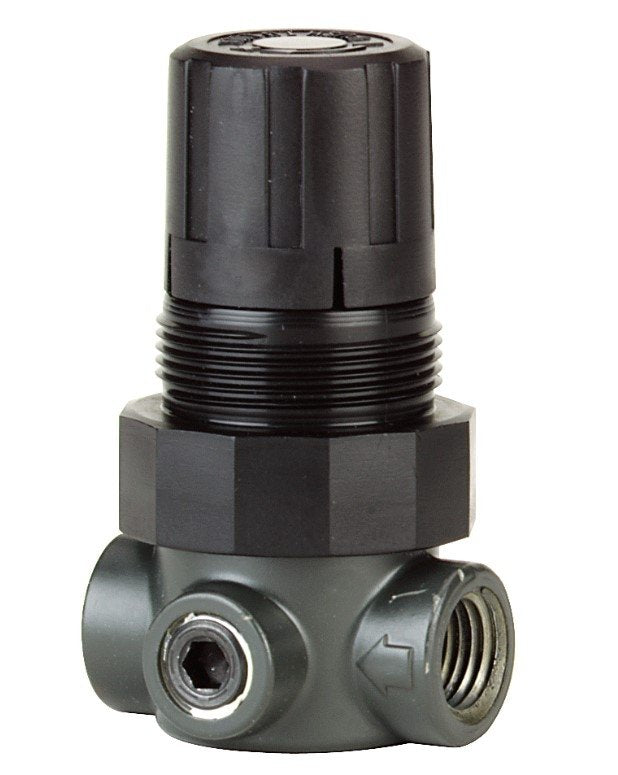

Dwyer MPR2-4 | Miniature Pressure Regulator | 0-100 psi, 1/4" NPT
Part Number : MPR2-4
Set within 0-100 psi, the Dwyer MPR2-4 is a compact pressure regulator for compressed air or air/water, with internals plated in electroless nickel for water use. The MPR2-4 low-torque, non-rising knob locks once the 0-100 psi setting is made.
- 0-100 psi output range (MPR2-4)
- MPR2-4 plated with electroless nickel for water use
- MPR2-4 flow capacity: 24 SCFM (48 m³/hr) at 100 psig supply, 60 psig output
- Two 1/4" female NPT inlet/outlet ports and two 1/8" female NPT gauge ports on the MPR2-4
- Zinc body, acetal bonnet, nitrile diaphragm and seals (MPR2-4)
- MPR2-4 operating temperature 0 to 150°F (-18 to 60°C)
Free UAE shipping available
For pricing, please contact our experts.
