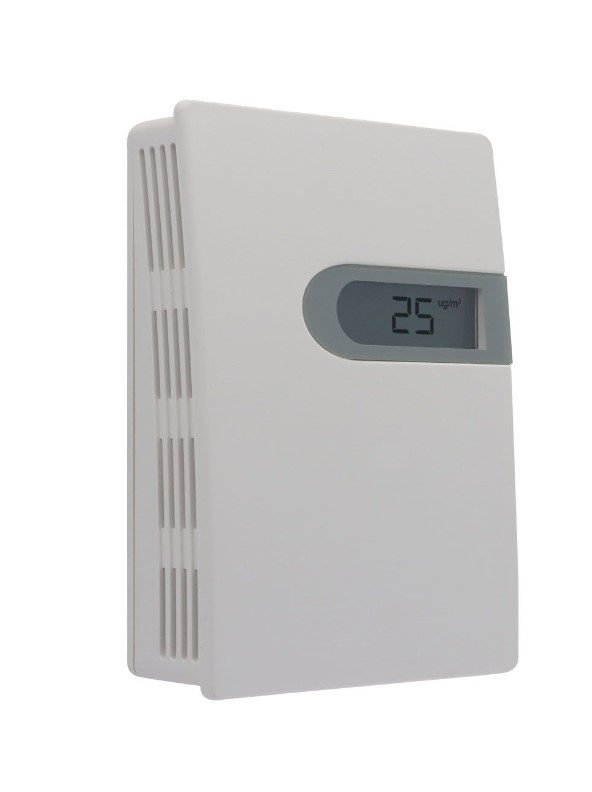

Dwyer PMI-10WC-RLY-N | Particulate Transmitter | PM10 wall mount, 4-20 mA/0-10 V, relay, Modbus
Part Number : PMI-10WC-RLY-N
The Dwyer PMI-10WC-RLY-N is a wall-mount PM10 particulate matter transmitter for indoor air quality monitoring in rooms such as offices, measuring 0-600 µg/m³ for particles of 0.3-10 µm by laser scattering. This version provides 4-20 mA, 0-10 V, an SPST relay and RS-485 Modbus RTU outputs from the PMI-10WC-RLY-N.
- Wall housing of the PMI-10WC-RLY-N: polycarbonate (UL 94 V-0), IP30, 200 g
- PMI-10WC-RLY-N supply 16-28 VAC or 6-35 VDC; operating 0 to 50°C, 0-95% RH non-condensing
- SPST relay on the PMI-10WC-RLY-N rated 3 A at 30 VDC/250 VAC
- PMI-10WC-RLY-N accuracy: ±10 µg/m³ from 0-100 µg/m³ and ±10% of reading from 100-600 µg/m³ (25°C, 50% RH)
- Resolution 1 µg/m³ and response under 10 s in continuous mode on the PMI-10WC-RLY-N
Free UAE shipping available
For pricing, please contact our experts.
