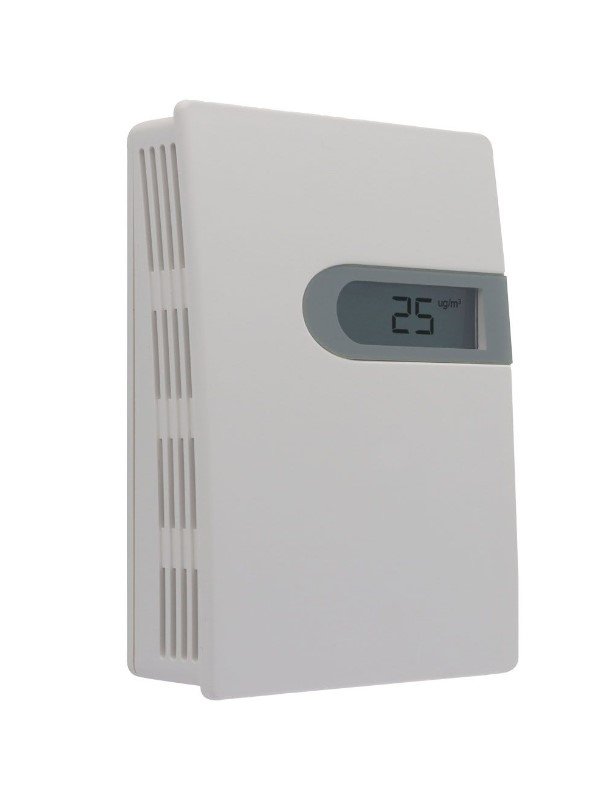

Dwyer PMI-2.5WC-N-LCD | Particulate Transmitter | PM2.5 wall mount, 4-20 mA/0-10 V, LCD, Modbus
Part Number : PMI-2.5WC-N-LCD
For indoor air quality checks in rooms such as offices, the Dwyer PMI-2.5WC-N-LCD measures PM2.5 from 0-500 µg/m³ (particle size 0.3-2.5 µm) using laser scattering in a wall-mount housing. Signals from the PMI-2.5WC-N-LCD are 4-20 mA, 0-10 V and RS-485 Modbus RTU, and it carries an LCD display.
- Resolution 1 µg/m³ and response under 10 s in continuous mode on the PMI-2.5WC-N-LCD
- Wall housing of the PMI-2.5WC-N-LCD: polycarbonate (UL 94 V-0), IP30, 200 g
- PMI-2.5WC-N-LCD supply 16-28 VAC or 6-35 VDC; operating 0 to 50°C, 0-95% RH non-condensing
- CE and UKCA approved; the PMI-2.5WC-N-LCD has an MTBF above 3 years in continuous mode
- PMI-2.5WC-N-LCD accuracy: ±10 µg/m³ from 0-100 µg/m³ and ±10% of reading from 100-600 µg/m³ (25°C, 50% RH)
