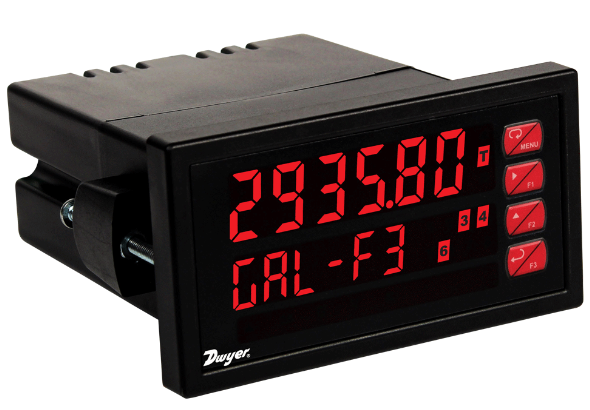

Dwyer PPM-140 | Pulse Panel Meter | 85-265 VAC, 4 relays, No Transmitter
Part Number : PPM-140
The Dwyer PPM-140 is a pulse panel meter for 85-265 VAC supply, built with four relays and no transmitter output. It accepts a pulse input and can power the connected flowmeter with 5, 10 or 24 VDC; the PPM-140 has no 4-20 mA retransmission.
- PPM-140 supply: 85-265 VAC (85 to 265 VAC 50/60 Hz or 90 to 265 VDC, 20 W max)
- Four relays on the PPM-140, rated 3 A at 30 VDC and 125/250 VAC resistive, with independent 0 to 999.9 s delays
- Dual-line 6-digit display (0.60 in and 0.46 in) with five user-selectable decimal positions on the PPM-140
- Accuracy +/-0.03% of calibrated span +/-1 count; NEMA 4X, IP65 front (PPM-140)
- Free USB programming software resident on the meter; CE, RoHS, UL and cUL approvals (PPM-140)
Free UAE shipping available
For pricing, please contact our experts.
