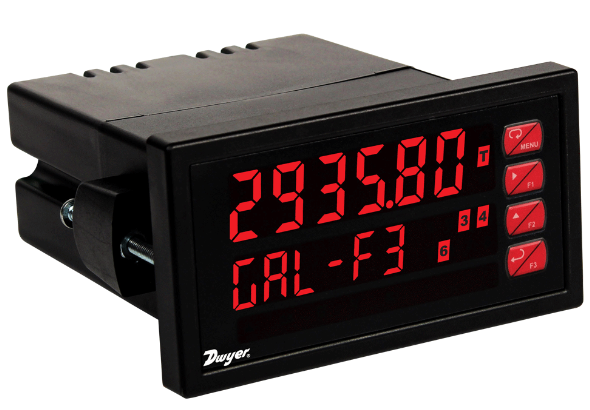

Dwyer PPM-221 | Pulse Panel Meter | 12-24 VDC, 2 relays, 4-20 mA Transmitter
Part Number : PPM-221
Built for a 12-24 VDC supply, the Dwyer PPM-221 pulse panel meter comes with two relays and a 4-20 mA transmitter output. The PPM-221 accepts a pulse input, powers the flowmeter with 5, 10 or 24 VDC, and sends 4-20 mA over long distances to a PLC.
- PPM-221 supply: 12-24 VDC (+/-10%, 15 W max)
- Two relays on the PPM-221, rated 3 A at 30 VDC and 125/250 VAC resistive, with independent 0 to 999.9 s delays
- Dual-line 6-digit display (0.60 in and 0.46 in) with five user-selectable decimal positions on the PPM-221
- NEMA 4X, IP65 front with accuracy of +/-0.03% of calibrated span +/-1 count (PPM-221)
- Free USB programming software resident on the meter; CE, RoHS, UL and cUL approvals (PPM-221)
Free UAE shipping available
For pricing, please contact our experts.
