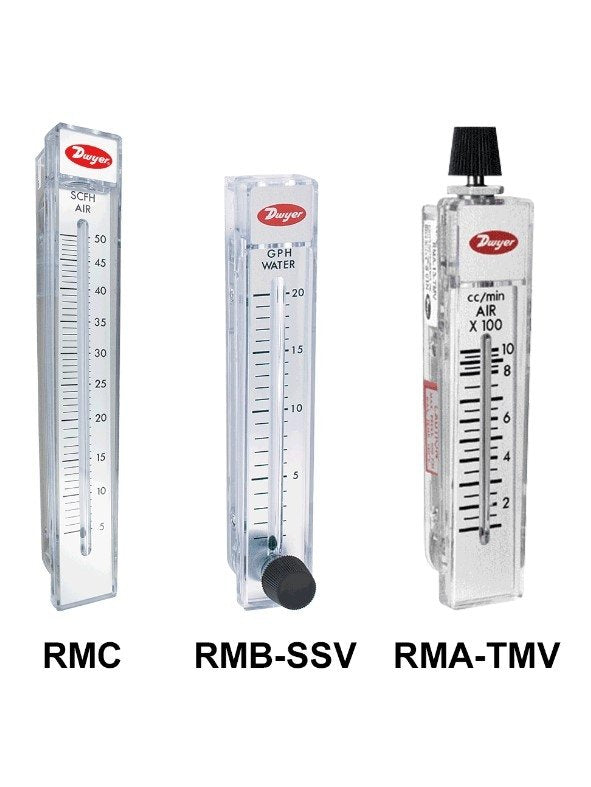

Dwyer RMB-51D-SSV | Rate-Master Flowmeter | 2-20 SCFH (1-9.5 LPM) Air, 5" Scale, Stainless Steel Valve

Part Number : RMB-51D-SSV

The Dwyer RMB-51D-SSV is a Rate-Master flowmeter that reads 2-20 SCFH (1-9.5 LPM) air directly on a 5" (127 mm) scale and comes with a stainless steel valve. Suited to general-purpose gas and liquid flow indication, the RMB-51D-SSV can be surface or panel mounted.

  • Range 2-20 SCFH (1-9.5 LPM) air on the 5" (127 mm) scale, stainless steel valve fitted
  • 3% accuracy and 1/4" female NPT process connections on the RMB-51D-SSV
  • RMB-51D-SSV rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMB-51D-SSV: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMB-51D-SSV body swaps within its 5" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 13 oz (368.5 g); the RMB-51D-SSV meets RoHS II (EU Directive 2011/65/EU)
