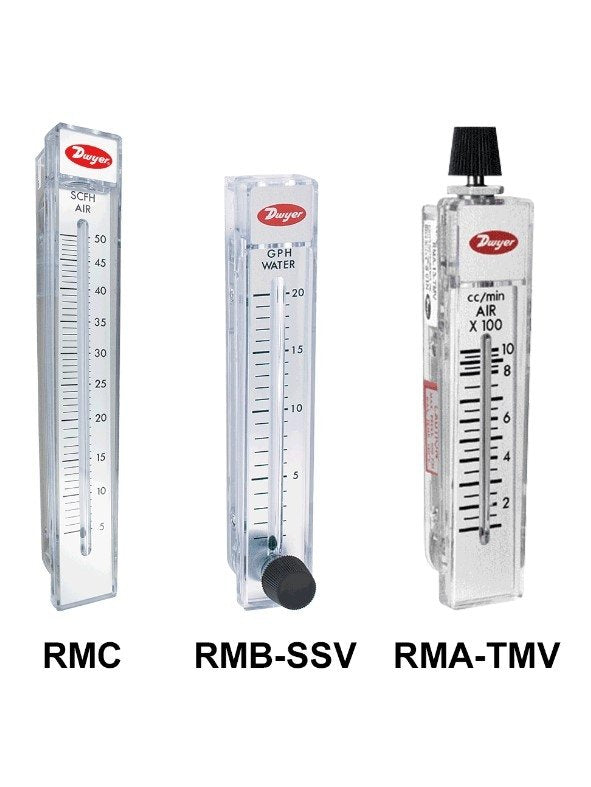

Dwyer RMB-52D | Rate-Master Flowmeter | 4-50 SCFH (2-23 LPM) Air, 5" Scale, No Valve

Part Number : RMB-52D

The Dwyer RMB-52D is a Rate-Master flowmeter that reads 4-50 SCFH (2-23 LPM) air directly on a 5" (127 mm) scale and comes without a valve. Suited to general-purpose gas and liquid flow indication, the RMB-52D can be surface or panel mounted.

  • Range 4-50 SCFH (2-23 LPM) air on the 5" (127 mm) scale, no valve fitted
  • 3% accuracy and 1/4" female NPT process connections on the RMB-52D
  • RMB-52D rated to 100 psi (6.9 bar) and 130°F (54°C) maximum operating conditions
  • Wetted parts of the RMB-52D: polycarbonate body, Neoprene/Buna-N O-rings, stainless steel metal parts
  • RMB-52D body swaps within its 5" scale size for cleaning or a range change, leaving pipework in place
  • Weighs 13 oz (368.5 g); the RMB-52D meets RoHS II (EU Directive 2011/65/EU)
Availability: low stock
Free UAE shipping available
For pricing, please contact our experts.
