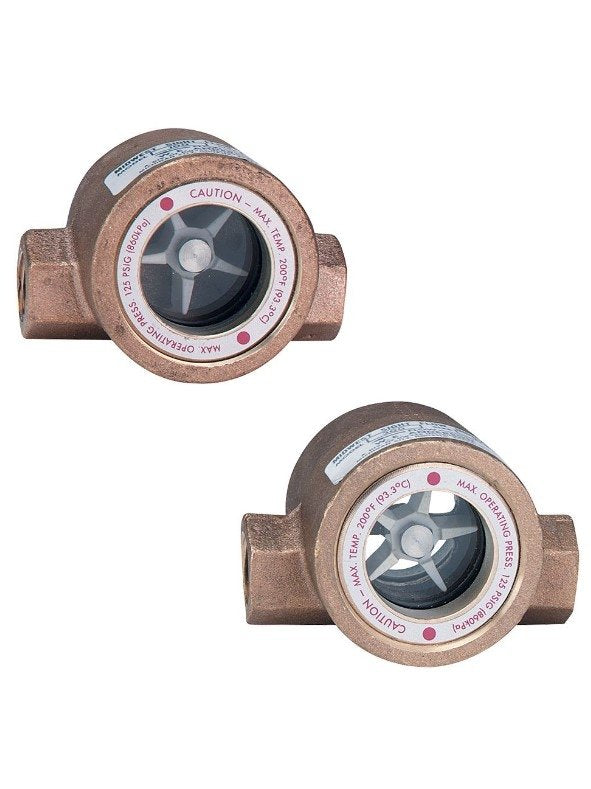

Dwyer SFI-100-1-1/2 | Sight Flow Indicator | 1-1/2" Body, Single Window, Impeller
Part Number : SFI-100-1-1/2
Dwyer SFI-100-1-1/2: a 1-1/2" sight flow indicator with threaded process connections and a single viewing window with a rotating impeller, for checking flow by eye. A removable window on the SFI-100-1-1/2 simplifies cleaning and component changes.
- 1-1/2" body measuring 5.688" (144 mm) L x 3.250" (83 mm) D x 3.625" (92 mm) H (SFI-100-1-1/2)
- SFI-100-1-1/2 weight: 5.5 lb (2.5 kg)
- SFI-100-1-1/2 pressure limit 125 psig (8.62 bar); MP models 150 psig (10.34 bar)
- SFI-100-1-1/2 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-100-1-1/2: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket, ABS or 316 SS impeller
