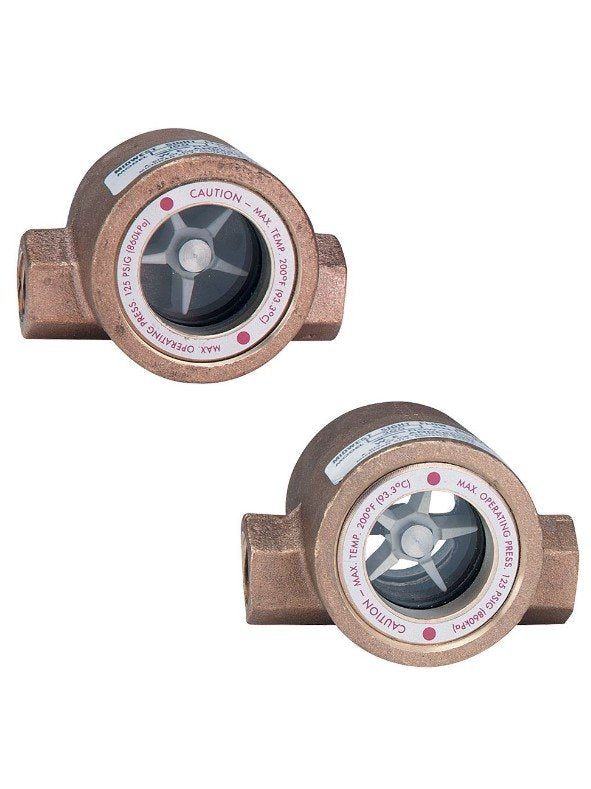

Dwyer SFI-100-1-1/4 | Sight Flow Indicator | 1-1/4" Body, Single Window, Impeller
Part Number : SFI-100-1-1/4
The Dwyer SFI-100-1-1/4 is a 1-1/4" threaded sight flow indicator with a single viewing window with a rotating impeller, letting operators see flow in the line. A removable window on the SFI-100-1-1/4 simplifies cleaning and component changes.
- 1-1/4" body measuring 4.375" (111 mm) L x 2.563" (65 mm) D x 2.625" (67 mm) H (SFI-100-1-1/4)
- SFI-100-1-1/4 weight: 2.7 lb (1.2 kg)
- SFI-100-1-1/4 pressure limit 125 psig (8.62 bar); MP models 150 psig (10.34 bar)
- SFI-100-1-1/4 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-100-1-1/4: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket, ABS or 316 SS impeller
