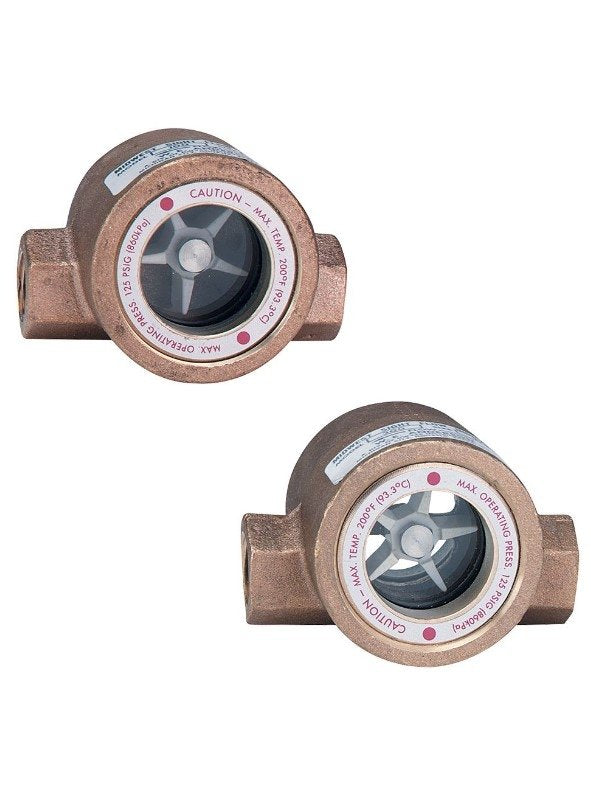

Dwyer SFI-100-1 | Sight Flow Indicator | 1" Body, Single Window, Impeller
Part Number : SFI-100-1
Dwyer SFI-100-1: a 1" sight flow indicator with threaded process connections and a single viewing window with a rotating impeller, for checking flow by eye. For servicing, the SFI-100-1 window can be removed and parts replaced.
- 1" body measuring 4.375" (111 mm) L x 2.563" (65 mm) D x 2.625" (67 mm) H (SFI-100-1)
- SFI-100-1 weight: 2.7 lb (1.2 kg)
- SFI-100-1 pressure limit 125 psig (8.62 bar); MP models 150 psig (10.34 bar)
- SFI-100-1 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-100-1: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket, ABS or 316 SS impeller
