Dwyer SFI-300-1-1/2 | Sight Flow Indicator | 1-1/2" Body, Double Window, Impeller
Part Number : SFI-300-1-1/2

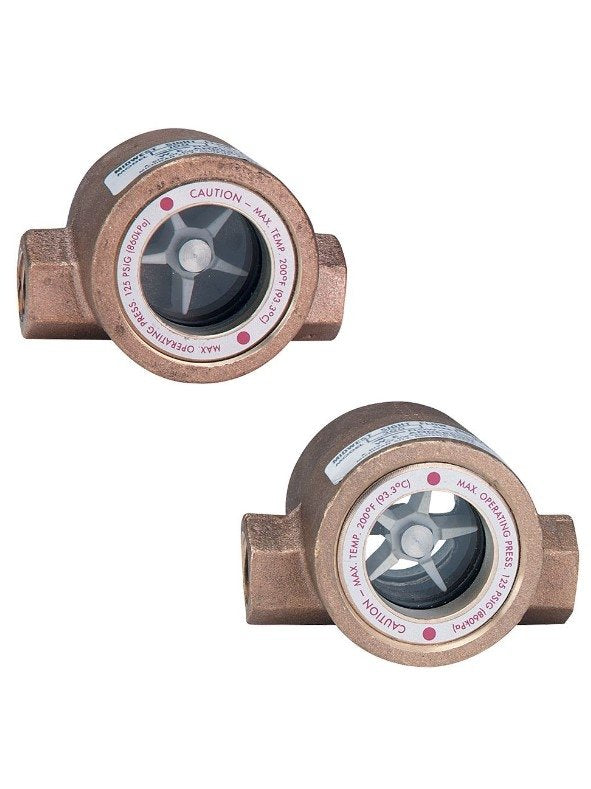

The Dwyer SFI-300-1-1/2 is a 1-1/2" threaded sight flow indicator with a double viewing window with a rotating impeller, letting operators see flow in the line. For servicing, the SFI-300-1-1/2 window can be removed and parts replaced.
- Dimensions of the 1-1/2" size: 5.500" (140 mm) long, 3.688" (93 mm) deep, 4.063" (103 mm) high (SFI-300-1-1/2)
- SFI-300-1-1/2 weight: 7.0 lb (3.2 kg)
- SFI-300-1-1/2 pressure limit 125 psig (8.62 bar); MP models 150 psig (10.34 bar)
- SFI-300-1-1/2 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-300-1-1/2: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket, ABS or 316 SS impeller
